Biomass carbonizer rotary kiln
-
Supplier: HENAN SUPERB MACHINERY CO., LTD. -
Region: Henan, China -
Contact: Ms hn Superb -
Price: $1350.00 / 1 - 1 sets
$1300.00 / >=2 sets -
Min. Order: 1 set
Product details
| Dimensions (L*W*H): | 2.85*2.1*2.1M | Processing type: | carbonization |
| Health status: | new | Warranty: | 1 year |
| Mechanical test report: | if | Supply capacity: | 500 sets per month |
| color: | customer request | Origin: | Henan, China |
| Showroom location: | Italy, Philippines, Indonesia, Mexico, Thailand, Korea, South Africa, Nigeria, Uzbekistan, Tajikistan | Core component warranty: | 1 year |
| Main selling points: | remote control | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Applicable industries: | Machinery repair shops, manufacturing plants, farms, retail, energy and mining | Used for: | making charcoal fire |
| Weight (kg): | 3000 | Key words: | charcoal recarburizer |
| Marketing Type: | New Products 2022 | brand: | superb |
| Video shipment inspection: | if | application: | manufacturing |
| Core components: | pressure vessel | Key words: | Biomass Rotary Kiln |
| Effective volume: | 5 cubic meters | port: | Qingdao, Tianjin, Shanghai or other port requirements |
| Packaging Details: | Standard export containers, bare hosts, motors and small parts are packed in wooden boxes. | product name: | Carbonization furnace |
| Advantage: | Energy saving and low residue | Model: | STHL170A |
| Advantage one: | Environmental friendly |
Product Description

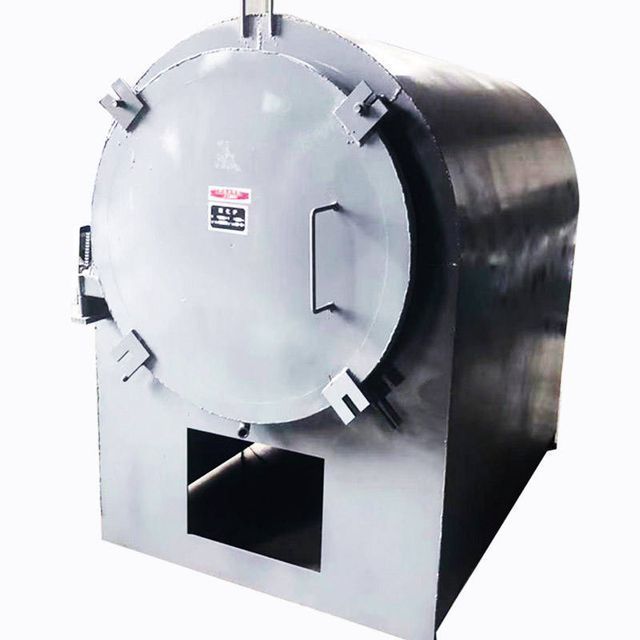

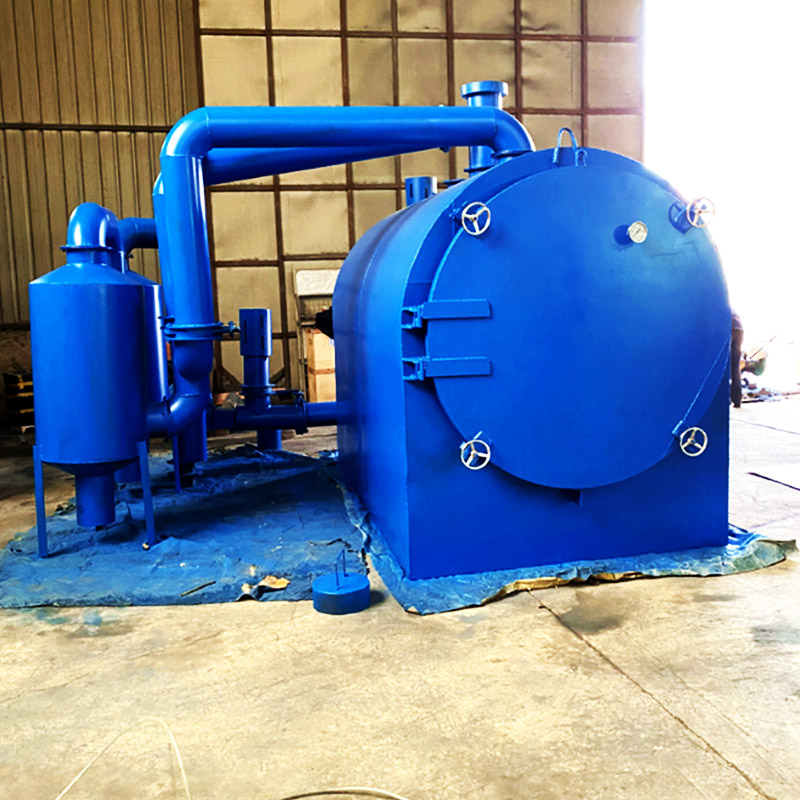

Biomass carbonization furnace kiln
introduce:It adopts advanced heat flow carbonization technology, the carbonization rate is significantly improved, and the carbonization rate reaches 99%. Moreover, the operation is very convenient, the safety is good, the production efficiency is high, a large amount of energy can be saved, and the environmental protection performance is good. It can also divert flue gas from dry-fired boilers, etc. It is the most advanced carbonization furnace in the world at present, which truly realizes charcoal, gas and oil series equipment.
Product advantages
Features:1). The carbonization furnace adopts a horizontal manufacturing process. The carbonization furnace has a three-layer structure, and the middle is made of light insulation materials, which can maintain the temperature in the furnace at all times.
2). The furnace door is sealed with packing, no air is admitted, and the carbon output is much higher than that of conventional carbonization furnaces.
3). The reason why it is called a green carbonization furnace is that the wood rod will produce a lot of light during the carbonization process
Yellow flammable gas. These gases pass through the carbonization furnace with its own pipeline to divert the combustible gas to
The combustion zone of the carbonization furnace is heated by a secondary fire. More environmentally friendly and more fuel-efficient.
Yellow flammable gas. These gases pass through the carbonization furnace with its own pipeline to divert the combustible gas to
The combustion zone of the carbonization furnace is heated by a secondary fire. More environmentally friendly and more fuel-efficient.
4) The residual gas from the carbonization furnace can be used to dry sawdust or burn boilers.
5). The cooling time from the carbonization furnace to the final carbon is shorter. We use the natural cooling interlayer gap of the unit water-cooled carbonization furnace, which is more efficient and convenient.
6). Environmentally friendly air carbonization furnace is equipped with track and kiln car, which is more convenient to use
Convenience, reduce labor intensity of workers.
Convenience, reduce labor intensity of workers.
Customers purchase this kind of carbonization furnace, which is really simple, labor-saving, convenient to load and discharge carbon, greatly shorten the cooling time, and greatly increase the output of the carbonization furnace.
application
It can use different materials as heat source. Such as firewood/coal gas/natural gas/liquefied petroleum gas/combustible gas (generated during carbonization)
Specification
Model | STHL120 | STHL170A | STHL170B | STHL190 | |||
capacity | 2000kg/24 hours | 4000kg/24 hours | 7000kg/24 hours | 10500 kg/24 hours | |||
aspect | 2.86*1.6*2.1m | 2.85*2.1*2.1m | 4.6*2.1*2.1m | 5.5*2.2*2.2m | |||
weight | 1.68 tons | 3 tons | 3.5 tons | 6.8 tons | |||
Inner pot diameter | 1.2m | 1.7m | 1.7m | 1.9m | |||
Inner pot length | 2.6m | 2.2 meters | 4.4m | 5.3m | |||
volume | 3 cubic meters | 5 cubic meters | 10 cubic meters | 15 cubic meters | |||
carbonization | 6-8 hours | ||||||
Carbonization furnace can be customized according to customer requirements. (material and process)
