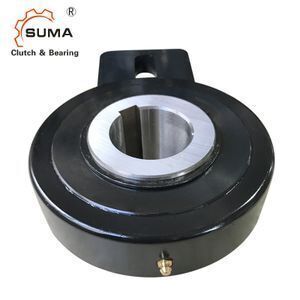

RSBW 50 RSBW50 One Way Sprag Cam Clutch Backstop Bearings

Product details
Accept Environments:difficult environments such as high humidity or water splash areas;Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Printing Shops,Construction works ,Energy & Mining;
Single gross weight:5.0 KG;Lubricated:Grease Lubricated;
Brand Name:SUMA or OEM;Packaging Detail:Carton box, wooden case or as your requirements;
Weight:4.6KG;Package:Carton Box / Wooden Box;
OEM:accept;Product name:Sprag Backstop Bearings;
Installation:either a horizontal or vertical position;Place of Origin:Jiangsu China;
Nominal Torque (N.m):1295;Single package size:20X18X15 cm;
Selling Units:Single item;Delivery:7-10 Days;

 RSBW 40 sprag clutch, backstop cam clutch , one way freewheel bearing





Product Description



Features of RSBW40 Sprag freewheel clutch

Structure: RSBW one way clutch bearing is a sprag type freewheel. It is self-contained, centered by plain bearings for low rotational speeds, and sealed using shield protected metallic labyrinth seals.

Application: Primarily used as backstop

Package detail: radial spherical plain bearings are delivered grease lubricated, ready to install in a vertical or horizontal position.

Caution: the torque arm and bearings must not be pretressed.



Product name

One way clutch bearings

Model

RSBW40

Torque capacity

1295Nm

Overrunning speeds

300 min -1

Inner diameter

45mm

Outer diameter

132mm

Material

GCr15

Thickness

52mm

Weight

4.6kg

Application

Fishinery machinery, Reducer, household appliances

Package

Carton Box

Payment terms

TT, L/C, D/A, D/P, Western Union

Delivery time

5-7 days after order confirmed if no stock

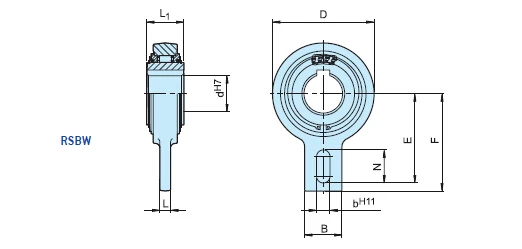

Catalogue of RSBW45 One way clutch bearings for your choice

+
Type Size Torque Overrunning Speeds DIMENSIONS Weight
RSBW dH7 TKN1) nimax D L 1 F E B N L bH11
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
20 375 400 106 35 113 102.5 40 35 15 18 2
25 606 400 106 48 113 102.5 40 35 15 18 2.6
30 606 400 106 48 113 102.5 40 35 15 18 2.5
35M  375 400 106 35 113 102.5 40 35 15 18 2
35 606 400 106 48 113 102.5 40 35 15 18 2.4
40 1295 300 132 52 125 115 60 35 15 18 4.6
45 1295 300 132 52 125 115 60 35 15 18 4.5
50 1295 300 132 52 125 115 60 35 15 18 4.5
55 1295 300 132 52 125 115 60 35 15 18 4.4
60 2550 250 161 54 140 130 70 35 15 18 6.5
70 2550 250 161 54 140 130 70 35 15 18 6.4
80 4875 200 190 70 165 150 70 45 20 25 9.9
90 4875 200 190 70 165 150 70 45 20 25 9.8

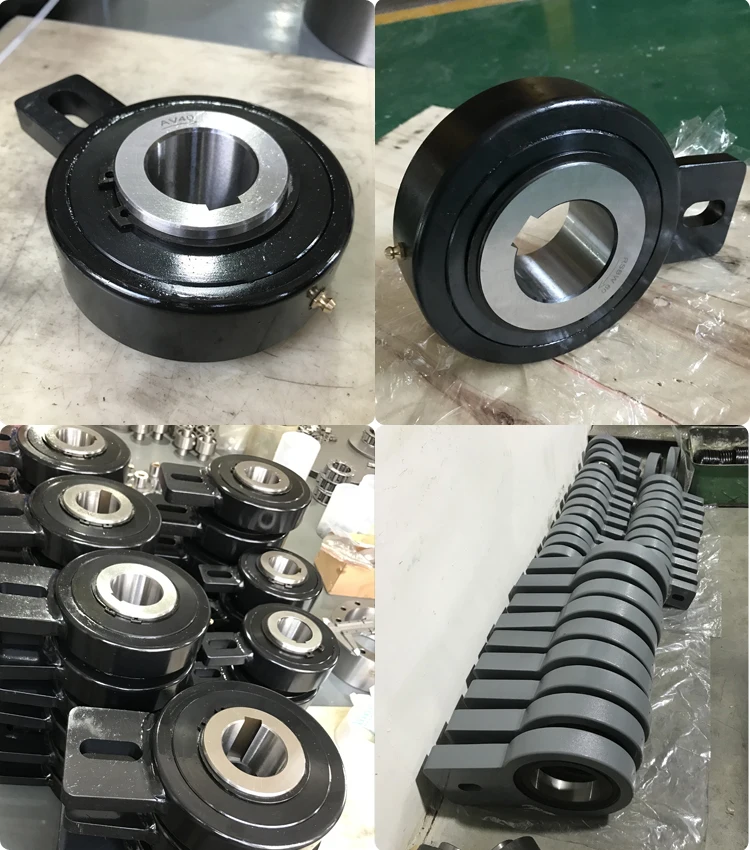

Detailed Images





Company Information



Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various One way bearing, One way clutch, Backstop clutch, Overrunning clutch, Needle roller bearing and other bearings with high technology.

Production Flow 1

FAQ

Q: How do you pack the goods?

  •  Total less than 25 KG :  Each in white box + 19*18*9cm box + 29*28*19CM carton box
  •  Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A:  It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  •    Small items: In stock.
  •     Medium Items: 10-15 Days
  •     Big items: 20-25 Days
