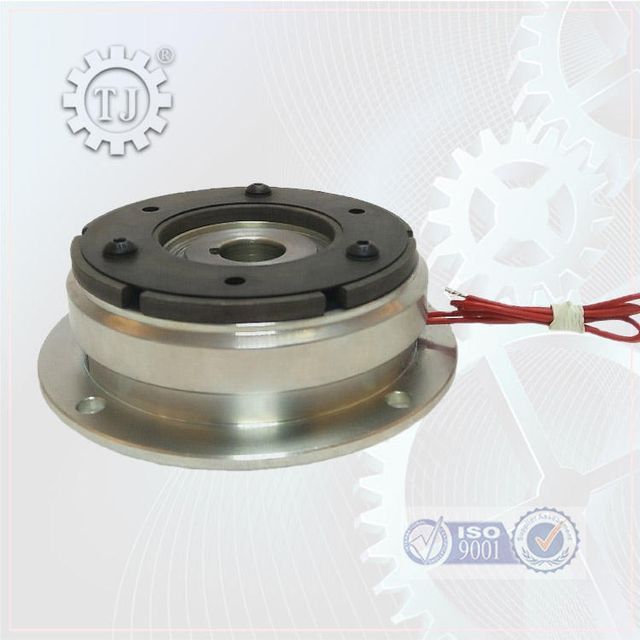

China factory 24v single plate dry electromagnetic clutch

Supplier: Dongguan Taiji Speed Reducer Clutch Co., Ltd.
Region: Guangdong, China
Contact: Ms Emily li
Price: $58.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Customization support:	OEM, ODM	Packaging details:	Carton or wooden box, or according to customer requirements
Material:	iron or aluminum	Place of origin:	Guangdong, China
Applicable industries:	Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Household Use, Retail, Food Stores, Print Shops, Construction Engineering, Energy and Mining, Food and Beverage Stores, Woodworking Machinery	project name:	Electromagnetic clutch
Supply capacity:	8,000 sets per month	Static friction torque (Nm):	0.55-35NM
brand:	Tianji	strength:	11~60 watts
Voltage:	DC 24V	use:	Printing machinery, packaging machinery, textile machinery
Dynamic friction torque (Nm):	0.5-32NM	Model:	TJ-A-0.6
port:	Shenzhen/Guangzhou/Shanghai/Hong Kong	payment terms:	L/C, Western Union, T/T, MoneyGram, PayPal
delivery time:	3~7 days	Warranty:	1 year

24v China factory dry single plate mechanical electromagnetic clutch

Taiwan Brand-Tianji

Dongguan Taiji Reduction Clutch Co., Ltd.

Reliable quality, reasonable price and considerate service.

Any emails will be replied within 24 hours. thank you for your time!

Product Description

We are a factory in Dongguan specializing in the production of mechanical transmission parts. We are briefly listed below for your reference:

1. Magnetic powder clutch and brake series

2. Tension controller series: manual tension controller, automatic tension controller.

3. Air expansion shaft and air adapter series

4.Safety chuck series

5. Edge positioning system series

6. Air brake and clutch series

7.Electromagnetic clutch and brake series

8. Worm gear reducer and motor series

Product Details

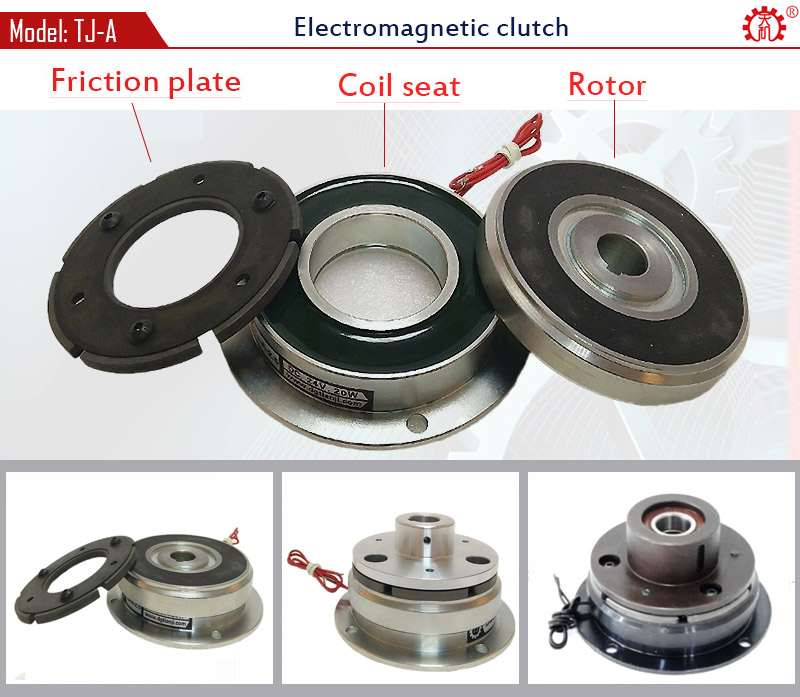

Single plate electromagnetic clutch brief introduction:

This clutch product is designed by professional engineers with many years of experience and produced using CNC boring machines and finishing machine tools, making it durable.

We use the highest quality magnetic component materials to produce a high friction index and a premium asbestos-free lining to improve response time and extend operating life.

We will be your reliable clutch supplier.

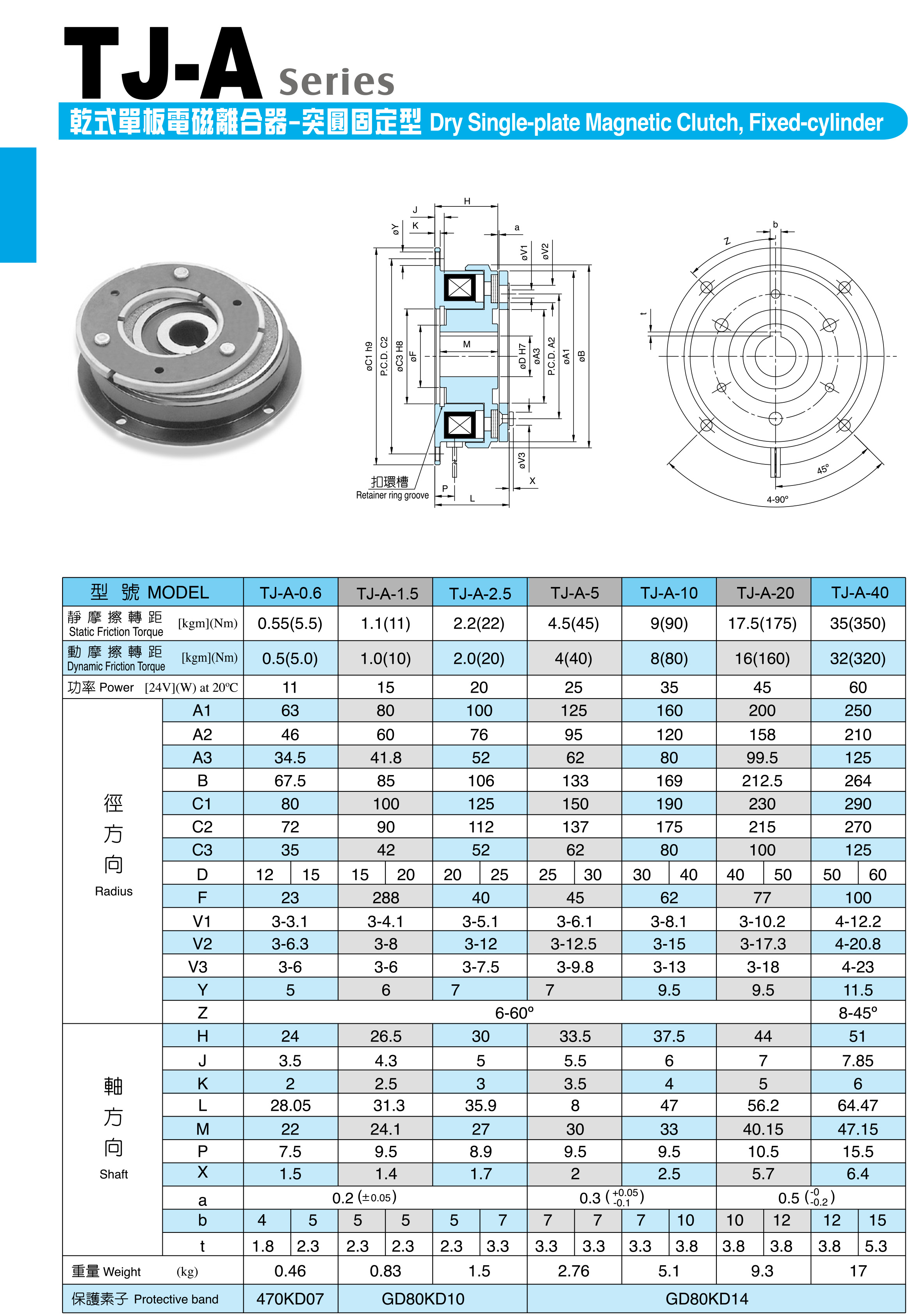

Single plate electromagnetic clutch parameters:
Model	TJ-A-0.6	TJ-A-1.5	TJ-A-2.5	TJ-A-5	TJ-A-10	TJ-A-20	TJ-A-40
Static friction torque (Nm)	5.5	11	twenty two	45	90	175	350
Dynamic friction torque (Nm)	5	10	20	40	80	160	320
Power (watt) 24V 20℃	11	15	20	25	35	45	60
Weight (kg)	0.46	0.83	1.5	2.76	5.1	9.3	number 17

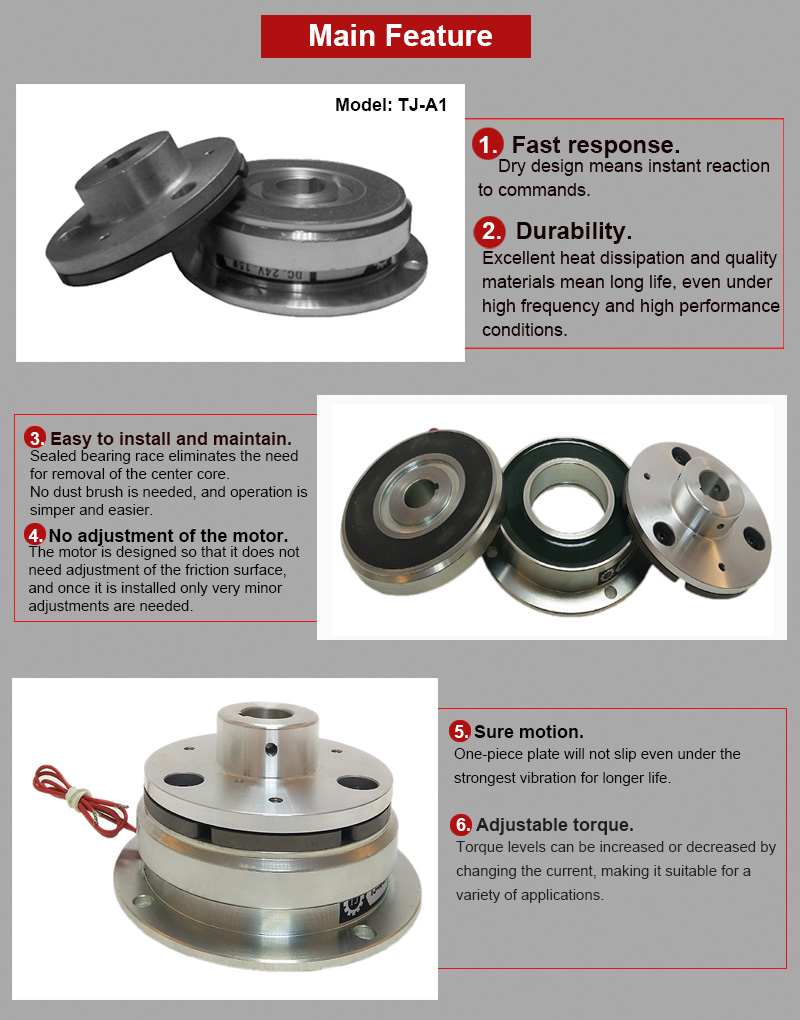

Electromagnetic clutch features:
1. High-speed response: Because it is a dry type, the torque is transmitted quickly, allowing convenient movements.
2. Strong durability: It has good heat dissipation and uses advanced materials. It is very durable even if it is used at high frequency and high energy.
3. Easy assembly and maintenance: The magnetic field coil is built into the ball bearing and is static, so there is no need to remove the center core or use carbon brushes, making it easy to use.
4. The action is reliable: it adopts plate-shaped shrapnel, which will not loosen even if there is strong vibration, and has good durability.
