24V DC 12V Electromagnetic Clutch Motor Clutch For Bag Making Machine

Supplier: Dongguan Taiji Speed Reducer Clutch Co., Ltd.
Region: Guangdong, China
Contact: Ms Emily li
Price: $25.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Marketing Type:	Hot Products of 2022	Electromagnetic clutch use:	Packaging / Textile / Paper
Mechanical test report:	if	Supply capacity:	8000 units per month or according to customer requirements
Packaging Details:	Carton and wooden box or according to customer requirements	Core component warranty:	1 year
Electromagnetic clutch MQO:	1	Dynamic Friction Moment:	320 nautical miles
Magnetic clutch voltage:	DC24v	port:	Shenzhen/Guangzhou/Shanghai/Hong Kong
Static friction moment:	350 Nm	Health status:	new
Origin:	Guangdong, China	Electromagnetic Clutch Color:	Silver Black
Manufacturing experience:	14 years	Electromagnetic clutch material:	iron or aluminum
Weight (kg):	2	Warranty:	1.5 years
payment terms:	L/C, Western Union, T/T, MoneyGram, PayPal	product name:	Electromagnetic brake
brand:	Tian Ji	Showroom location:	U.S.
Core components:	Bearings, coil holders	Electromagnetic clutch power:	45w
Video shipment inspection:	if	Applicable industries:	Hotels, clothing stores, building supplies stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, print shops, construction, energy and mining, food and beverage stores, advertising agencies

We are a Dongguan factory specializing in the production of mechanical transmission parts. A brief list is as follows for your reference:

1. Magnetic powder clutch and brake series
2. Tension controller series: manual tension controller, automatic tension controller.
3. Air shaft and air joint series
4. Safety chuck series
5. Edge positioning system series
6. Air brake and clutch series
7. Electromagnetic clutch brake series
8. Worm reducer and motor series

Product Description

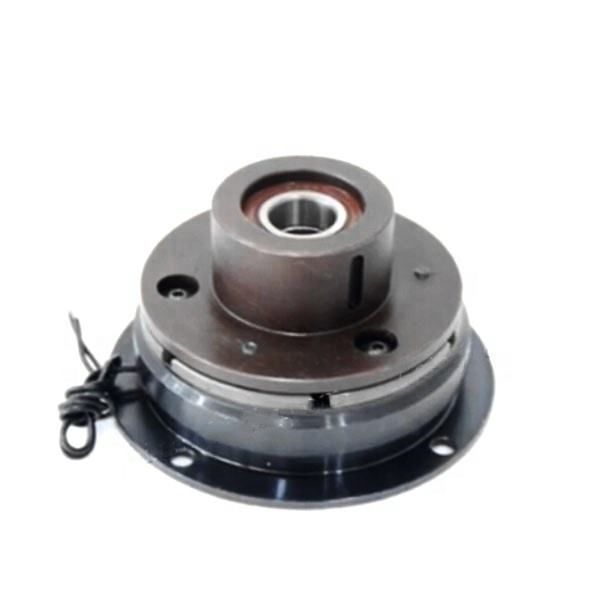

Introduction to Electromagnetic Clutch (Dry Single Plate Electromagnetic Clutch)

The clutch product is designed by professional engineers with many years of experience, and is produced by CNC boring and finishing machine tools, which is durable.

We use the best magnetic element materials to produce a high friction index, and premium non-asbestos linings to improve response time and extend operating life.

Electromagnetic clutch for pipe making machine and winding machine, 0.6kg, torque 5nm, with bearing

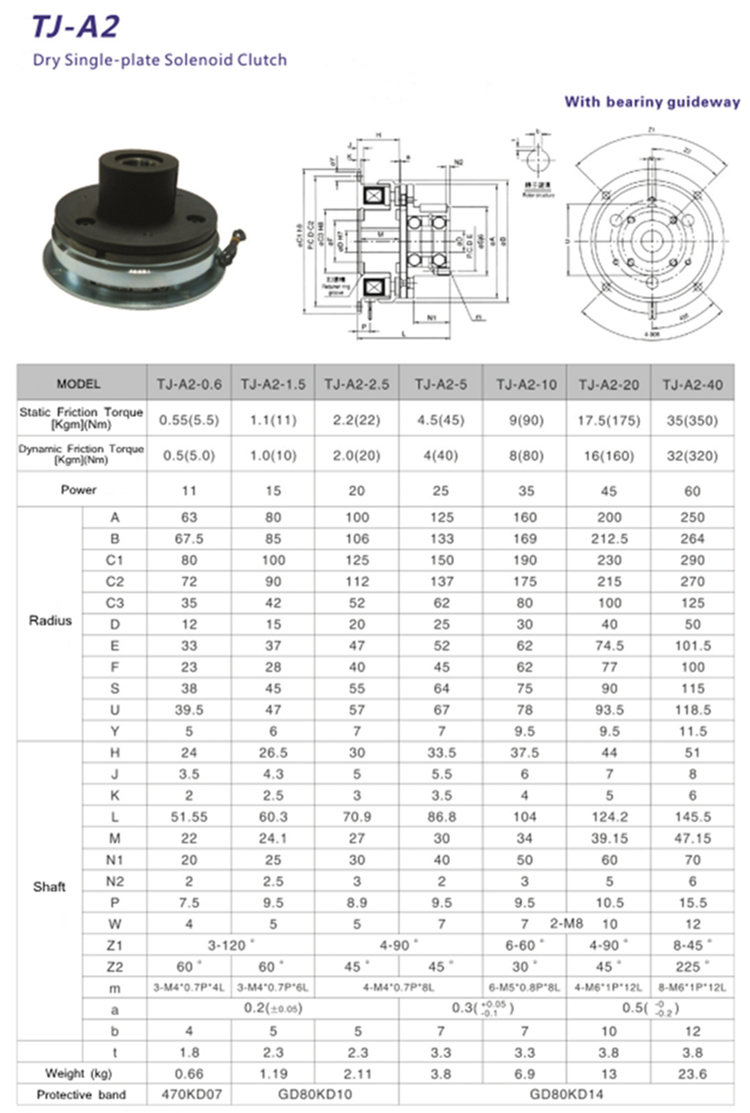

Electromagnetic clutch parameter TJ-A2

Model	TJ-A2-0.6	TJ-A2-1.5	TJ-A2-2.5	TJ-A2-5	TJ-A2-10	TJ-A2-20	TJ-A2-40
Static friction moment (Nm)	5.5	11	twenty two	45	Post-90s	175	350
Dynamic friction moment (Nm)	5	10	20	40	80	160	320
Power (W) 24V 20°C	11	15	20	25	35	45	60
Weight (kg)	0.46	0.83	1.5	2.76	5.1	9.3	17
