Industrial brake air pipe disc clutch brake ATD330H low inertia brake

Click here to contact
Product details
color:Customer requirementspayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Supply capacity:1,000 sets per monthport:Qingdao/Tianjin
Core component warranty:1 yeartype:disc clutch brake
Mechanical test report:ifWeight (kg):200
Package preview:Showroom location:not any
product name:Tracheal brakeHealth status:new
Place of origin:Henan, ChinaMarketing type:2020 new products
Packaging details:Sturdy carton, wooden box or according to customer's requirementsapplication:mechanical
brand:RuflexSpecification:ATD330
Certification:ISO9001Applicable industries:Building material stores, manufacturing plants, machinery repair shops, food and beverage plants, print shops, construction engineering, energy and mining
Warranty:1 year, 1.5 yearsCore components:WCB brake
Video outbound inspection:if
Product Description

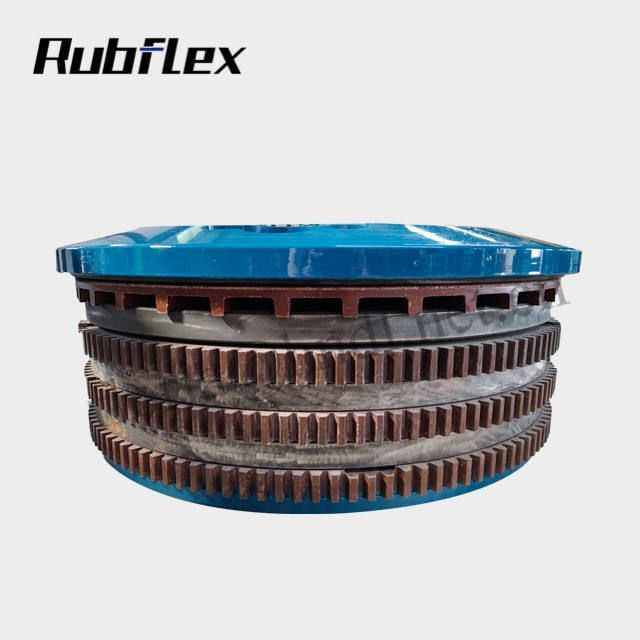

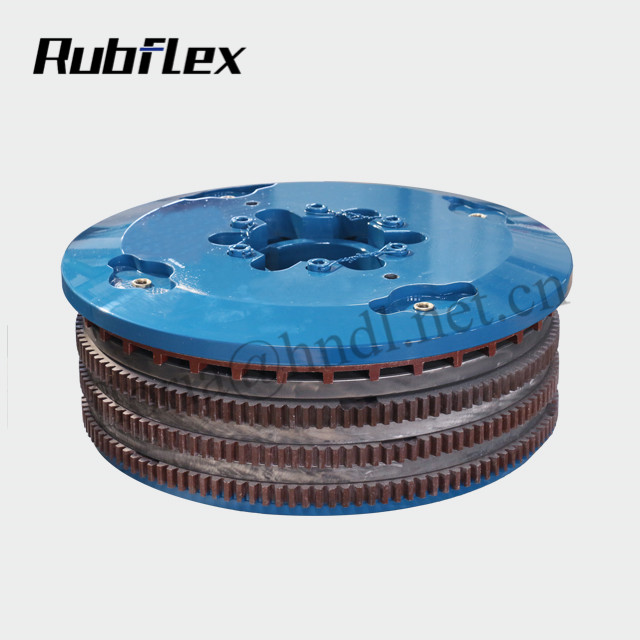

The Rubflex Air Tube Disc Clutch combines all the best features of a disc clutch with all the benefits of direct air engagement. The simplest and most trouble-free method of applying air pressure is to apply axial pressure directly by compressed air in a specially assembled full-circle tube.

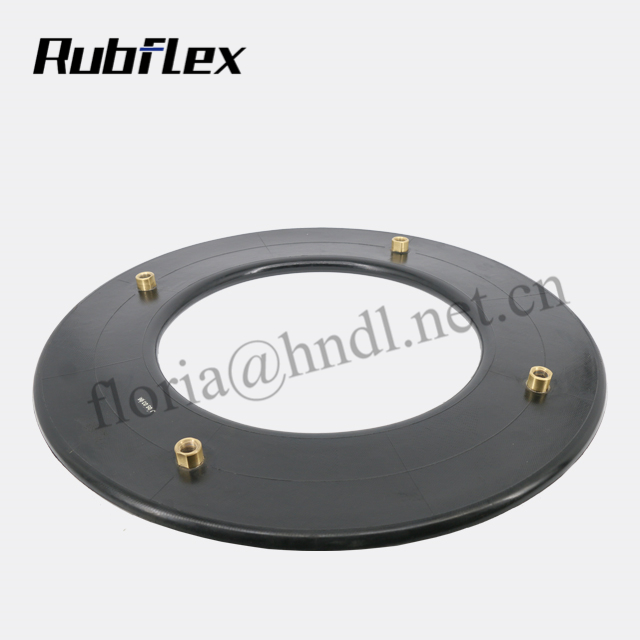

The disc clutch air pipe used for heavy-duty clutches consists of a metal valve, outer rubber lining, cord and inner rubber lining. The rubber air pipe is widely used in clutches.
Clutches for oil equipment, drilling rigs, winches, mooring winches, paper mills, steel service centers, etc.
Our trachea has passed ISO9001:2008 international quality system certification, and we have long-term cooperation with customers in the United States, Britain, Russia, and the Middle East.

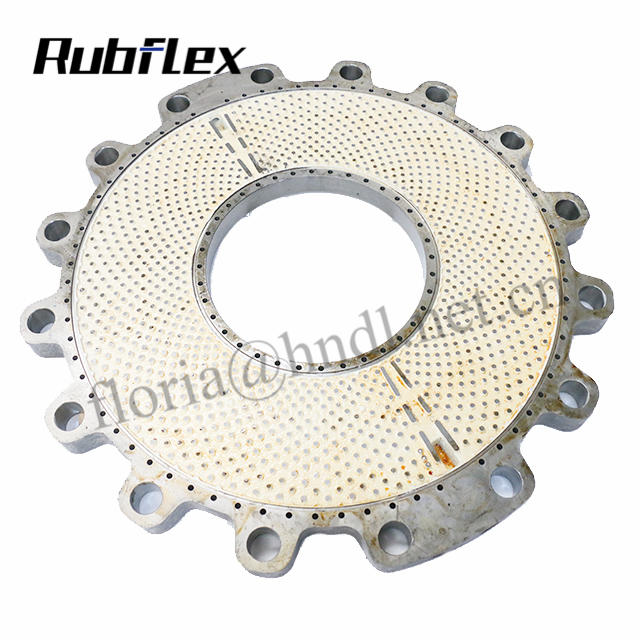

pressure plate
Our company supplies various WPT center panels. Available in various sizes and styles. Ductile iron material provided
Excellent product performance.
Kickboard
Floating plates are designed for continuous high frequency applications. The design offers low inertia and high ventilation performance.
Specification
size
A
Second
quantity
C
D
Second
108
10 3/8(263.53)
9.625(244.48)
6
8.872(225.35)
8(203.21)
2 3/4(69.85)
208
10 3/8(263.53)
9.625(244.48)
6
8.872(225.35)
8(203.21)
4 1/8(104.75)
308
10 3/8(263.53)
9.625(244.48)
6
8.872(225.35)
8(203.21)
5 1/2(139.7)
111
14 3/8(365.13)
13 3/8(339.73)
8
12.375(314.33)
11(279.4)
3(76.20)
211
14 3/8(365.13)
13 3/8(339.73)
8
12.375(314.33)
11(279.4)
4 1/4(107.95)
311
14 3/8(365.13)
13 3/8(339.73)
8
12.375(314.33)
11(279.4)
5 9/16(141.29)
114
17 1/2(444.5)
16 1/4(412.75)
6
15.125(384.18)
14(355.6)
4 5/16(109.54)
214
17 1/2(444.5)
16 1/4(412.75)
6
15.125(384.18)
14(355.6)
5 3/4(146.05)
314
17 1/2(444.5)
16 1/4(412.75)
6
15.125(384.18)
14(355.6)
7 3/16(182.56)
114 hours
17 1/2(444.5)
16 1/4(412.75)
6
15.125(384.18)
14(355.6)
4 5/16(109.54)
214 hours
17 1/2(444.5)
16 1/4(412.75)
6
15.125(384.18)
14(355.6)
5 3/4(146.05)
314H
17 1/2(444.5)
16 1/4(412.75)
6
15.125(384.18)
14(355.6)
7 3/16(182.56)
116
20(508)
18 3/4(476.25)
6
17.500(444.5)
16(406.4)
4 5/16(109.54)
216
20(508)
18 3/4(476.25)
6
17.500(444.5)
16(406.4)
5 3/4(146.05)
316
20(508)
18 3/4(476.25)
6
17.500(444.5)
16(406.4)
7 1/4(184.15)
118
22(558.8)
20 3/4(527.05)
6
19.500(495.3)
18(457.2)
4 3/4(120.65)
218
22(558.8)
20 3/4(527.05)
6
19.500(495.3)
18(457.2)
6 1/4(158.75)
318
22(558.8)
20 3/4(527.05)
6
19.500(495.3)
18(457.2)
7 3/4(196.85)
118 hours
22(558.8)
20 3/4(527.05)
6
19.500(495.3)
18(457.2)
4 3/4(120.65)
218 hours
22(558.8)
20 3/4(527.05)
6
19.500(495.3)
18(457.2)
6 1/4(158.75)
318H
22(558.8)
20 3/4(527.05)
6
19.500(495.3)
18(457.2)
7 3/4(196.85)
121
25(635)
23 3/4(603.25)
6
22.500(571.5)
21(533.4)
5 7/8(149.23)
221
25(635)
23 3/4(603.25)
6
22.500(571.5)
21(533.4)
7 1/4(184.15)
321
25(635)
23 3/4(603.25)
6
22.500(571.5)
21(533.4)
8 5/8(219.08)
124 hours
28(711.2)
26 3/4(679.45)
6
25.500(647.7)
24(609.6)
5 7/8(149.23)
224 hours
28(711.2)
26 3/4(679.45)
6
25.500(647.7)
24(609.6)
7 1/4(184.15)
324 hours
28(711.2)
26 3/4(679.45)
6
25.500(647.7)
24(609.6)
9 3/8(238.13)
124SHD
28(711.2)
26 3/4(679.45)
6
25.500(647.7)
24(609.6)
5 7/8(149.23)
224SHD
28(711.2)
26 3/4(679.45)
6
25.500(647.7)
24(609.6)
7 1/4(184.15)
324SHD
28(711.2)
26 3/4(679.45)
6
25.500(647.7)
24(609.6)
9 3/8(238.13)
