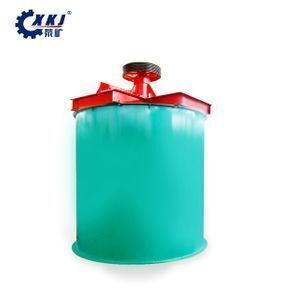

Double Impeller acid resistant gold slurry mixing tank for sale

Supplier: Henan Xingyang Mining Machinery Manufactory
Region: Henan, China
Contact: Ms Lisa Chu
Price: $1888.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 Year;	Motor:	Chinese famous brand;
Application:	Mineral Leaching Process;	Motor Type:	AC Motor;
Market:	India, Europe;	Material:	Carbon steel;
Applicable Industries:	Energy & Mining;	Installation:	Under Engineer's Guide;
Dimension(LWH):	Diffirent Model;	Spare parts supply:	Lifelong Time;
Mixer Type:	Double Impeller;	Brand Name:	XKJ;
Place of Origin:	Henan China;	Certification:	ISO;
After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Engineers available to service machinery overseas;	Supply Ability:	30 Set/Sets per Month;
Production Capacity:	99%;	Packaging Detail:	wooden crate, steel plate case or clients' request;
Name:	acid resistant gold slurry mixing tank;	Condition:	New;
Color:	Customizable;	Type:	Leaching Tank;
After sale Service:	Life-long Service;	Port:	Qingdao, Tianjin, Shanghai, Guangzhou, or as request;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

Product introduction

Leaching tank is used for mixing pulp before the flotation process, increase the reaction time of the reagent and strengthen the quality of the reagent reaction. This machine is suitable to be used in ore beneficiation industry and also for stirring the ingredients in all various industries.

Product Features

1. Strong agitating capacity and Low consumption

2. Easy maintenance and outstanding mixing performance

3. High mixing and circulating ability

4.Imporved cycling effect and completely mixing pulp and medicine

Working principle

When the machine working, the impeller rotates which is driven by the V-Belt. The pulp and medicine take circular motion , so that get mixed evenly in the whole tank ,and the mixed suspension liquid discharges from the overflow part.

Performance parameters

Model	Tank inner diameter (mm)	Tank inner height (mm)	Effective volume (m3)	Impeller RPM (r/min)	Impeller diameter (mm)	Motor model	Motor power (kw)	Dimension (LWH)(mm)	Weight(t)
XB-1000	1000	1000	0.58	530	255	Y100L-6	1.5	117311381491	1.0
XB-1200	1200	1200	1.4	340	400	Y132S-6	2.2	135413101742	1.1
XB-1500	1500	1500	2.2	320	400	Y132S-6	3	165615722171	1.2
XB-2000	2000	2000	5.6	290	550	Y132M2-6	5.5	238021622850	2.3
XB-2500	2500	2500	11.2	280	650	Y180L-6	15	303627163543	3.4
XB-3000	3000	3000	19.1	210	700	Y255S-8	18.5	360432164250	4.9
XB-3550	3550	3550	30	230	850	Y255M-8	22	394037555386	7.3
XB-4500	4550	4550	38	122	1000	Y280M-8	45	472048006600	9.7

Detailed images

Successful cases

Why choose us

Henan xingyang mining machinery co., LTD is professional manufacturer of crusher and powder making equipment. It is a major production and export base of sand-stone and powder making machinery in China.

Why choose us:

1.Boasts its 40000 square meters production base
2.more than 20 years industry experience
3.Owns complete modernized processing equipment
4.Professional engineers and after-sales service team
5.Passed ISO and CE Certificate
6.Exported to more than 40 countries

Warmly welcome you to visit our factory !!!

Send Message or Chat Now for Latest price!!!

Tips: please show me your material and capacity to become our quality clients which will have 5%-10% discount

please tell me the following questions, so we can send you accurate quotation with additional discount:

♥ What is the raw materials you will process(such as Limestone, pebble, gypsum, gold ore)?

♥ What is capacity you want tons per hour? such as 2TPH, 10TPH, 20TPH.

♥ Your email address or phone number

Now, leave a message and we'll contact you right away !!!

↓↓↓↓
