Manufacturer of gravity copper ore ore slurry

Supplier: Henan Xingyang Mining Machinery Manufactory
Region: Henan, China
Contact: Ms Lisa Chu
Price: $8000.00 / 1 - 9 sets
$7000.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

color:	according to your request	Warranty:	12 months
Supply capacity:	100 sets per month	application:	metallurgy, chemical industry, coal
type:	Mining Thickener	Production capacity:	1.3-250t/d
Motor Type:	AC motor	Mechanical test report:	if
technology:	30 years of experienced technical support	Dimensions (LWH):	Reference Specifications
Weight (kg):	1000	Technical Services:	whole service life
Core components:	PLC, engine, bearing, gearbox, motor, gear, pump	Packaging Details:	Standard export containers, bare metal, motors and small parts are packed in wooden boxes
Core Components Warranty:	1.5 years	place of origin; place of origin:	Henan, China
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	structure:	reasonable
Product supply:	14. Crusher, grinder, mineral processing equipment	expert:	More than 80 senior engineering and technical personnel
market:	Africa, Europe, Asia, etc.	Applicable industries:	Building Materials Stores, Manufacturing Plants, Construction Engineering, Energy & Mining
factory:	factory	Video external inspection:	if
port:	Qingdao, Tianjin, Shanghai, etc.	Install:	23. Under the guidance of technical staff
brand:	New Kangjie	Marketing Type:	New Products 2020
Health status:	new	Showroom location:	Vietnam, Philippines, Brazil, Peru, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, South Korea, Chile, UAE, Ukraine, Nigeria, Malaysia, Australia
price:	price

We are a professional mining machinery manufacturer specializing in:

1. Crushing plant
2. Sand making factory
3. Grinding Plant
4. Concentrator
5. Cement production line
If you are interested in us, please email us and we will give you the factory price for the full specification.

Product Description

Introduction and application of gravity type gold-copper mine mineral thickener manufacturers

The thickener produced by our company is suitable for dewatering of concentrate and tailings in the concentrator, which can concentrate the pulp from 20-30% to about 40-70%.

Thickeners for mineral processing are widely used in mining, coal, metallurgy, chemical industry, building materials, non-metallic mineral processing, environmental protection and other industries.Treatment of Slurry and Wastewater.

Characteristics of Gravity Gold Copper Ore Mineral Thickener Manufacturers

(1) Add flocculant to increase the particle size of falling solid particles and accelerate the falling process.
(2) Install the inclined plate to shorten the falling distance of ore particles and increase the falling area.
(3) Play the role of flocculation, filtration, concentration and increase the processing capacity.
(4) Equipped with comprehensive automatic control device.

Structure and working principle of gravity type gold-copper ore mineral thickener

The thickener is mainly composed of a circular thickening tank and a rake scraper. The solid particles suspended in the slurry in the concentration tank fall under the action of gravity, and the upper part becomes clear water, which separates the solid particles from the liquid. The ore slurry deposited at the bottom of the concentration tank is continuously scraped by the rake scraper to the center discharge port at the bottom of the tank, and the clean water overflows along the upper edge of the concentration tank.

The benefits of gravity gold copper ore mineral thickener manufacturers

1. Mineral processing technology demonstration and consultation

2. Raw ore testing and evaluation

3. Site selection consultation and evaluation

4. Website Design and Layout Design

5. Install, debug and train workers until it runs smoothly

Technical parameters of gravity type gold-copper ore mineral thickener manufacturer

Specification	Concentration tank		Settlement area (m2)	Rake revolutions (r/min)	motor		Capacity (t/d)	Weight (tons)
Specification	Diameter (m)	Depth (m)	Settlement area (m2)	Rake revolutions (r/min)	Model	Power (kW)	Capacity (t/d)	Weight (tons)
NZS1	1.8	1.8	2.55	0.5	Y90L-6	1.1	1.3-5.6	1.3
NZS2.5	2.5	1.8	4.9	0.33	Y90L-6	1.1	5-10.8	2.4
NZS3	3.6	1.8	10.2	0.33	Y90L-6	1.1	5-22.4	3
NZS6	6	2.95	28	0.3	Y90L-4	1.5	14-62	8.7
NZS8	8	3.318	50.2	0.27	Y132S-6	3		17
NZS9	9	3	63.5	0.25	Y132S-6	3	32-150	22.7
NZS12	12	3.6	113	0.19	Y132S-6	3	250	33.1
NZSG-2.5	2.5	1.85	4.9		Y90L-6	1.1	5-22.4	2.23
NZSG-3A	3	1.8	7		Y100L-6	1.5	5-23.4	3.17
NZSG-3	3.6	1.8	10.2		Y100L-6	1.5	5-25	3.68
NZSG-5	5	2.956	16		Y90L-4	1.5	16-90	8.03
NZSG-6	6	2.956	28.3		Y90L-4	1.5	98	9.2
NZSG-7	7	3	38.5		Y112M-6	2.2		13.36
NZSG-8	8	3.318	50.2		Y132S-6	3		19.29
NZSG-9	9	3.376	63		Y132S-6	3	210	21.96
NZSG-12	12	3.6	113		Y132S-6	3	370	34.82
NZSG-15	15	3.6	176		Y132M2-6	5.5	580	58.8
NZSG-18	18	4.4	255		YCT200-413	7.5	960	75.6
NZSG-20	20	4.4	315		Y160M2-8	7.5	1400	83.55

Specification	Tank diameter (m)	Tank height (m)	Settlement area (m2)	Rake speed (t/min)	Lifting height (m)	motor		lifting motor
Specification	Tank diameter (m)	Tank height (m)	Settlement area (m2)	Rake speed (t/min)	Lifting height (m)	Model	Power (kW)	Model	Power (kW)
GX-3.6	3.6	1.7	10	1.1	0.2	Y100L-6	1.5	PZ0.8AB	0.8
GX-5.18	5.182	2.134	twenty one	0.8	0.3	Y132M1-6	4	PZ0.8AB	0.8
GX-9	9	2.8	63.6	0.427	0.4	Y132M2-6	5.5	Y132S-8	2.2
GX-12	12	3.6	110	0.35	0.5	Y160M-6	7.5	Y132S-4	5.5
GX-15	15	3.6	176	0.35	0.5	Y160M-6	11	Y132S-4	5.5

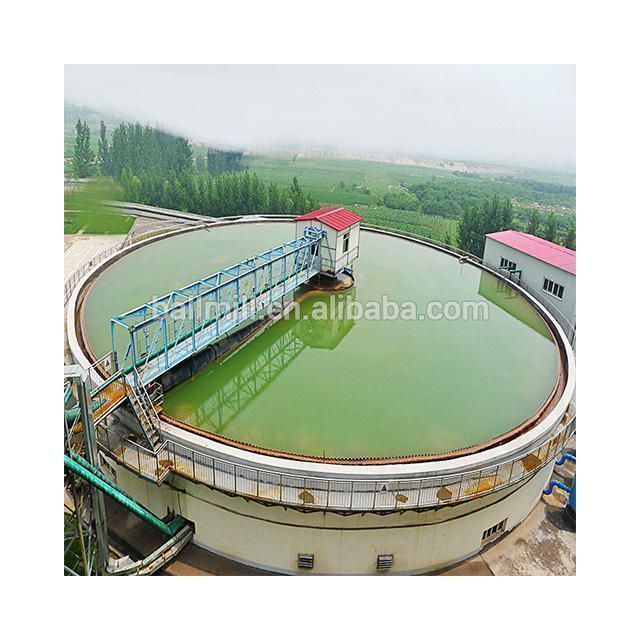

product photo

Installation and use of hot-selling high-quality centralized transmission concentrator

1. Instalment payment:

The thickener is installed on the site as a whole, and the movement of each component should be flexible during assembly to ensure reliable rotation.

The main shaft is mounted, while the rake keeps the fighting and demining lines.

NOTE: The thickener cannot be run in reverse.

2. Trial operation

No-load test run: The test time is 8 hours, and the rotating part of the motor and the heating should not exceed 50 °C.

Load test: The test time is 8 hours, and it is tested with liquid water.

3. Running

Check the starting gate before the concentrator is running. The lower pool and conduit are normal transmission mechanisms. It must be confirmed that no items fell into the pool at the time of the accident before the condenser can be started.

When the machine is operating in a concentrated manner, attention should be paid to the plane of concentrated load, purity and overflow of concentrated concentrated products. Mine blockage of the bucket is one of the most important faults in the operation of the machine. It may occur due to blockage. Coarse particles, wood chips such as rags falling into the hands are concentrated in the thickener, especially the suspension operation of sand is more likely to occur. When the throat gets stuck, it is important to close the pipe where the product concentrates on the gate, and then inject high pressure water into the mine hopper, thus eliminating the blockage. If the thickener accidentally falls into the pool of wood, rags and other objects, it is possible to completely eliminate the possibility of failure.

After the operation, accelerate the load and fasten the bolts in time for tightening.

Packaging and Shipping

Our payment terms:
1. We usually accept T/T, L/C,
2.T/T: 30% deposit in advance, balance paid before delivery;
3. We take pictures of the finished product before delivery.
Packing:
1. Sandblasting and applying high-quality paint;
2. PP-Bubble product packaging
3. Loading container, spear parts in wooden box.
transportation:
1. Shipping: APL, COSCO, OOCL, CSCL, MSC, etc.
2. We will remind you before the boat arrives

our service

XKJ's full service

Our company has reliable products and an experienced service team to provide our customers with the latest product information and technical services. I believe that you not only need products, but also good after-sales service. Based on technology and quality products, we will provide satisfactory service to our customers.

(1) Guide customers to deploy the most useful equipment items according to their needs.

(2) Provide technical information, including machine list, basic specifications and installation drawings.

(3) Design and manufacture products according to the special requirements of customers.

(4) Send engineers to the site to design the best installation process and scheme for customers free of charge.

Pledge

The warranty period of the product is one year from the date of sale. During this period, our company will repair the failure caused by the quality of the product for free, and the failure caused by improper operation, improper maintenance, fire and wear will be repaired free of charge by our company. out of warranty.

Users need to submit product information to our after-sales service department within the specified time after purchasing our products, so that our company can establish customer files. We have recorded all our sold products, so users need to correctly record the product brand and number stated in the certification so that we can carry out follow-up services.

For all products sold by our company, we provide lifetime paid maintenance services.
