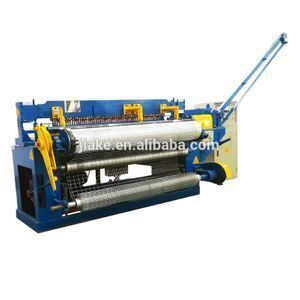

Full automatic electric welded wire mesh machines for building mesh in roll mesh with all necessary equipment

Supplier: Hebei Jiake Welding Equipment Co., Ltd.
Region: Hebei, China
Contact: Mr Michael Zhang
Price: $9800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Showroom Location:	None;	Packaging Detail:	20ft container for loading;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;	Warranty:	2 years;
wire diameter:	0.65mm-1.8mm;	Primary Voltage:	380V;
Rated Duty Cycle:	10;	Motor:	2.2kw;
Rated Capacity:	40KVA*4;	Port:	Xingang Port, China;
Aperture/pitch:	25, 50, 75, 100mm;	Dimensions:	305018001400mm;
Condition:	New;	Welding speed:	Max.75-180 rows/min;
Supply Ability:	30 Set/Sets per Month full automatic electric welded wire mesh machines;	Brand Name:	JIAKE;
Power (kW):	2.2;	Weight:	2T, 2.5T, 3T, 3.5T;
Local Service Location:	Egypt,Turkey,Viet Nam,Peru,Pakistan,Mexico,Russia,Thailand,Malaysia,Argentina,South Korea,Colombia,Sri Lanka,Romania,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Tajikistan;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ,Energy & Mining;
Weight (KG):	2200 KG;	Usage:	weld construction mesh;
Mesh width:	Max.1.2m, 1.5m, 2m, 2.5m;	Place of Origin:	Hebei China;
Key Selling Points:	Easy to Operate;

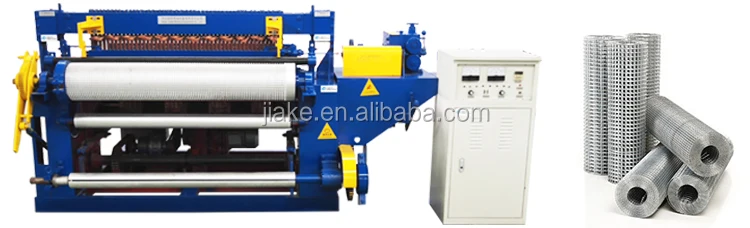

Electric Welded Wire Mesh Machine

Product Description

Electric Welded Wire Mesh Machine is used for making welded wire mesh in the rolled. It is widely used in industry, mining, agriculture, construction, transportation, such as the animal fence, window guard, channel fences and decorations.

Our welded wire mesh machine can be customized as customer required different specification.

Technical Parameter

Model	DP-DNW-1	DP-DNW-2	DP-DNW-3
Wire diameter	0.4-0.65mm	0.65-1.8/0.8-2/0.65-2mm	1.0-2.2/1.2-2.5mm
Aperture/pitch	6.25,12.5mm	12.5, 25, 50mm	25, 50, 75, 100mm
Mesh width	Max.1m or 1.2m	Max.1.2m, 1.5m, 2m	Max.1.2m, 1.5m, 2m, 2.5m
Motor	2.2kw	2.2kw,4kw	4kw,5kw,7.5kw
Welding speed	Max.75 rows/min	Max.120-180 rows/min	Max.80-120 rows/min
Transformer	50kva*3	60kva*4/5/7	70kva/80kva*5/6/7/8
Weight	1.5T	2T, 2.5T	2T, 2.5T, 3T, 3.5T

Popular specification of welded wire mesh as below:
Mesh width:1m, 1.2m, 1.5m, 2m, and 2.5m
Minimum mesh opening size:12.5mm, 25mm, 50mm

Warmly tips: we can design the machine according to your wire diameter, mesh hole size and mesh width.

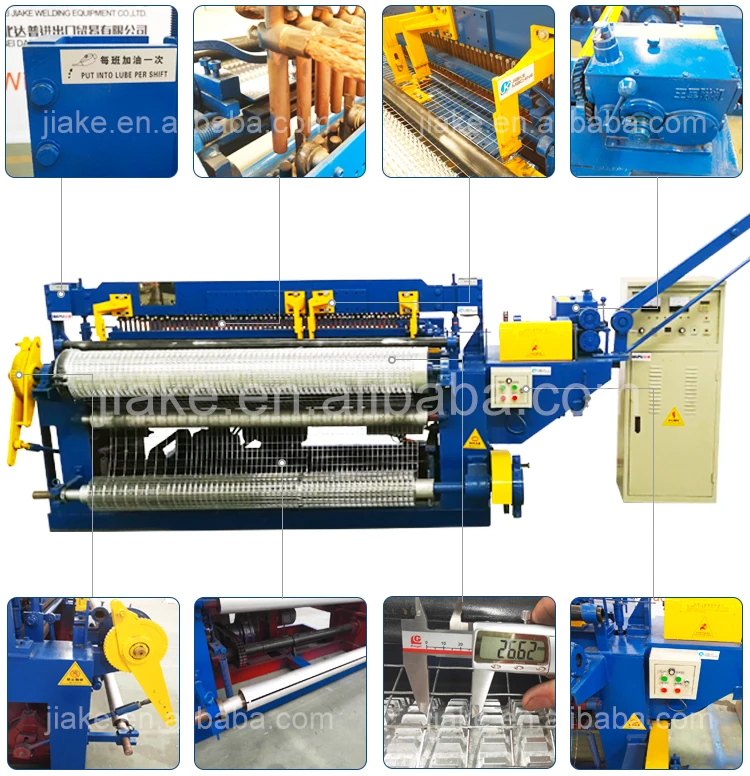

Machine Details

1. The raw material is suitable for low-carbon steel wire (black wire) and galvanized wire.

2. Both of the longitude wire and cross wire are fed from wire coils automatically.

3. The middle cutter and sider cutters can be adjusted randomly to make two mesh rolls at the same time.

4. The mesh roll length can be set by a counter switch on the control panel.

5. The welding time and welding current can be adjusted on the control panel to adjust the welding degree.

6. This welded wire mesh machine uses the best quality main motor &reducer, it will be equipped with an Inverter and world-famous brand electronic component.

7. The line wire space and cross wire space can be adjusted.

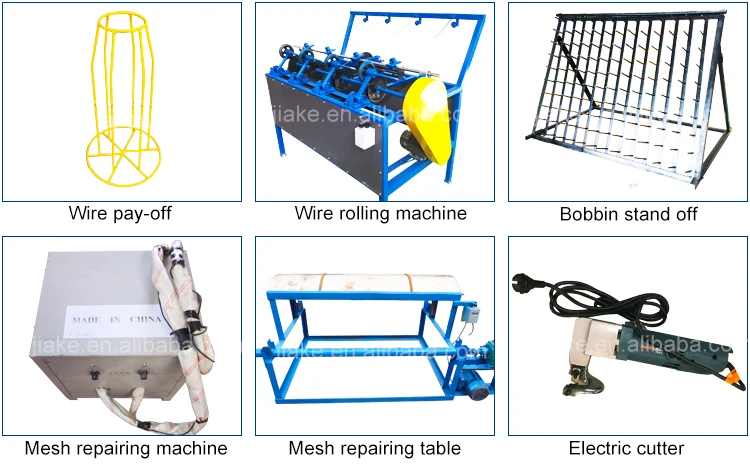

Auxiliary Equipment

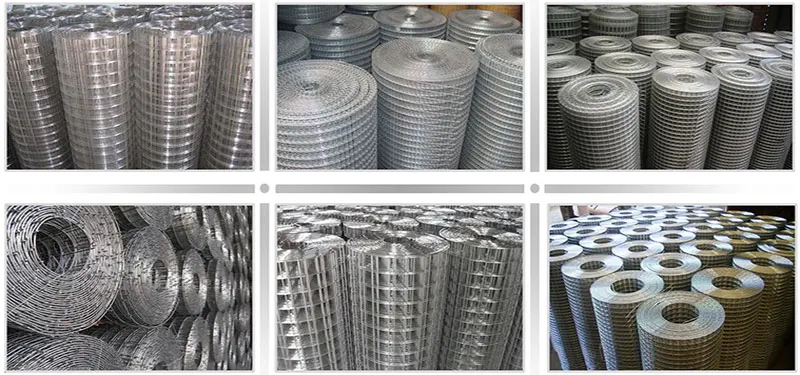

Finished Product

Welded wire mesh machine also called welded roll mesh machine, electric welded mesh machine, electric mesh welding line. It's used to make construction mesh, wall mesh, animal cage, mining, etc.

About Us

Hebei Jiake Welding Equipment Co., Ltd. It’s the leading manufacturer of wire mesh machines in China and we always offer ADVANCED WIRE MESH TECHNOLOGY.

After-sales Service

FAQ

Q: Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.

Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology to develop the department and testing department.

Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.

Q: What's the guaranteed time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.

Q: Can you export and supply the customs clearance documents we need?
A: We have a lot of experience in exporting. And we can supply the CE certificate, Form E, passport, SGS report, etc, your customs clearance will be no problem.
