Efficiency pulley steel wire drawing machine straight wire process machine details
Certification:CE ISO;Inlet Diameter:5.5 mm;
Supply Ability:20 Set/Sets per Month;Marketing Type:Ordinary Product;
After-sales Service Provided:Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;Condition:New;
Place of Origin:China;Brand Name:JIAKE;
Input wire dia:6/ 6.5 mm;Warranty of core components:1 Year;
Payment Terms:L/C,Western Union,T/T,MoneyGram,cash, rmb;Voltage:Client's Voltage,customized;
Packaging Detail:Main machine and auxiliary equipments in the container, spare parts in wooden cases.;Color:Customized Colors;
Port:Tianjin port, China;Showroom Location:None;
Local Service Location:None;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Package Preview:;Warranty:1 Year;
Outlet Diameter:1.6 mm;Key Selling Points:Long Service Life;
Application:wire mesh, fence, cage, nails;Control system:PLC+touch Screen;
Type:Fully Automatic;Output wire dia:2/ 1.6mm;
Video outgoing-inspection:Provided;Core Components:Gearbox,Gear,Bearing,Engine,Motor,PLC;
Usage:Wire process;Material:steel wire, low carbon wire;
Machinery Test Report:Provided;Applicable Industries:Building Material Shops,Manufacturing Plant,Farms,Construction works ;
Product Description
  Product Description



Wire drawing machine, as a part of the steel wire rod as raw material and reduces its diameter as much as you need; If you can’t find the suitable wire diameter in your local market, you can use this machine to make different diameters of black wire or GI wire according to different applications; We can design the wire drawing machine according to your request about input wire diameter and output wire diameter; Also our wire drawing machine can produce round wire to ribbed wire.

Technical parameter
  Technical parameter

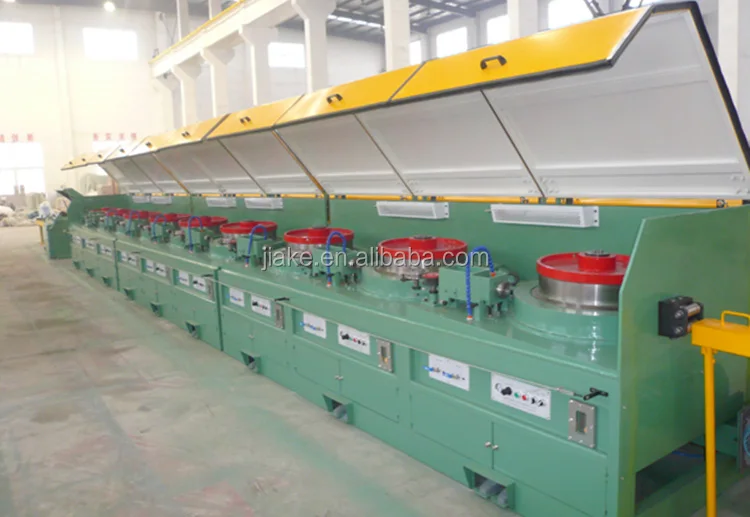

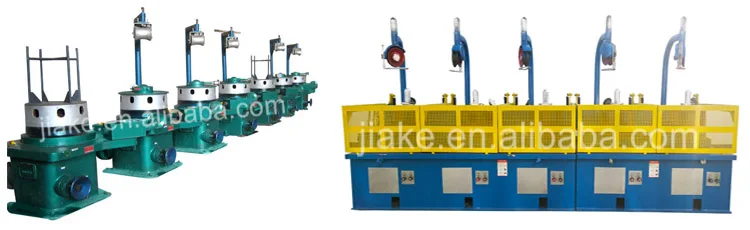

OTO 550/ 560 pulley wire drawing machine

+

Model

550

Raw material

low-carbon steel wire (Q195, Q215, and Q 235.)

Number of blocks

8

Wire diameter

Inlet 6mm and outlet 2mm

Motor

18.5KW, 4 level, 1440r/min

Production

422m/min (5 tons/8hours )

Inverter brand

INVT inverter, saving 30% electricity

Drawing path

1-6

Dia. of pot

550mm

Dimension

4*1.685*2.1M

Unit Weight

 1400 KGS

We can design a solution according to your input and output wire diameter; or ribbed wire

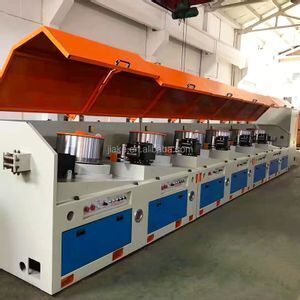

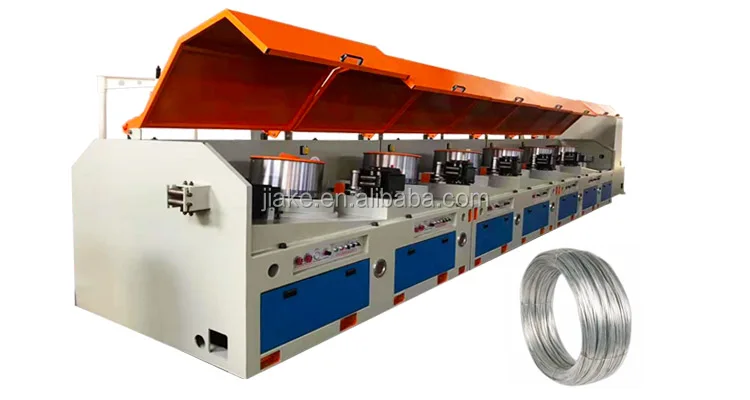

Straight wire drawing machine



Model

LZ-560

Dia. Of pot

560 mm

Number of blocks

10

Wire diameter

Inlet Max. 5.5mm and outlet Min. 1.6mm

Compression (%)

Max. 91.54

Average compression(%)

21.88

Input wire tensile strength

≤600mpa

Max. wire feeding speed

16.66m/ s (1000 m/ min)

Motor

22KW

Mould size

40mm* 25

Pot arrangement

Upright
Wire feeding From left to right

We can design a solution according to your input and output wire diameter; or ribbed wire

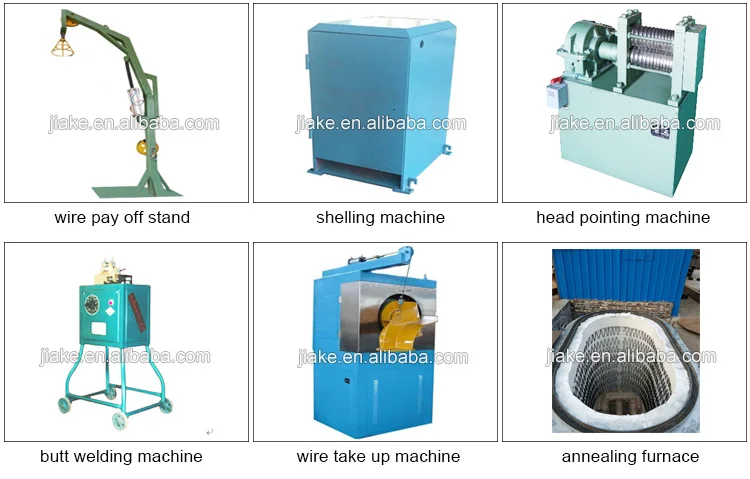

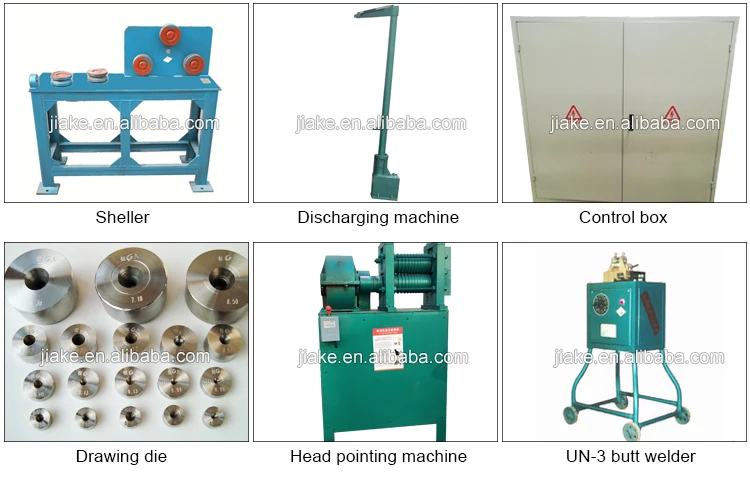

auxiliary equipment
  auxiliary equipment

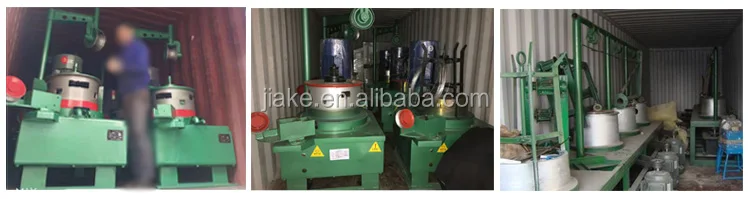

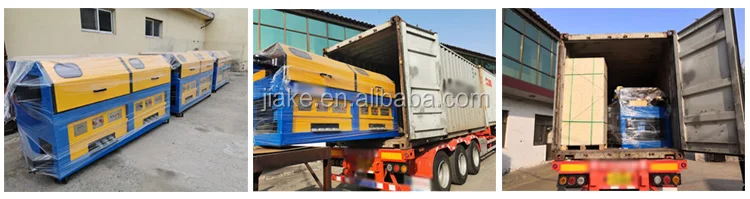

Packaging & Shipping
  Packaging & Shipping

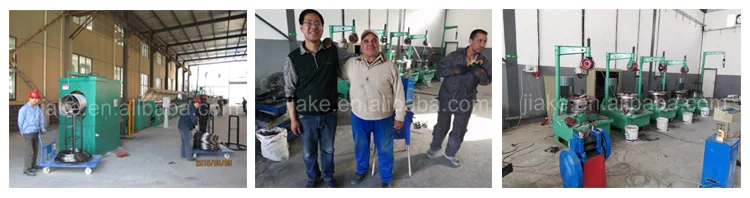

Customer factory
  Customer factory

Certifications
  Certifications



About Us
  About Us





FAQ
  FAQ

Q: Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.



Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our technology to develop the department and testing department.



Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.



Q: What's the guaranteed time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.



Q: Can you export and supply the customs clearance documents we need?
A: We have much experience with exporting. And we can supply the CE certificate, Form E, passport, SGS report, etc, your customs clearance will be no problem.
