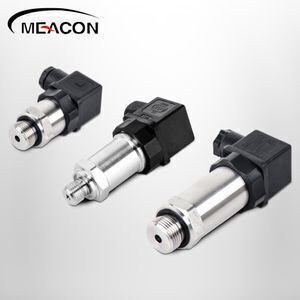

Piezoresistive oem Plastic Extruder Piezo Pressure Sensor element 0-100Kpa 0-1 bar

Supplier: Hangzhou Meacon Automation Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Kevin Huang
Price: $30.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

IP rate:	IP68;	Material:	Stainless Steel;
Ambient temperature:	-20~80℃;	Zero Drift:	±0.02%FS/°C;
Place of Origin:	Zhejiang China;	Output:	4-20mA(2 Wires)/0-5V/0-10V;
Product name:	Submersible Fuel Pressure Sensor;	Payment Terms:	L/C,T/T,Western Union,pay for Submersible Fuel Pressure Sensor;
Port:	Shanghai;	Model Number:	MIK-PH260;
Supply Ability:	10000 Piece/Pieces per Month;	Packaging Detail:	Standard export package of Submersible Fuel Pressure Sensor;
Accuracy:	0.3%FS 0.5%FS;	Overload pressure:	200%FS;
Measuring Range:	0...2m....200mH2O;	Brand Name:	Meacon;
Power supply:	9-332VDC;

Product Description

MIK-P300 pressure transmitter is kind of device based on pressure layer, which inside expert integrate circuit can transform sensor milli-volt signal to standard far distance transmission current signal, and it can be directly joined with computer joint clip, control instrument ,aptitude instrument or PLC etc. conveniently. The series' product is applied extensively in the professions, such as the industry process control, petroleum, chemical engineering and metallurgy etc. Carry the distance delivers and can adopt electric current exportation method.

Specification

Pressure Type	Gauge pressure/ absolute pressure /sealing pressure
Power Supply	12VDC 24VDC 12-36VDC
Signal Output	4-20mA 0-20mA 0-5V 1-5V 0-10V RS485
Zero Drift	±0.03%FS℃
Accuracy	±0.5%FS℃,0.3%FS optional
Thermal Sensitivity Drift	±0.03%FS℃
Long Term Stability	≤0.2%FS℃ one year
Frequency Response(-3dB)	5kHz~650kH
Ingress Protection	IP65
Pressure Connection	G1/4, G1/2,1/2NPT,1/4NPT, M20*1.5etc.(optional)
Measure Medium	Gas, water, oil etc. (non-explosion-proof area)
Electrical Connections	DIN connector type, M12 connector, cable connector type
Time Response	<10ms
Weight	Min,400g(depending on model)
Housing material	304/316L stainless steel
Fill Fluid	Silicon oil

Operation conditions
Temperature	-20…+80℃/-4...+176°F
Nominal Temperature	-40…+85℃/-40...+185°F
Ambient Temperature	-40…+100℃/-40...+212°F
Storage Temperature	PN≤40 bar /580 psi:-40…+125℃/-40...+257°F
Medium Temperature	PN≥60 bar /870 psi:-25…+125℃/-13...+257°F
Medium Temperature	With cooling fins(optional): PN≤40 bar /580 psi:-40…+125℃/-40...+257°F PN≤40 bar /580 psi:-40…+125℃/-40...+257°F
