Multifunction Loop 4-20ma signal generator calibrator

Supplier: Hangzhou Meacon Automation Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Kevin Huang
Price: $76.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Zhejiang China;	Package Type:	standard carton;
Selling Units:	Single item;	Brand Name:	Meacon;

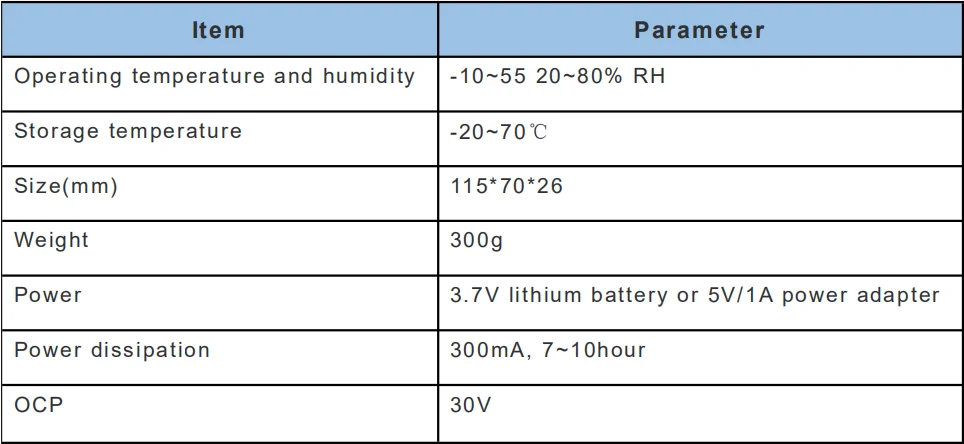

Size:	115mm70mm26mm;	Power supply:	3.7V Battery;
Single gross weight:	0.44 KG;	Single package size:	10X5X13 cm;
Working temperature:	-10~55℃;	Output signal:	Voltage signal/Current signal/Thermocouple;
OEM:	Yes;	Model Number:	MX-702;

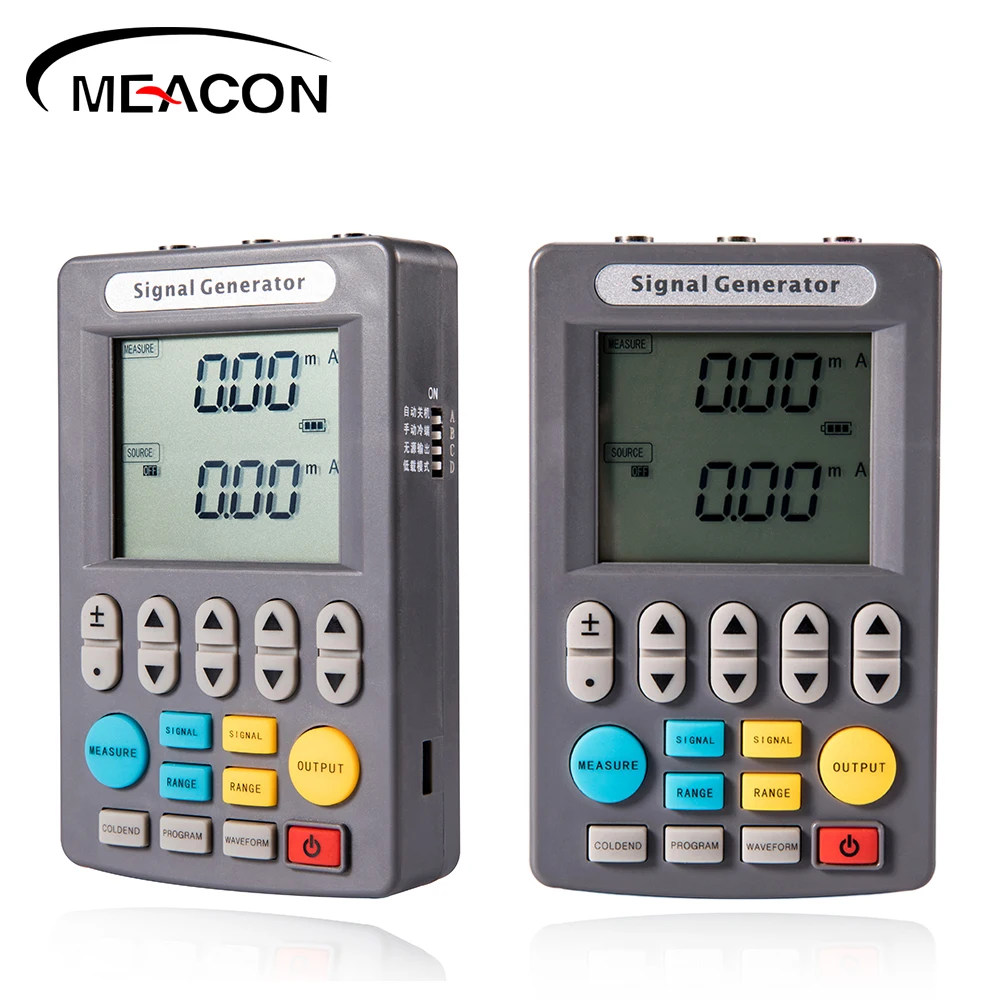

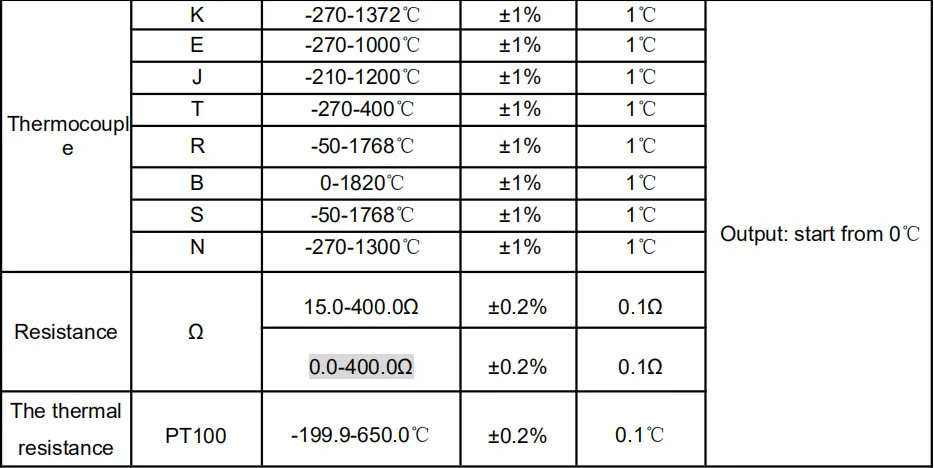

C702 Multi-functional Hand-held Signal Calibrator has a multiple signal Output and measurement including voltage, current and thermoelectric couple with LCD screen and silicone keypad, simple operation, longer standby time, higher accuracy and programmable output.

Features:

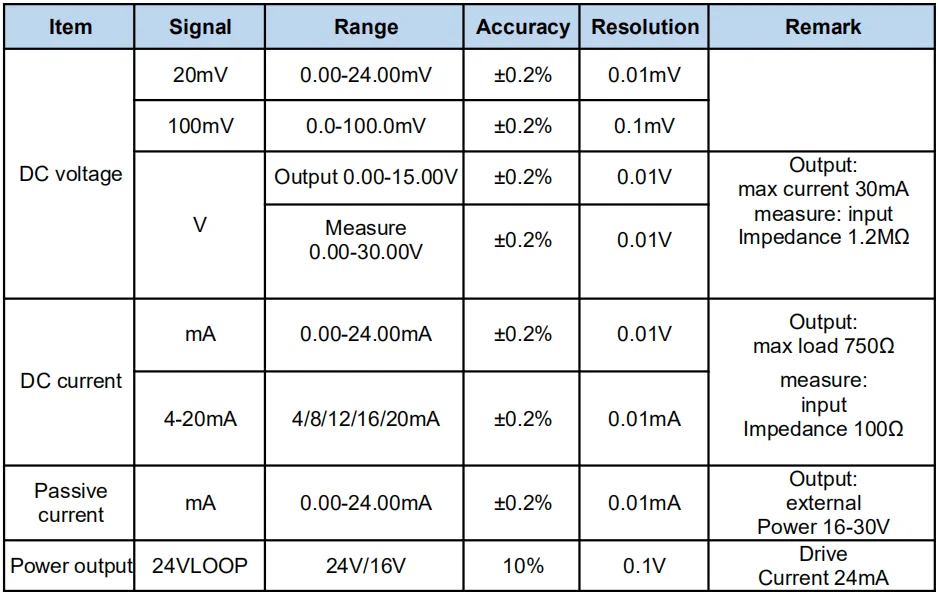

·Highly accurate within 0.1% of the DC voltage range for source and measure

·Source and measurement can be performed simultaneously.

·Loop power supply function (24 VDC)

·Sweep functions that allow 3 types of continuous outputs:

> Line out function

> Stepping out function

> Segmentation output(c/m) function
