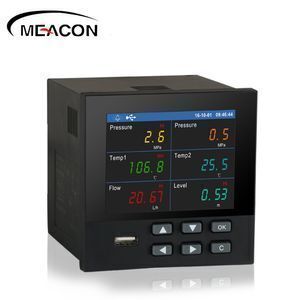

Customizable MIK-R9600 18 channels paperless recorder

Product details
Brand Name:Meacon;Channel:1-18 (optional);
Recorder:1s/2s/5s/10s/15s/30s/1m/2m/4m----60h;OEM:yes;
output:1-4 alarm output(optional);Place of Origin:Zhejiang China;
Payment Terms:L/C,T/T;Sampling period:1s;
Display:3.5inch LCD screen;Supply Ability:1000 Piece/Pieces per Month;
Packaging Detail:Standard export packing;Accuracy:±0.2%FS;
Communication:RS-485 or RS-232;Port:SHANGHAI,CHINA;
Power supply:176VAC-264VAC;



FEATURES

Basic Functions

• Up to 18 channels of universal input

• UP to 4 Alarm Output Relays

• With 150mA Power distribution Output

• Communication type: RS485, Modbus RTU

• With a USB data transfer interface



Display & Operation

• Multiple display Function :choose the display your way

• Use date and time calendar search functions

  to Review historical data .

• 3.5 inch TFT color LCD (320 x 240pixels)



Reliability and Security

• Dust- and splash-proof front panel

• Power Fail Safeguard:All the data stored in Flash memory,

  make sure that all the historical data and configuration para-

  meters  will not lost when power fail. Real time clock power

  supply by lithium batteries.



Data Acquisition Software

• Software for varieties of tasks : analysis, settings, and acquisition





Specification



Display

This instrument is a 5-inch TFT true color LCD screen. The resolution of it is 320 * 240 and is high-definition LED backlit. The three sides close to zero visual angle gives you a wide view experience.

Shape dimension

Shape dimension:96mm×96mm×96mm

Opening Size:92mm×92mm

Thickness of mounted panel

1.5mm~6.0mm

Weight

0.37kg

Electricity supply

(176~264)VAC,47~63Hz

Internal storage

48M bytes Flash

External storage

U disk support (standard USB2.0 communication interface)

The maximum power consumption

20VA

Relative humidity

(10~85)%RH(No condensation)

Operating temperature

(0~50)℃

Transport and storage conditions

temperature (-20~60)℃,Relative humidity (5~95)%RH(No condensation)

Altitude:<2000m,Except for special specifications

Input signal

Type

The maximum permissible error(%FS)

(1~5)V

±0.1

(4~20)mA

±0.2

Type

Measure range(℃)

The maximum permissible error(℃)

B

600 ~ 1800

±2.4

E

-200 ~ 1000

±2.4

J

-200 ~ 1200

±2.4

K

-200 ~ -100

±3.3



-100 ~ 1300

±2.0

S

-50 ~ 100

±3.7



100 ~ 300

±2.0



300 ~ 1600

±1.5

T

-200 ~ -100

±1.9



-100 ~ 380

±1.6

R

-50 ~ 100

±3.7



100 ~ 300

±2.0



300 ~ 1600

±1.5

N

-200 ~ 1300

±3.0

Type

    Measure range (℃)

The maximum permissible error(℃)

Cu50

-50 ~ 140

±1.0

Pt100

-200 ~ 800

±1.0

NOTE:special RTD can be customized,like Pt1000 etc







Power supply

      voltage range:176 to 264 VAC

      Rated power supply frequency:

      47-63 Hz (automatic switching)

      Power consumption: 20 VA (max., for 264 VAC power supply)

Normal Operating Conditions

       Ambient temperature: 0 to 50 °C

     Ambient humidity: 10% to 85%





Display

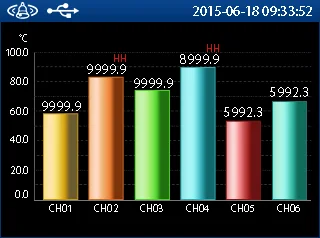

Data screen                                                           Bar-graph screen

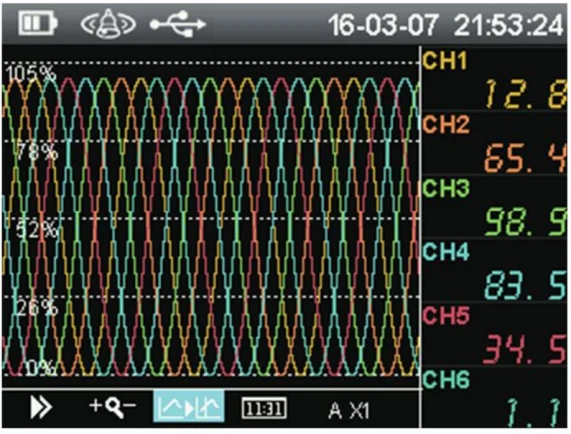

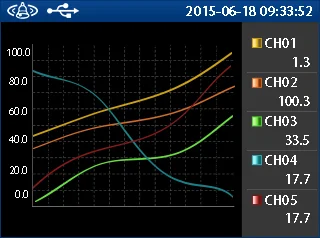

Real-time trend screen                                         Historical trend screen

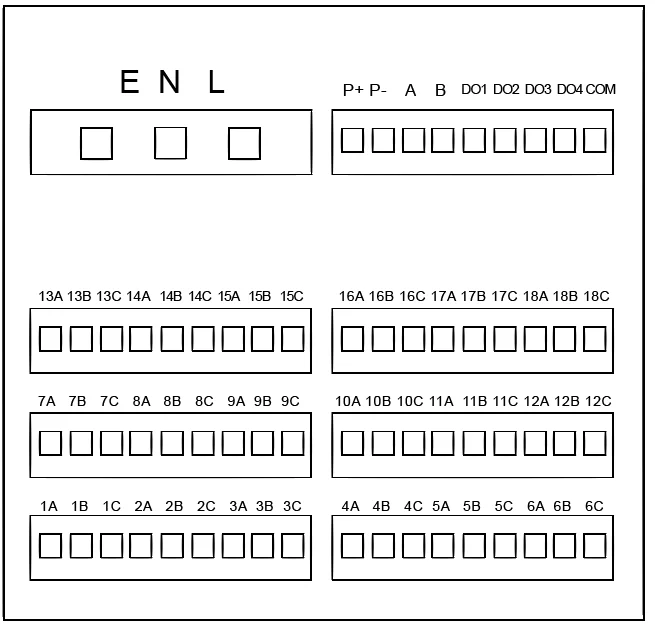

 Terminal Arrangement

• Power terminals (E  N   L)

• Power distribution ( P+ P- )

• Communication terminal

  RS485 (A    B)

• Alarm relay output  terminal

  No.1-4 (DO1  DO2  DO3  DO4  COM)

• Channel1 to channel18  Measuring input terminal
