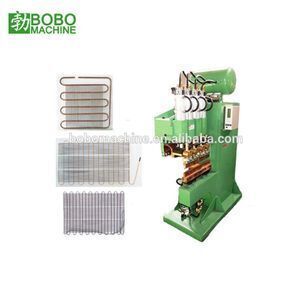

THE THREADED PIPE TYPE EVAPORATOR WELDING MACHINE

Click here to contact

Product details

After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;	Condition:	new;
Dimensions:	width 100mm;	Usage:	air conditioning, refrigerator;
Power supply:	380V,3P, 50Hz;	Single package size:	12X12X12 cm;
Rated Capacity:	150KVA;	Primary Voltage:	380V;
Applicable Industries:	Manufacturing Plant;	Selling Units:	Single item;
Air pressure:	≥ 0.6mpa;	Welding speed:	1000mm;
Name:	The threaded pipe type evaporator welding machine;	Warranty:	1 year;
Package Type:	The threaded pipe type evaporator welding machine will be packed in plywood case;	Lower electrode stroke:	40mm;
Place of Origin:	Jiangsu China;	Max.short circuit current:	36KA;
Max.pressure:	5315;	Brand Name:	BOBO;
rated capacity:	150KVA;	Insulation class:	F;
Single gross weight:	1 KG;	Rated Duty Cycle:	20%;

Product Description

THE THREADED PIPE TYPE EVAPORATOR WELDING MACHINE

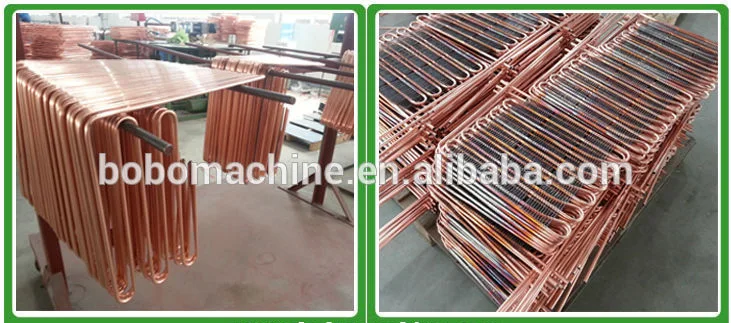

The threaded pipe type evaporator welding machine is suitable for air conditioning, refrigerator etc refrigeration enterprise.

Feature of the threaded pipe type evaporator welding machine

Efficiency high: Can produce 8000 PC/day
Rate of loose-weld lower: Only 5 point among 1000 PCS product
Without deformation and discoloration
High energy saving: Energy saving 40% than usual machine
Electrode is easy to change after wear, don't need to change the complete electrode and electrode base, only for electrode parts, so decreasing the cost.
Three phase power supply input evenly, it doesn't affect power grid.
Equipped with PLC touch screen, LED display clearly, easy to adjust and operate
Machine body of thick steel sheet, not easy to deformation
Microcomputer control, accuracy and steady
Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up. There is cooling water in inside, using full copper alloy core, reducing impedance, improving the utilization of power, 20% duty cycle to ensure the requirement of long time welding, big output power. The useful lifetime is longer, noise is smaller, structure is more compact and reasonable.
Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.
Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
Quality is stable, failure rate is low, therefore machine life is longer

TECHNICAL DATA OF THE THREADED PIPE TYPE EVAPORATOR WELDING MACHINE:

DNW3-250-1200	DNW-150-3	DNW2-150-4
Rated capacity (KVA)	250	150	150
Transformer	1200type 250KVA MF inverter transformer	150KVA AC transformer	150KVA AC transformer
Rated voltage (V)/ Phase	380/3	380/1	380/1
Rated frequency(HZ)	50	50	50
Max. short circuit Current (KA)	42.9	36	36
Duty cycle(%)	50	20	20
Max. pressure(N)	5315	5315	5315
Upper electrode Stroke (mm)	60	60	60
Lower electrode Stroke (mm)	40	40	40
Cooling water flow (L/min)	24	6	6
Max. welding width each electrode (mm)	155mm	100	100
Welding speed (pcs/ 8h)	5500	1000	1000
Overall dimension (mm) LWH	26006701685	46011001900	12506801840
Air pressure	≥0.6mpa	≥0.6mpa	≥0.6mpa
Insulation class	F	F	F
