CT520D Plasma Cutter Tig Stick Welder 3 in 1 Combo Welding Machine, 50Amp Air Plasma Cutter, 200A TIG/ Stick Welder details
Condition:New;Place of Origin:Shanghai China;
Insulation Class:F;Model Number:CT520DSHYDHJ00000V4;
After-sales Service Provided:Engineers available to service machinery overseas;Rated Current:10~200A;
Payment Terms:T/T,Western Union,PAYPAL;Dimensions:55x33x44cm;
Packaging Detail:one set in a carton box;Brand Name:VEVOR;
Usage:Cutting;Duty Cycle:60%;
Welding Thickness:0.8-3mm / 1-10mm;Protection Class:Ip21;
Port:shanghai;Power Efficiency:85%;
Certification:CE Certification;Dimension:55x33x44cm;
Input Voltages:110V, 1-PH, 50/60Hz;Power Factor:0.93;
Input Voltage:110/220V;Delivery Detail:5-7 BUSINESS DAYS;
Gas Supply:Clean, dry, oil-free air;Weight:14.5kg;
Supply Ability:200000 Set/Sets per Month;

CT520D Plasma Cutter Tig Stick Welder 3 in 1 Combo Welding Machine, 50Amp Air Plasma Cutter, 200A TIG/ Stick Welder

Product Description



The Prime Weld CT520D multipurpose 3 in 1 unit offers a variety of multiple welding and cutting functions. It is able to cut various types of metal up to 1/2’’ with the 50A plasma cutting function. In addition, this unit can switch between DC TIG Welder and DC STICK Welder quickly and easily. With a hand carrying weight at 32lbs, this unit is portable and reliable featuring a duty cycle of 60% at max amps on all processes.

CT520D is of three functions: TIG, MMA and CUTTING. During the operation of MMA welding or TIG welding, this welding & cutting equipment is featured with the stability of output. The stability of welding current output is not frustrated by variation of arc length. During the plasma cutting operation, being compressed by high pressure of compressed air, the arc, of which the temperature rises rapidly up to 10000-15000℃, is of highly ionized status, as a consequent, it produces the powerful plasma arc for cutting. By employing plasma cutting, it is energy saving and efficient. The high speed of metal cutting and smooth incised surface are accessible.

This industrial grade welder can be widely used in welding and cutting carbon steel, stainless steel, alloy steel, and other nonferrous metals. It's portable, efficient, energy-saving and stable, and the exchange cycle of the assembled machinery can be as high as 85% .

FEATURE

  • 50-amp air plasma cutter
  • 200-amp DC TIG welder and DC Stick welder (High Frequency Start)
  • Automatic dual voltage / dual frequency (110/220-volt 50/60Hz)
  • Suitable for cutting and welding stainless steel, mild steel, aluminium(cut only), and other metal materials
  • Flexible TIG torch comes with long and short back caps for welding in tight places
  • Machine is equipped with a large cooling fan and is thermostatically protected for a longer life span
  • Strong and very reliable - ready for Industrial/Commercial and any other application
  • Equipped with an advanced inverter technology and high cutting frequency V-MOSFET from TOSHIBA/FUJI.
  • Certification: CE, CCC, CSA and ISO-9001 certification
  • Four knobs on front of machine:
  • Pre-flow time:   to adjust the time for air/gas blow out of torch before welding
  • Current:   for welding/cutting current
  • Down slope:   would help to weld stainless steel
  • Post gas/air time:   to adjust the time for air/gas blow out of torch after welding

FEATURES:
  • High arc energy
  • Less pollution and burning
  • Enrich welding material
  • Seldom does the welding deformation
  • Air cooling, thermostatic protection for a longer life span
  • Flexible TIG torch with long and short back caps for welding in tight places
  • Strong and extremely reliable - ready for Industrial/Commercial and any other application
  • Multi-function of TIG and MMA welder as well as air plasma cutting
  • ARC column slender, strong penetrability
  • Advanced MOSFET inverter technology, high working efficiency, DC output
  • Compact structure, convenient to carry, reliable and durable, easy for maintenance
  • Pre-flow time: to adjust the time for air/gas blow out of torch before welding
  • Current: for welding/cutting current
  • Down slope: would help to weld stainless steel
  • Post gas/air time: to adjust the time for air/gas blow out of torch after welding
  • Certification: CE, CCC, CSA and ISO-9001 certification

TECHNICAL:
+


Input Voltages

110V, 1-PH,  50/60Hz



Power  Efficiency

85%



17” (432mm) L



GENERAL SPECIFICATION

Dimensions  with Handle

8” (203mm) H




14” (356mm) W



Weight

32lbs ( 14.5kg)



Input Power  Cable Length

6’ (1.8m)




Rated Input Power  Requirement

110V, 1-PH,  27A±15%, 50/60Hz





Output Current

10~50A



Duty cycle @  40°C (104°F)

60% @ 50A



PLASMA CUTTING

100% @ 40A



Gas Supply

Clean, dry,  oil-free air

SPECIFICATION

Recommended Gas  Inlet Flow Rate/Pressure

3.6scfm @  65psi, 80L/min



Cutting Materials

Mild steel,  stainless steel, aluminum, etc.



Maximum  Rated Cutting Thickness*

1/2" (12.7mm)




Rated input  power requirement

110V,  1-PH, 17A±15%, 50/60Hz




Output  current

10~200A



Gas supply

Clean, dry,  oil-free argon gas

TIG WELDING

Recommended  gas inlet flow rate

2-5 L/M



Duty cycle @  40°C (104°F)

60% @ 200A

SPECIFICATION




100% @ 150A



Welding  Material

Steel,  Stainless, Moly, Ferrous




Rated input power  requirement

110V,  1-PH, 23A±15%, 50/60Hz





STICK WELDING

Output  current

10~200A



Duty cycle @  40°C (104°F)

60% @ 200A

SPECIFICATION




100% @ 95A



Welding  Material

Steel,  Stainless, Moly, Ferrous

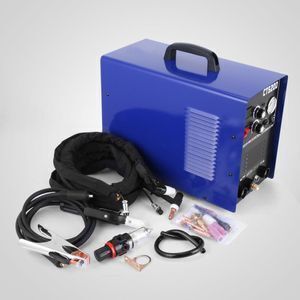

Packaging & Shipping



  • 1 x Earth Clamp
  • 1 x Holder
  • 1 x Cutting torch
  • 1 x Tig torch
  • 3 sets consumables
