Product Details

Marketing Type:	Ordinary Product;	Warranty of core components:	1 Year;
Brand Name:	Mini Lathe;	Selling Units:	Single item;
Max. Swing Diameter (mm):	100 mm;	Showroom Location:	none;
After Warranty Service:	Online support;	Warranty:	2 years;
CNC or Not:	Normal;	Weight (KG):	47 KG;
Machining Capacity:	Light Duty;	Video outgoing-inspection:	Provided;
Product name:	550W 7"x14" Woodworking Bench Top Mini Metal Lathe;	Max. Turned Length (mm):	180 mm;
Core Components:	other;	Type:	Horizontal;
Key Selling Points:	Automatic;	Single gross weight:	47.0 KG;
Automatic Grade:	Automatic;	Condition:	New;
Keywords:	mini metal lathe;	Model Number:	0618WXCC000000001V1;
Dimension(LWH):	83 37 36;	Applicable Industries:	wood lathe machine;
Power(W):	550W;	Packaging Detail:	CARTON WELL PACKED;
Machinery Test Report:	Provided;	Place of Origin:	China;
Voltage:	110V/220V;	Max. Swing Diameter:	100mm;
Single package size:	83X37X36 cm;	Certification:	ISO9001;
Max. Length of Workpiece (mm):	180 mm;	After-sales Service Provided:	Engineers available to service machinery overseas,Online support,Video technical support;
Spindle Bore(mm):	32;	Local Service Location:	none;

Introduction

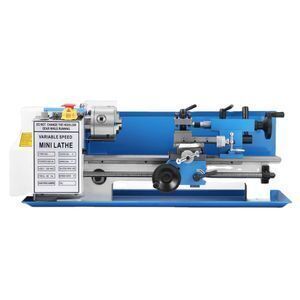

Mini metal lathe for USA, AU, Europe marketing

This precision mini lathe is designed to perform various types of metal turning. This machine can be used in areas such as mini precision parts processing, sample processing and modeling works. The precision mini lathe is perfect for the hobbyist or modeler who is looking to add finite detail to their construction project.
Whether you’re turning, counter facing or making bushings, spindles, prototypes or models, this precision mini lathe will meet the challenge! With 18 threads, automatic feed and a chuck guard with micro switch, this mini lathe is ideal for use in labs, workshops, engineering and educational settings.

Product adwantage:

Open the switch to start the operation, do not need to worry about not touch the boot to bring security risks, emergency shutdown, just take the red cover to shut down, very safe.
Telescopic sets with scale, you can intuitively see the length of the telescopic handle scale, precise scaling can be digitally standardized, but also lateral movement.
By adjusting the speed switch can control the spindle speed 100 to 2500RPM.
Machine is equipped with all-metal gears, power strong, wear-resistant, durable, more accurate rotation. In particular, the thread is more accurate.
Machine using four-way rotating turret, which can be four common turning.
Large slide mobile handle, small slide mobile handle, bed saddle mobile handle, tailstock mobile handle, tailstock telescopic cover, tailstock side of the moving position of the scale, the operation more accurate, more professional performance.

Features

This machine DC motor drived.
The spindle speed readout is infinitely variable from 100 to 2500RPM.
Spindle speed adjusted by MCU.Rotary direction"F"or"R"changed by key.
The feed can be adjusted according to the requirement of different workpieces.
This can be used as mini precision parts processing, sample processing, and modeling works.
Automatic feeding.
550w strong power, 350mm processing distance, DIY processing of metal, wood.
With high precision, can turn out the standard qualified works.
Bed saddle tail scale precision, feed more precise fine-tuning, telescopic sleeve scale practical.
Multi-function and multi-usage, can be turned within the foreign aid, turning thread, turning taper and so on.
Automatic tool, Infinitely variable, professional tool post.

Technical

Variable Speed Gear: Plastic Nylon
Spindle Taper: MT3
Tail Stock Taper: MT2
Distance Between Centers: 14" (350mm)
Swing Over Bed: 7" (180mm)
Chuck Diameter: 3.93" (100mm)
Spindle Bore: 0.8" (21mm)
Cross Slide Travel: 2.56" (65mm)
Top Slide Travel: 1.38" (35mm)
Range of Metric Threads: 0.5-2.5" (12-52 T.P.I Range of Imperial Threads)
Spindle Accuracy: 0.0004" (0.01mm)
Spindle Speed: 100-2500 RPM Infinitely Variable
Power Of Motor: 0.75HP/550W/110v
Net Weight: 50kg
Product Dimensions:
Width: 8"(203.2mm)
Length: 30.5"(774.7mm)
Height: 10.5"(266.7mm)

Other Model

Model	MX180V	MX210D/S	MX250D/S
Power	600W, 110V/60Hz	750W,220V	750W
Distance Between Centers	12" (300mm)	400/700mm	500/750mm
Swing Over Bed	7" (180mm)	210mm	250mm
Swing Over Cross Slide	4" (95mm)	110mm	150mm
Width of Bed	4" (100mm)	100mm	100mm
Taper of Spindle Bore	MT3	MT3	MT4
Spindle Bore	1inch (21mm)	21mm	26mm
Range of Spindle Speeds	50-2500RPM	50-2500RPM	80-1600RPM(12)
Range of Longitudinal Feeds	0.08-0.16mm	0.08-0.16mm	0.03-0.275mm
Range of Threads	10-44T.P.I (0.5-3mm)	10-44T.P.I (0.5-3mm)	0,25-2.5mm
Top Slide Travel	2" (55mm)	55mm	55mm
Cross Slide Travel	3" (75mm)	75mm	75mm
Tailstock Quill Travel	2.5" (60mm)	60mm	60mm
Taper of Tailstock Quill	MT2	MT2	MT3
Gross Weight	68kg (149.6lbs)	80/95kg (176lbs)	163/180kg
Package Dimensions (LWH)	780480420mm (31"19"17")	900480480mm (35.4"19"19")	1200620600mm
