CJ18A 7x14 Mini Lathe Blue Accessory Package Tooling Bench Top Cutter
- 522.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Condition: | New; | Voltage: | 220V; |
| Marketing Type: | Ordinary Product; | Warranty: | 1 YEAR; |
| Package Preview: | ; | CNC or Not: | Normal; |
| Type: | HORIZONTAL; | Spindle Bore(mm): | 32; |
| Dimension(L*W*H): | 77*32*29cm; | Local Service Location: | none; |
| Place of Origin: | Jiangsu China; | Warranty of core components: | 1 YEAR; |
| Max. Turned Length (mm): | 100; | Machinery Test Report: | Provided; |
| Packaging Detail: | wooden box package; | Width of bed: | 75; |
| Machining Capacity: | Light Duty; | Weight (KG): | 45 KG; |
| Single gross weight: | 45.0 KG; | After Warranty Service: | Online support; |
| Certification: | CE; | Power(W): | 550W; |
| Max. Swing Diameter: | 180; | Key Selling Points: | Competitive price; |
| After-sales Service Provided: | Online support; | Model Number: | CJ18ACCZJXK000001V2; |
| Max. Length of Workpiece (mm): | 100; | Core Components: | other; |
| Power (kW): | 550w; | Machine Type: | Horizontal Normal Lathe; |
| Video outgoing-inspection: | Provided; | Automatic Grade: | Semi-automatic; |
| Single package size: | 77X32X29 cm; | Max. Swing Diameter (mm): | 180; |
| Showroom Location: | none; | Applicable Industries: | Machinery Repair Shops; |
| Selling Units: | Single item; | Brand Name: | vevor; |
CJ18A 7x14 Mini Lathe Blue Accessory Package Tooling Bench Top Cutter
Product Description
Premier quality CJ18A mini lathe with accessory package for sale! This set will be a perfect choice for anyone starting to set up a workshop or if you are new to metalwork as this set includes the main items you’ll need.

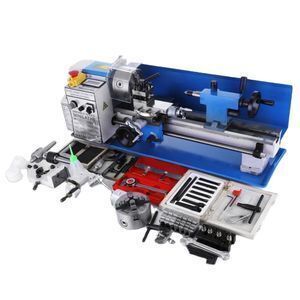

This listing includes the following accessories:
Fixed and traveling steadies, tail stock chuck, live centre, quick change tool post,
100mm independent chuck, 9 piece indexable Tin coated lathe tools (high quality) & 4pc engineers' measuring kit (including caliper and outside micrometer).
Features
- 100mm (4") chuck.
- 350mm (14") between centers, 550W powerful motor.
- Digital readout of spindle speed, tailstock lever lock.
- Brand new machine and accessories from manufacturer.
- Ideal for both professionals and green hands.
- With purchasement of this lathe set, you will get a superb workhouse with brilliant after sales service.
- Specifications should be treated as a guide as there can sometimes be a small variance from the quoted details.
Feature
- 350mm (14") between centers, 180mm (7") swing over bed.
- Digital readout of spindle speed, tailstock lever lock.
- Brand new machine and accessories from manufacturer.
- Ideal for both professionals and green hands.
- Good quality, brilliant after sales service.
- 2-year free warranty.
Specifications
- Power: 550W, 220V
- Distance Between Centers : 350mm (14")
- Swing Over Bed: 180mm (7")
- Swing Over Cross Slide: 110mm (4.3")
- Taper: MT3
- Tailstock Taper: MT2
- Chuck Diameter: 100mm (3.9")
- Spindle Speed: 50-2500rpm
- Spindle Bore: 20mm (0.8")
- Cross Slide Travel: 65mm (2.6")
- Chuck Diameter: 100mm (3.9") (Integral spindle plate is 100mm and can take 3 or 4 jaw chucks-no adapter plate required)
- Range of Metric Threads: 0.5-2.5mm (0.02"-0.1")
- Range of Imperial Threads: 12-52 TPI
- Spindle Accuracy: 0.01mm
- Actual Lathe Dimensions: 77*32*29cm (30"*13"*12")
Package Content
- 1 X CJ18A Mini Lathe
- 1 X Set of External Jaw
- 9 X Indexable Tin Coated Lathe Tools
- 1 X Rear Splash Guard
- 1 X Set of Hex Keys
- 1 X Set of Spanner
- 1 X Oil Can
- 1 X Set of Accessories Shown on Pictures
- 1 X Operation Manual
Company Information
| Company Name | Shanghai VEVOR Machinery Equipment Co., Ltd. |
| Business Model | Manufacture |
| Place of Origin | Shanghai,China(Mainland) |
| Delivery Time | 5~10days |
| Minimun Order Quantity | 1 set |
| Payment | T/T ; L/C; PayPal |
| Warranty | 2 Years |
