NYD 200 HoldBack Backstopping Clutch One Way Sprag Bearing NYD200

Supplier: Changzhou Suma Precision Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Ellen zhang
Price: $1000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply Ability:	500 Piece/Pieces per Month one way sprag bearing;	Precision:	P6;
Packaging Detail:	wooden case or customizable for one way sprag bearing;	Brand Name:	SUMA of conveyor backstop clutch;
Outer Dia. (mm):	430;	Application:	belt conveyor , bucket lift helicopters , the scraper conveyor;
Width (mm):	160;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal of one way sprag bearing;
Port:	Shanghai, ningbo for one way sprag bearing;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Printing Shops,Energy & Mining;
Torque (N.m):	38000;	Product name:	one way sprag bearing;
Weight:	13.5-3380;	Place of Origin:	Jiangsu China;
Inner Race Max. Speed (r/min):	100;	Inner Dia. (mm):	160-200;

NYD 200 HoldBack Backstopping Clutch One Way Sprag Bearing NYD200

Product Description

Features of one way sprag bearing

ND NJ NYD backstop is kind of low - speed plugging device, its structure is compact, light weight, reliabale wedge, relif operation without binding, installer.

It is primarily apply to belt conveyor, bucket lift helicopters, etc.

Parameter of one way sprag bearing

	Torque Capacity (N·m)	Max Rotation Speed		ID	OD	Length
Model	Torque Capacity (N·m)	Inner race r/min	Outer race r/min	H7 (mm)	h7(mm)	(mm)
NYD 95	8000	150	0	80~95	230	110
NYD 110	11000	150	0	90~110	270	110
NYD 135	16000	100	0	100~130	320	130
NYD 160	25000	100	0	120~160	360	140
NYD 200	38000	100	0	160~200	430	160
NYD 220	50000	80	0	160~220	500	230
NYD 250	90000	50	0	180~250	600	290
NYD 270	125000	50	0	200~270	650	290
NYD 300	180000	50	0	230~300	780	290
NYD 320	270000	50	0	250~320	850	320
NYD 350	320000	50	0	250~350	930	360
NYD 425	520000	50	0	320~420	1030	450
NYD 450	700000	50	0	350~450	1090	480

Installation and Maintenance

1.NYD Backstop mainly used to prevent conveyor or pump running reversely in low-speed .

2.Before installation, be sure the inner race rotation direction ( direction of arrow marked on the inner race) conforms to the conveyor belt rotation direction.

3.Install the torque arm of backstop tightly by using a 11T or higher grade bolt. Please be sure torque arm surface is aligned with the side of outer race and free from any dust.

4.Recommended shaft tolerance is h7 or h8.

5.When mounting the clutch onto the shaft, apply pressure to the outer race only. Do not use a hammer to beat inner race, outer race ,or dust cap directly. No any force put to the dustproof end plate .

6.Use only a parallel key to secure the clutch to the shaft. Do not use a tapered Key.

7.When mounting NYD160 or larger size clutch ( Grease lubrication type),place one of the two oil holes at the bottom. It is convenient to discharge the grease and clean the clutch.

8.When shaft rotates, the end of the torque arm would move to some direction. Limiting the torque arm only in the rotation direction, but be sure there is some space for torque arm to rotate freely. The inside clutch would be warped if torque end is fixed completely. And it would damage the elements .

9.The backstop clutch torque arm is standard ones.

Lubrication

NYD95-135 are delivered with grease, no need more maintenance; NYD160-450 use oil lubrication, need to be changed every two years. When adding oil, loosen the outer race rings, open the bottom oil hole bolt, let the oil out, then add oil by ring hole.

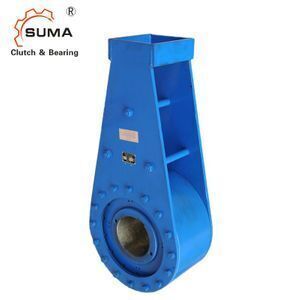

Detailed Images
