Conic rolling machine

Supplier: Nantong Zhenhuan Trade Co., Ltd.
Region: Jiangsu, China
Contact: Mr Franks Cao
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Payment Terms:	L/C,T/T;
Brand Name:	ZHENHUAN;	Model Number:	ZHY001;
Port:	SHANGHAI;	Application:	Taper tube work;
Place of Origin:	Jiangsu China;	Packaging Detail:	wooden package;
After-sales Service Provided:	No overseas service provided;	Delivery Detail:	45 day after receiving down payment;
Supply Ability:	2 Set/Sets per Month;

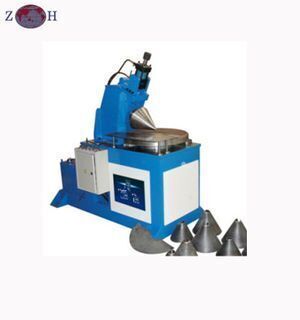

Conic rolling machine/ taper rolling machine/conical tube machine

Volume 2-taper-round series for the various cone-shaped cylinder rolling, rolling round the parts of accurate, easy to operate, reliable accuracy, high efficiency, widely used in automobile manufacturing, motorcycles, decoration, electrical and mechanical and other fields .

Product Name	Volume 2-small circle of taper	Volume 2-taper in a round	Second round-axis large volumes of taper
Input supply	380V 50HZ	380V 50HZ	380V 50HZ
Rated load	Continuous	Continuous	Continuous
Rated capacity(kw)	4-10	4-10	4-10
Adjustment of the hydraulic system (Mpa)	5-12	5-12	5-12
Workpiece taper (°)	0.2-5	5-10	8-20
Workpiece thickness (mm)	0.5-2	0.5-2	0.5-2
Workpiece diameter (mm)	30-120	25-120	30-200
Workpiece length (mm)	150-750	20-200	20-300
