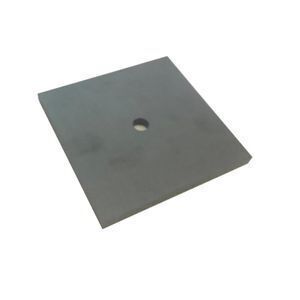

HMEMC ferrite tile for anechoic chamber testing room
- 3.10 >=300 pieces
| Gross weight per batch: | 14 KG; | Brand Name: | HUAMING; |
| Package size per batch: | 36X13X13 cm; | Insertion Loss: | ferrite tile; |
| Stopband Attenuation: | Ferrite tile for EMC chamber; | Transfer Function: | Ferrite tile for EMC ROOM; |
| Shipping: | by sea, by air; | Package Type: | EMC chamber ferrite tile; |
| Model Number: | HM-FT; | Package Preview: | https://sc01.alicdn.com/kf/H27e81874ccfe4bf0bbee7a513c5d750ax.jpg_640x640.jpg; |
| MOQ: | 5 sqm; | Model type: | Tile 55, Tile 67; |
| Selling Units: | Multiple of 30; | Input Impedance: | ferrite tile for chamber; |
| Package: | with plate; | Color: | Black; |
| Nominal Center Frequency: | Ferrite tile for anechoic chamber; | 3dB Bandwidth: | EMC chamber ferrite tile; |
| Place of Origin: | Jiangsu China; | Application: | Anechoic chamber, EMC chamber; |
| Package Type: | wooden package; | Sample: | accept; |
| Type: | ferrite tile for chamber; |
EMC chamber ferrite tile
Principle of Operation:
Based on the principle of having complex magnetic permeability equal (or nearly equal) to complex dielectric constant. Materials with this property exhibit an impedance equal to that of "free space" and therefore do not reflect radiated energy at normal incidence.
Ferrite Tile can provide 10dB - 25dB of absorption between 30MHz and 1GHz. Tiles are thin (approximately 0.26 inches), but can be heavy (roughly 10 lbs per square foot).
Size for EMC chamber ferrite tile
- Base size: 100*100mm
- Standard height: 5.5mm, 6.7mm
- Diameter of bore: 10mm
Application for EMC chamber ferrite tile
Used for EMC chamber
Packing for EMC chamber ferrite tile
We are HUAMING EMC from China. We are the orginal manufacturer for EMC products, include honeycomb vent, waveguide, EMC/EMI power flilter, EMC/EMI signal filter, RF shielding door, RF shielding windows, RF shielding cabinet, beryllium copper finger, copper wool and others. You could get details from WWW.HMEMC.COM .
