6.7mm 5.5mm height EMC chamber ferrite tile for testing
- 4.00 >=10 pieces
| Brand Name: | HUAMING; | Package: | with plate; |
| Type: | ferrite tile for chamber; | Delivery Detail: | 15days; |
| size: | 10*10*6.7; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Sample: | accept; | Supply Ability: | 10000 Piece/Pieces per Month; |
| Packaging Detail: | wooden packing; | Input Impedance: | ferrite tile for chamber; |
| Application: | Anechoic chamber, EMC chamber; | Color: | Black; |
| Port: | shanghai; | Place of Origin: | China; |
| Insertion Loss: | ferrite tile; | Model Number: | HM-FT; |
| MOQ: | 5 sqm; | Transfer Function: | Ferrite tile for EMC ROOM; |
| Package Type: | EMC chamber ferrite tile; | 3dB Bandwidth: | EMC chamber ferrite tile; |
| Nominal Center Frequency: | Ferrite tile for anechoic chamber; | Stopband Attenuation: | Ferrite tile for EMC chamber; |
| Model type: | Tile 52, Tile 67; | Shipping: | by sea, by air; |

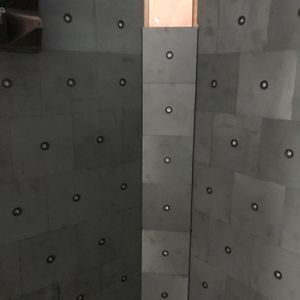

EMC chamber ferrite tile
Principle of Operation:
Based on the principle of having complex magnetic permeability equal (or nearly equal) to complex dielectric constant. Materials with this property exhibit an impedance equal to that of "free space" and therefore do not reflect radiated energy at normal incidence.
Ferrite Tile can provide 10dB - 25dB of absorption between 30MHz and 1GHz. Tiles are thin (approximately 0.26 inches), but can be heavy (roughly 10 lbs per square foot).
Size for EMC chamber ferrite tile
- Base size: 100*100mm
- Standard height: 5.5mm, 6.7mm
- Diameter of bore: 10mm
Application for EMC chamber ferrite tile

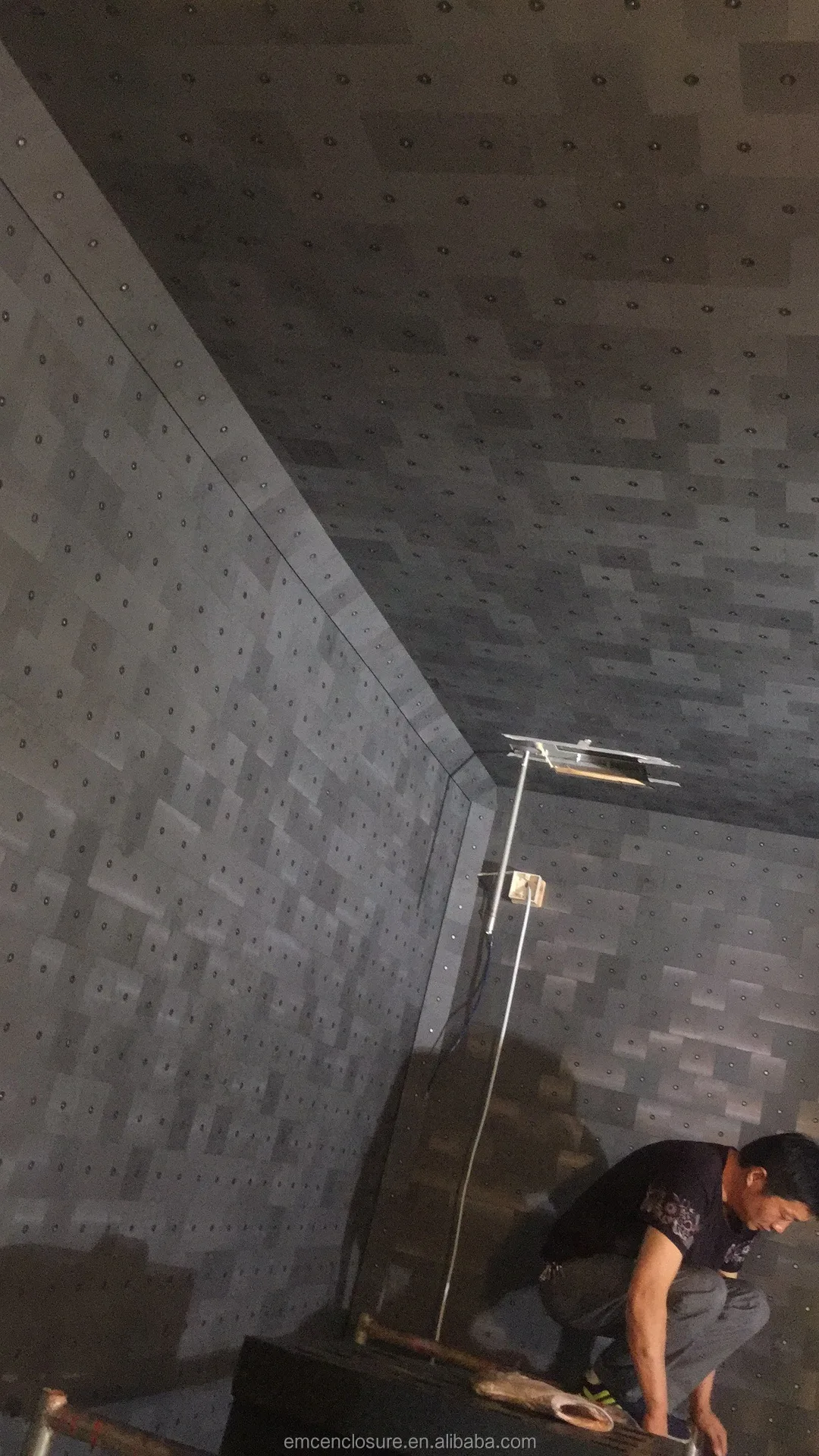

Used for EMC chamber
Packing for EMC chamber ferrite tile
We are HUAMING EMC from China. We are the orginal manufacturer for EMC products, include honeycomb vent, waveguide, EMC/EMI power flilter, EMC/EMI signal filter, RF shielding door, RF shielding windows, RF shielding cabinet, beryllium copper finger, copper wool and others. You could get details from WWW.HMEMC.COM .
