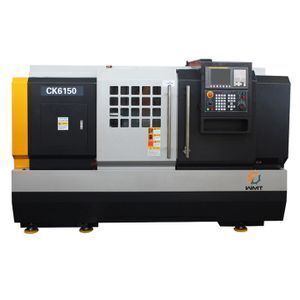

CK6150 1000mm 1500mm length CNC Lathe for threads making

Click here to contact

Product details

3-jaw chuck:	Manual;	Voltage:	220V 380V;
After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field maintenance and repair service;	Single gross weight:	3,000 KG;
CNC control:	GSK, Siemens, Fanuc;	Max. Spindle Speed (r.p.m):	1600rpm;
Max. Swing Diameter:	500mm;	Power(W):	7.5KW 11KW;
After-sales Service Provided:	Engineers available to service machinery overseas;	Logo printing:	OEM service;
Spindle bore:	82mm;	Brand Name:	WMT;
Selling Units:	Single item;	Type:	FLAT BED;
Package Type:	CNC Lathe CK6150 is packed into export standard poly-wood case;	Condition:	New;
CNC Lathe:	cnc lathe machine price;	Single package size:	262X180X203 cm;
Weight:	1500/1700/2100KGS;	Certification:	CE;
Delivery Detail:	0 days after payment;	Model Number:	CK6150X1000 CNC lathe;
Color:	OEM service;	Lubrication system:	automatic;
Warranty:	1 Year;	CNC or Not:	CNC;
Electric turret:	4 position;	Dimension(LWH):	2120X1420X2000MM;
Place of Origin:	Anhui China (Mainland);	Year:	new;
Automatic Grade:	Automatic;	Coolant system:	Available;

Technology Data

High rigidity casting bed

High precision spindle bearing

Bed guideways industively hardened

Specification	CK6150
Max.swing over bed	Ф500mm
Max.swing over carriage	Ф280mm
Max. cutting length	750/1100/1500mm
Rail width	400mm
Spindle nose	A2-8
Spindle bore	Ф82mm or Ф86mm;Optional Ф105mm
Taper of spindle bore	MT6
Chuck size	10"
Range of spindle speed	150-1600rpm or 3 steps:30-150,,10-500,150-1600rpm
X-axis travel	330mm
Z-axis travel	750/1100/1500mm
X/Z rapid speed	5/8m/min
X/Z screw	3206/5010
Electronic turret	4 or 6 or 8
Max.section of tool	25x25mm
Stroke of tailstock sleeve	150mm
Diameter/Hole of tailstock sleeve	Ф75mm/MT4
Main motor power	7.5kw or 11kw
Coolant pump power	180w
Overall dimensions L x W x H	2100/2420/2860/3320x1600x1830mm
Packing size L x W x H	2300/2620/3060/3520x1800x2030mm
Net weight	2700/2750/3100/3350kg
Gross weight	2600/3000/3450/3650kg
