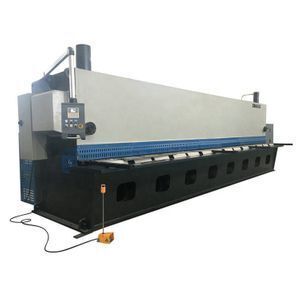

CNC plate mini hydraulic swing beam shearing machine

Supplier: Maanshan Gilde CNC Machine Tool Co., Ltd.
Region: Anhui, China
Contact: Mr ryan lee
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Main motor:	Simens;	Showroom Location:	None;
Certification:	ISO;	Brand Name:	GLDMA;
Packaging Detail:	Wooden cases or other seaworthy packing to ensure your machine's safety;	Electrics:	Schneider, France;
Port:	Shanghai;	Condition:	New;
Dimension(LWH):	3000 * 2000 * 1850mm;	Local Service Location:	None;
Max. Cutting Width (mm):	2500 mm;	Back gauge (mm):	20-600;
Voltage:	380V;	Cutting material:	All sheet metal;
Weight (KG):	4000 KG;	Blade Length (mm):	2500 mm;
Power (kW):	5.5 kW;	Voltage:	Customer Choose;
Usage:	Cutting metal sheet;	Warranty:	3 Years;
Key Selling Points:	Automatic;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Retail,Construction works ;
Supply Ability:	500 Set/Sets per Month shearing machine;	After Warranty Service:	Online support;
Material Intension (KN/ cm):	≤ 450;	Color:	Customer Choose;
Payment Terms:	L/C,T/T;	Automatic Level:	Fully Automatic;
Place of Origin:	Anhui China;	Max. Cutting Thickness (mm):	4 mm;
Throat Depth (mm):	100 mm;

QC12K-NC hydraulic swing beam shearing machine-ESTUN E21S system

swing beam plate shearing machine,

System:e21s China

DELTA frequency converter

Main motor:Siemens Germany

Valve:Bosch Rexroth Germany

Electrics:Schneider France

Oil pump:Sunny America.

Product description:

1. The design meets EU international standards. Welding parts uses tempering, vibration and other processing methods to eliminate stress ensuring the structural strength and rigidity of each component;All machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel with the latest technology.

2. Backgauge is adjusted by HIWIN high-precision ball screw and linear guide driven by E21S controller.

3. Ball screw and Linear guide structure, using frequency converter positions X axis to ensure accuracy, unique designed timing transmission mechanism, stable and reliable.Rigid upper beam runs on 8-point bearings with bending precision of +/-0.01 mm

4. Front safeguard rail adopts opening door cut off power,ensuring the operational safety.

5. Rapid adjustment mechanism for rearranging blade clearance, simple operation by hand and adjusting steplessly.

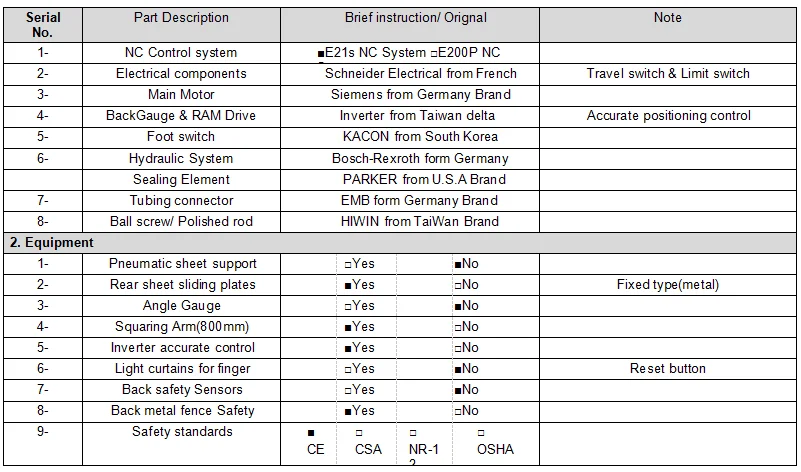

Standard Equipment:

1. ESTUN E21S NC controller system.

2. Linear guide rail and ball screw accuracy of 0.01mm(HIWIN,TAIWAN).

3. Steel mono-block construction.

4. DELTA frequency converter

5. Standard electrics from Schneider,France.

6. Standard oil tube connectors from EMB Germany.

7. Standard valves and oil pump from Bosch Rexroth Germany.

8. Standard main motro from Siemens Germany

9. Hydraulic and electrical overload protection
