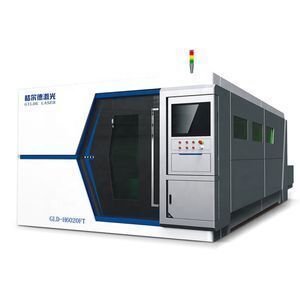

Excellent manufacturer selling high electro-optical conversion efficiency 500w fiber laser cutting machine

Supplier: Maanshan Gilde CNC Machine Tool Co., Ltd.
Region: Anhui, China
Contact: Mr ryan lee
Price: $35000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Home Use,Construction works ,Energy & Mining,Advertising Company;	Weight (KG):	5000 KG;
Payment Terms:	L/C,T/T;	Color:	Optional;
X/Y Axis Max Speed:	90m/ min;	Graphic Format Supported:	AI,PLT,DXF,BMP,DST,DWG,LAS,DXP;
After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Key Selling Points:	Automatic;
Condition:	New;	Showroom Location:	None;
Place of Origin:	Anhui China;	Laser Power:	500W, 750W, 1000W;
Application:	Laser Cutting;	After-sales Service Provided:	Engineers available to service machinery overseas;
Warranty:	2 years;	Usage:	cutting, punching;
Packaging Detail:	Wooden package or can be adjusted to confirm its safety;	After Warranty Service:	Online support;
Laser Source Brand:	RAYCUS;	Cooling Mode:	Water Cooling;
Laser Type:	Fiber Laser;	Supply Ability:	100 Set/Sets per Month 500w fiber laser cutting machine;
Type:	CNC;	Port:	shanghai;
Local Service Location:	None;	Warranty:	2 Years;
Cutting Speed:	90m/ min;	Brand Name:	GLDMA;
CNC or Not:	Yes;	Applicable Material:	Metal;
Cooling Mode:	Water Cooling;	Working Area:	3000*1500mm;
Laser Type:	Fiber Laser;	Certification:	CE;
Cutting Area:	3000*1500 mm;

GLDMA fiber cutting machine adopts famous IPG brand generator and original IPG laser cutting head from Germany. High precision belt module structure makes the cutting precision can reach as high as 0.01mm. Control system and independent control handle makes operation much more convenient.

Main Features:

Excellent beam quality: smaller focused spot makes more efficient work and cutting quality.

High cutting speed: its speed is twice of the same CO2 tube laser cutting machine

High stability: the world’s top fiber laser generator makes stable performance, and the key components of the machine owns the life of up to 150,000 hours

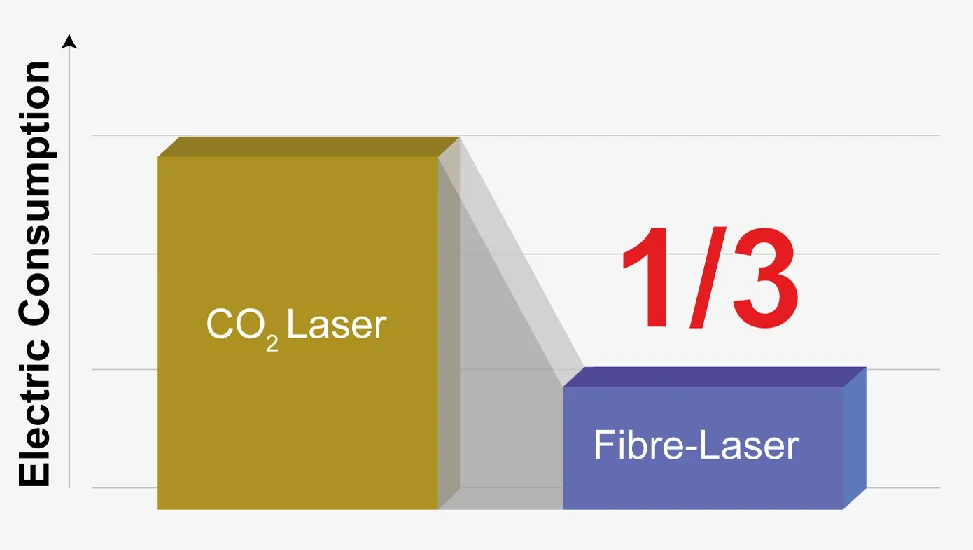

High electro-optical conversion efficiency: fiber laser is three times higher than CO2 laser and saving energy

Low use-cost: whole machine consumes less energy, only 25%-30% of traditional CO2 laser machine

Low maintenance cost: no laser working gas, it is by fiber optic transmission, without lens reflecting, can save a lot of maintenance costs

Smart operation and easy maintenance: optical fiber transmission, no need to adjust the optical path

Super flexible light guide effect: compact structure, satisfies flexible processing requirements

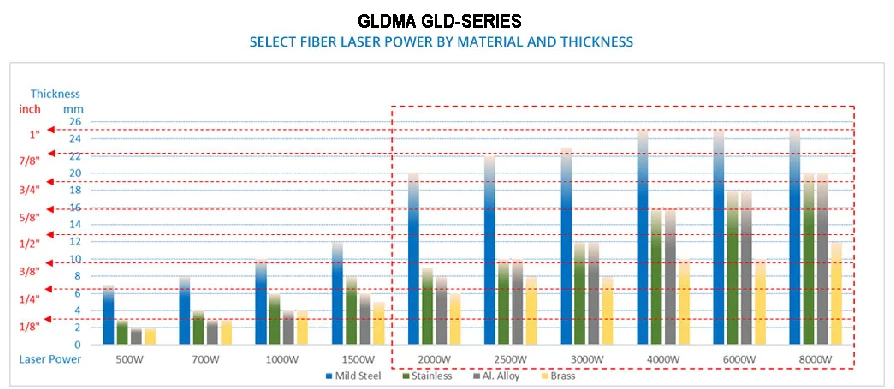

Select Fiber laser cutting machine:

Main configuration:

cutting system: CypCut,China
X, Y, Z-axis driven by servo motors
X, Y, Z-axis use Japan NSK precise bearings
Full CNC electric proportional valve,SMC,Japan
High-pressure pipeline system,AirTAC,Taiwan
Electrics,Schneider,France

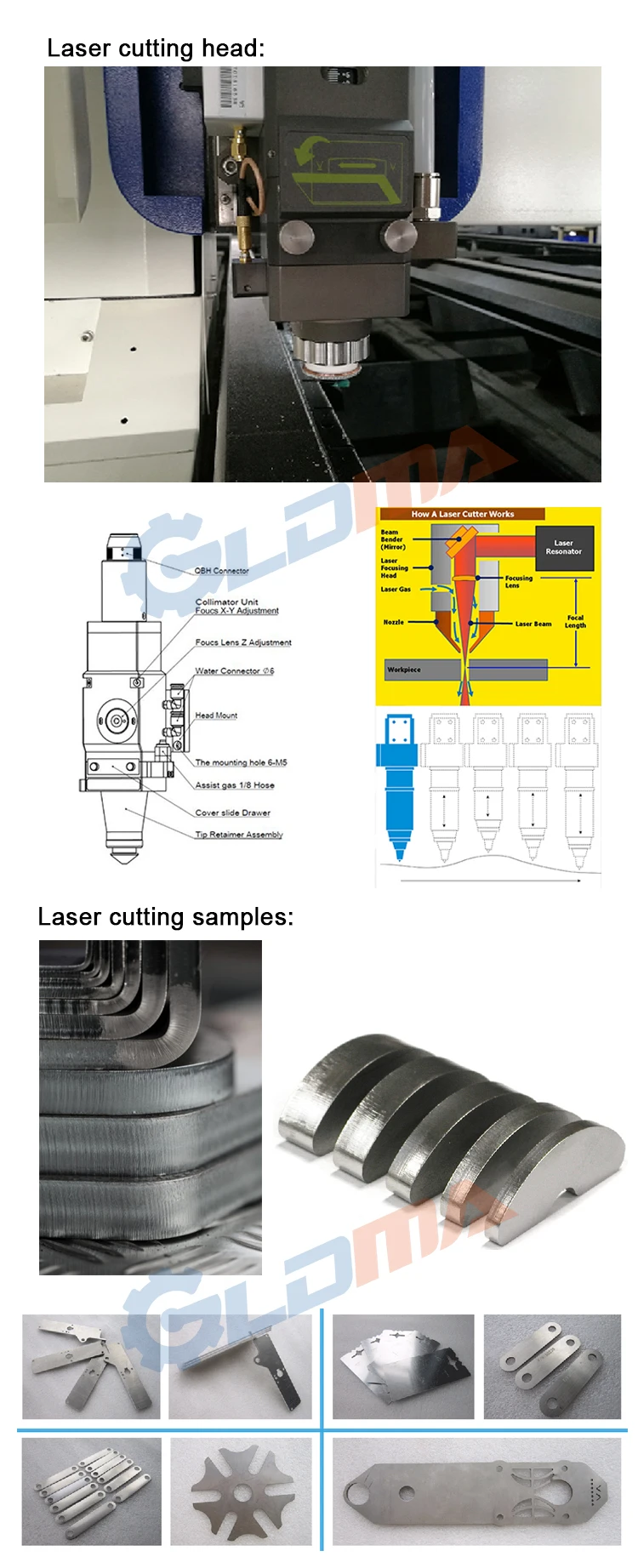

Switzerland Ray Tools laser cutting head
Gear & rack, YYC, Taiwan
Speed reducer, MOTOVARIO, France
Linear guide rail, HIWIN, Taiwan
DWT Cooler

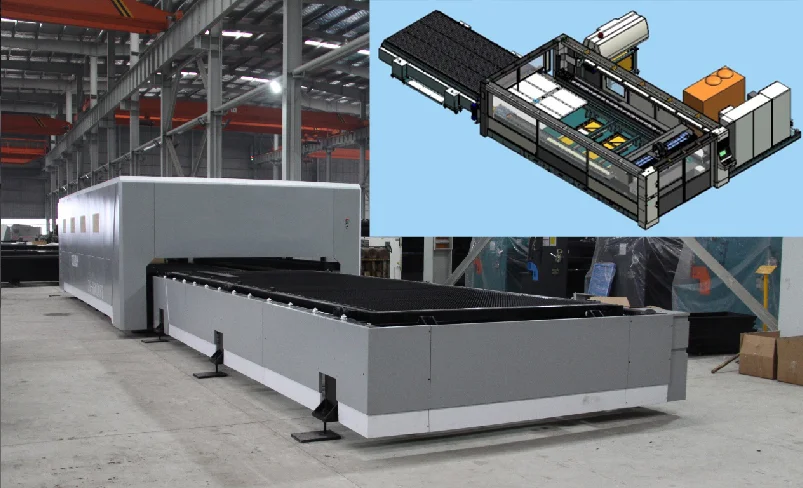

BLOCK of LASER CUTTING MACHINE:

Using high and low exchange pallet form, an exchange only 15 seconds.

Welding is made by welding apparatus and welding robots.

The hole worktable frame made by CNC 5 axes machining centers for accuracy.

All reference surfaces and connection holes are machined.

After all the whole process, the machine will maintain a high precision for a long time.

Parameter:

GLD3015F OPEN-TYPE DOUBLE-DRIVE FIBER LASER CUTTING MACHINE
Model	GLD3015F

Working Area	3000*1500mm
X-axis Travel	1500mm
Y-axis Travel	3000mm
Re-position Accuracy	±0.03mm
X/Y axis Max Speed	90m/ min
Power Rated Voltage/ Frequency	380V 50Hz
Laser Power	500-2000W
Power Requirements	380V/ 50Hz Three- Phase Four- Wire

GLD4015F OPEN-TYPE DOUBLE-DRIVE FIBER LASER CUTTING MACHINE
Model	GLD4015F

Working Area	4000*1500mm
X-axis Travel	1500mm
Y-axis Travel	4000mm
Re-position Accuracy	±0.03mm
Transfer Method	Precision Rack with Double Drive
X/Y axis Max Speed	90m/ min
Power Rated Voltage/ Frequency	380V 50Hz
Laser Power	500-2000W
Power Requirements	380V/ 50Hz Three- Phase Four- Wire

Components:

Serial No.	Name	Original	Note
1	Fiber Laser Source	USA IPG	standard
2	Laser head	RAYTOOLS from Switzerland	standard
3	Machine platform and accessories	China	standard
4	Gear Rack	Taiwan YYC	standard
5	Linear Rail	Taiwan HIWIN	standard
6	Control board	China Cypcut	standard
7	AC servo motor and drive	Japan Yaskawa	standard
8	Pneumatic component	SMC+AirTAG	standard
9	Chillers	China S&A	standard
10	Waste recovery	China	standard
11	Proportional valve	Japan SMC	standard
12	CNC system Software	China Cypcut	standard
13	Pressure valve	Japan CAK	standard
14	Relay	France Schneider	standard
15	Auto butt material dvice	Powered by GLDMA	8 sets air punmps +4 sets rollers
16	Auto alarm device
17	Core bore borad device
18	Aoto apply oil device
19	Auto control air system
20	Auto change air system
21	Drain slag system
