Manufacturer 3 rolls stainless sheet rolling machine

Product details
Supply Ability:400 Set/Sets per Month rolling machine;Machine Type:Roller-Bending Machine;
Warranty:3 years;Usage:roll bending;
Product name:plate rolling machine;Material Available:SS plate;
Max. Working Length (mm):2500 mm;Extra Services:End Forming;
Brand Name:EMAGCNC;Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Retail,Construction works ,Energy & Mining;
Raw Material:Sheet / Plate Rolling;Rolling speed:4 m/min;
Dia.of lower roller:400mm;Condition:New;
Motor Power (kw):37 kw;After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Local Service Location:None;Port:shanghai;
Place of Origin:Anhui China;After Warranty Service:Online support;
Weight (KG):1000 KG;Packaging Detail:Wooden package or can be adjusted to confirm its safety;
Color:Optional;Max. Plate Thickness (mm):40 mm;
Material / Metal Processed:Aluminum;Certification:ce;
No. of Roller:3;Dia.of upper roller:500mm;
Payment Terms:L/C,T/T;Automation:Automatic;
Showroom Location:None;Key Selling Points:Automatic;
Max rolling length:2500mm;

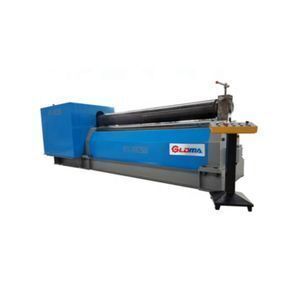

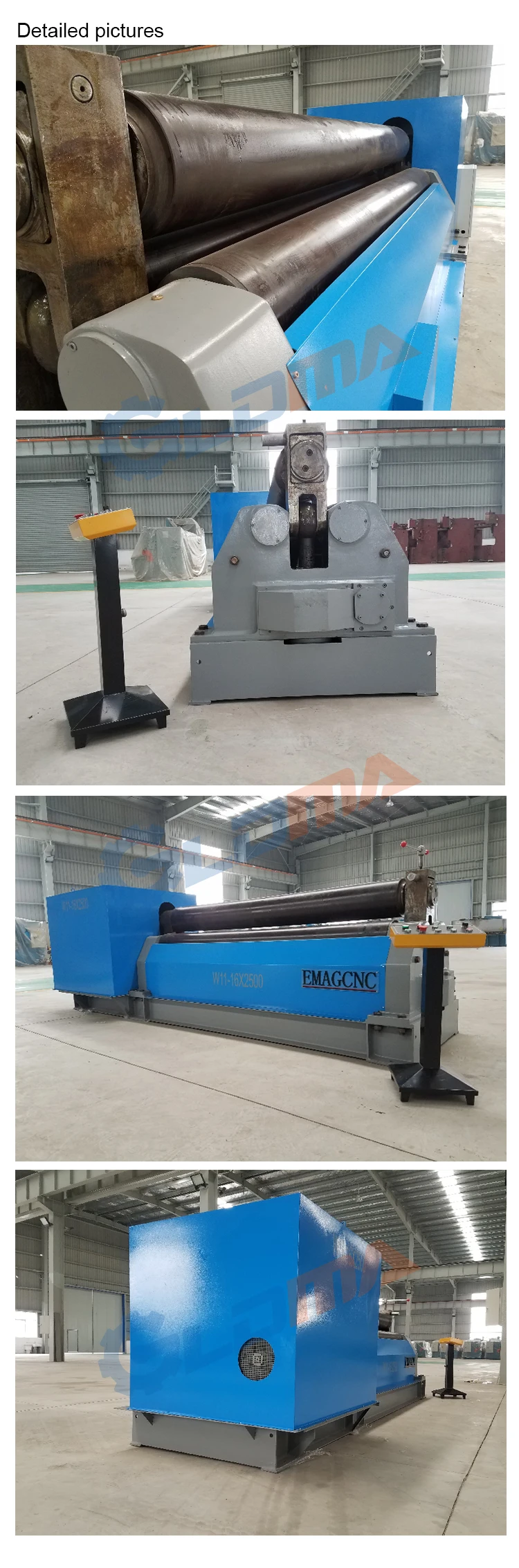

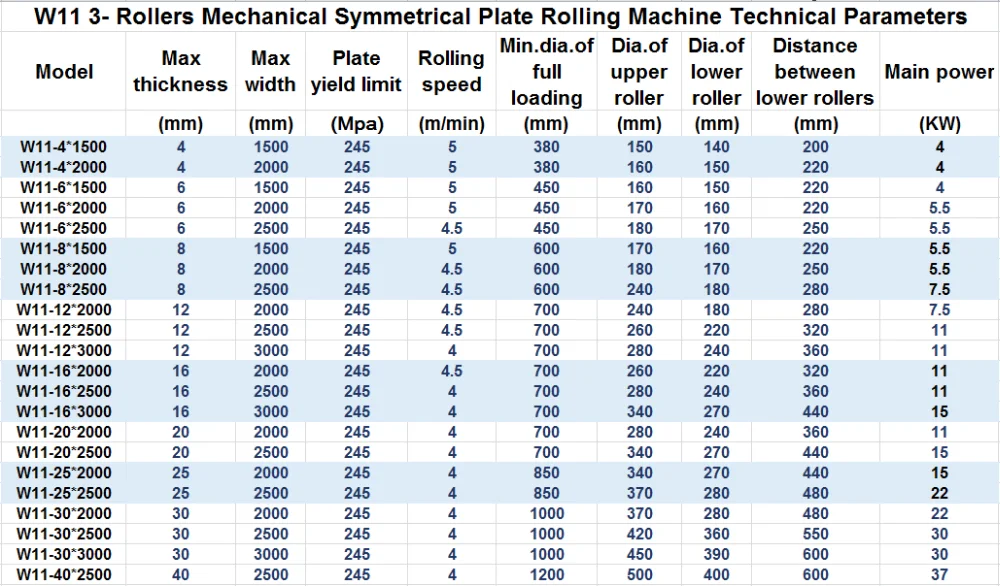

W11 series 3 rolls mechanical symmetrical rolling machine

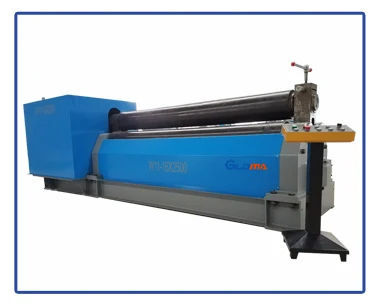

3-roller symmetrical mechanical roll bending machine

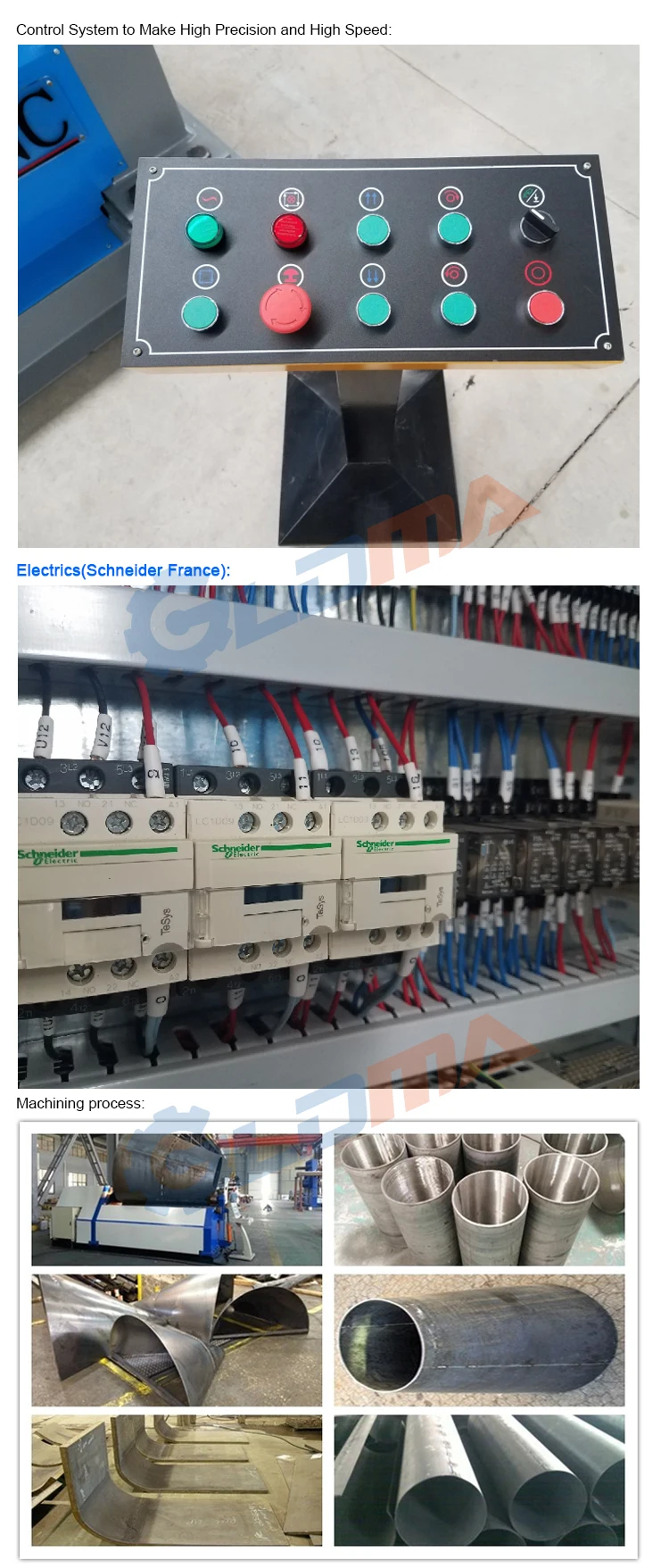

…Easy-to-use removable console

Two sets of digital output for easy positioning of two lower rollers

Suitable for thin and heavy plate, aluminum or stainless steel sheet rolling

Ferrules in full circle or varying radiuses can be done easily

Overload protection system

Extended roller shafts for profile and pipe rolling operation

Product description:

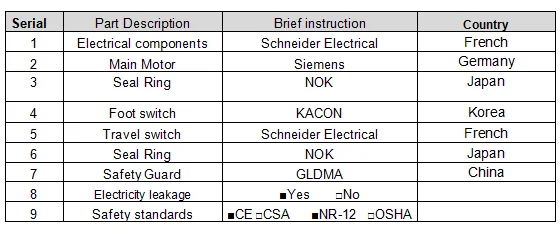

1. The design meets EU international standards.The fuselage eliminates internal stress by annealing and ensures higher precision and strengthAll machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel with the latest technology.

2. consists of the operation part and the transmission part which are welded at the whole bottom pallet. The operation part consists of left and right bearing housing, one upper roller, two lower rollers, lifting gears and some accessories. The lower roller is the main one, upper roller can be adjusted at the height. The transmission part consists of the main motor, speed-reducing motor and other accessories.The operation part consists of left and right bearing housing, one upper roller, two lower rollers, lifting gears and some accessories. The lower roller is the main one, upper roller can be adjusted at the height. The transmission part consists of the main motor, speed-reducing motor and other accessories.

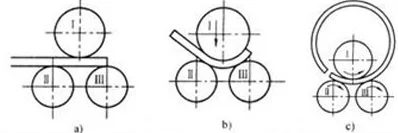

3. The structure style of this machine is 3 roller symmertrical.The top roller do the movement of elevation in the central position of the two bottom rolls.It’s transmitted by screw nut and worm gear.Two bottom rolls are main drive rolls.They rotate by the meshing between the output gear of the gear box and the bottom roller and supply the torque for bending plate.It’s cpmact,maintain and very easy to operate.

4.  The main components are: three 45 steel forged rollers, HRC3545, support frame is welded, process after being welded, the lower pallet is a welded part. Ball bearing screw and worm gear are 45 steel forged parts.

5. The lower roller is driven by the main motor through the main reducer. The main reducer output shaft transmits to the two lower rollers through a group of gear wheel. The roller driving direction is switched by the main motor.

6. The offloading device is used after the round cylinder have been finished. Before leaving the left bearing seat, raises the upper roller to standard height, and make the upper roller stop with balance pull rod at the bottom of upper roller. Then draw out pin shaft on the tilting bearing seat, overturn the tilting bearing seat, then the coiled product can emerge from one end of the upper roller.
