Startnow S-37/S185LDF Small Multilingual Fiber Optic Fusion Splicer For Core Alignment Fusion Splicer Automatic Fusion Splicer

Supplier: Nanjing Startnow Opto-Electronics Co., Ltd.
Region: Jiangsu, China
Contact: Ms Amanda Zhang
Price: $22081.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Operating mode:	Pulse	Applicable fiber:	SM/MM/DS/NZDS/EDF/DCF/LDF
Split length:	13~15mm (nominal: 13mm)	Gross weight per piece:	12.000 kg
Typical Splice Loss:	Single mode: 0.03dB; Multimode: 0.02dB; DS: 0.05dB	Mechanical test report:	not available
Single pack size:	33X21X17 cm	Origin:	Jiangsu, China
Whether CNC:	Yes	Coating Diameter:	250-800 microns
Configuration:	desktop	feature:	Rugged body, waterproof, dustproof and shockproof
Video outbound inspection:	not available	Cladding Diameter:	125-500u7m
Electrode life:	125um: 3000 arcs; 250um: 1000 arcs	Cutting area:	125-500 microns
application:	laser cutting	Alignment method:	core to core
Health status:	new	Applicable industries:	Manufacturing plants, mechanical repair shops, communication fiber optic equipment
heating method:	Manual / Auto	Main selling points:	multifunctional
product name:	Portable Fiber Fusion Splicer	Applicable material:	glass, crystal
Sales unit:	single product	Warranty:	1 year
Operating products:	core to core	Weight (kg):	12 kg
Operating mode:	Manual / Auto	Core components:	Fiber Fusion Splicer
brand:	Start now	Core component warranty:	1 year
Laser type:	fiber-optic laser	Laser source brand:	Start now
Packaging Details:	Bubble Film+Carton Startnow S-37/S185LDF Small Multilingual Fiber Optic Fusion Splicer For Core Alignment Fusion Splicer Automatic Fusion Splicer

Related Products

Product Description

portableFiber Fusion Splicer

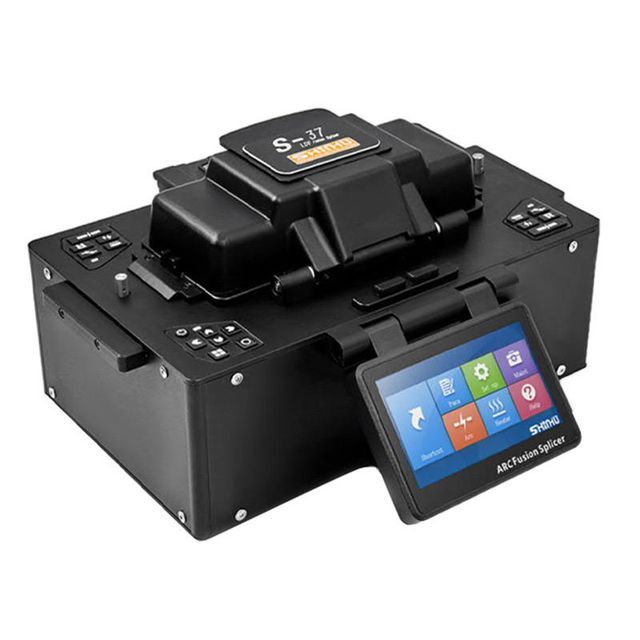

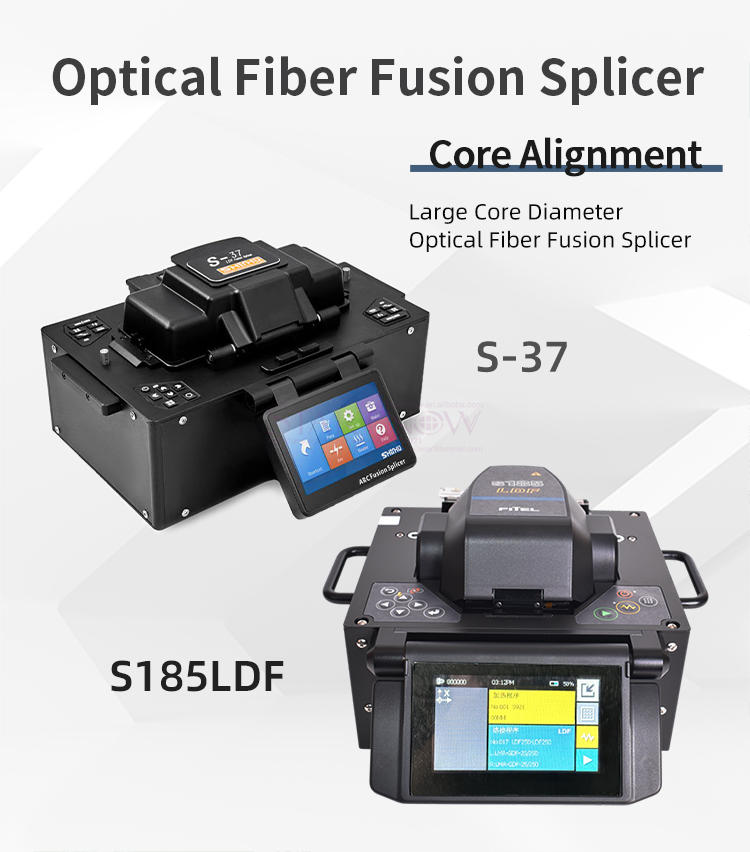

Model: S-37/S185LDF
Cladding diameter: S37(125-500um), S185LDF(80-500um)

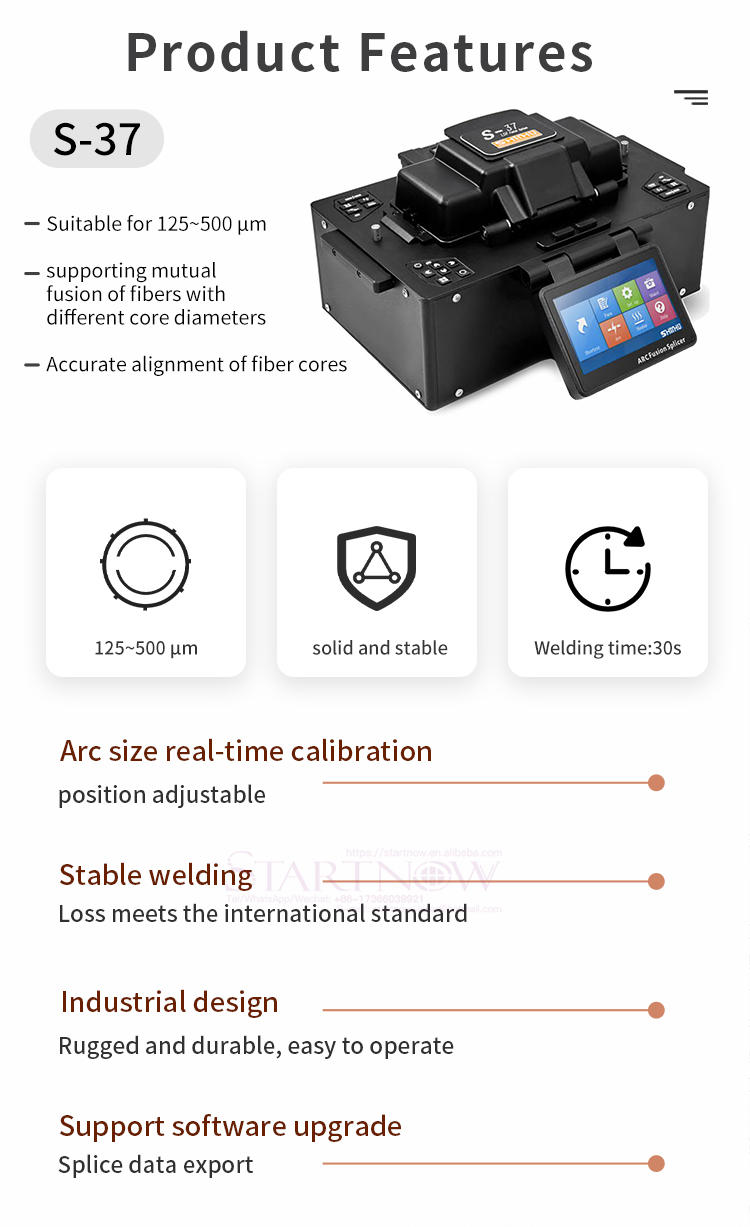

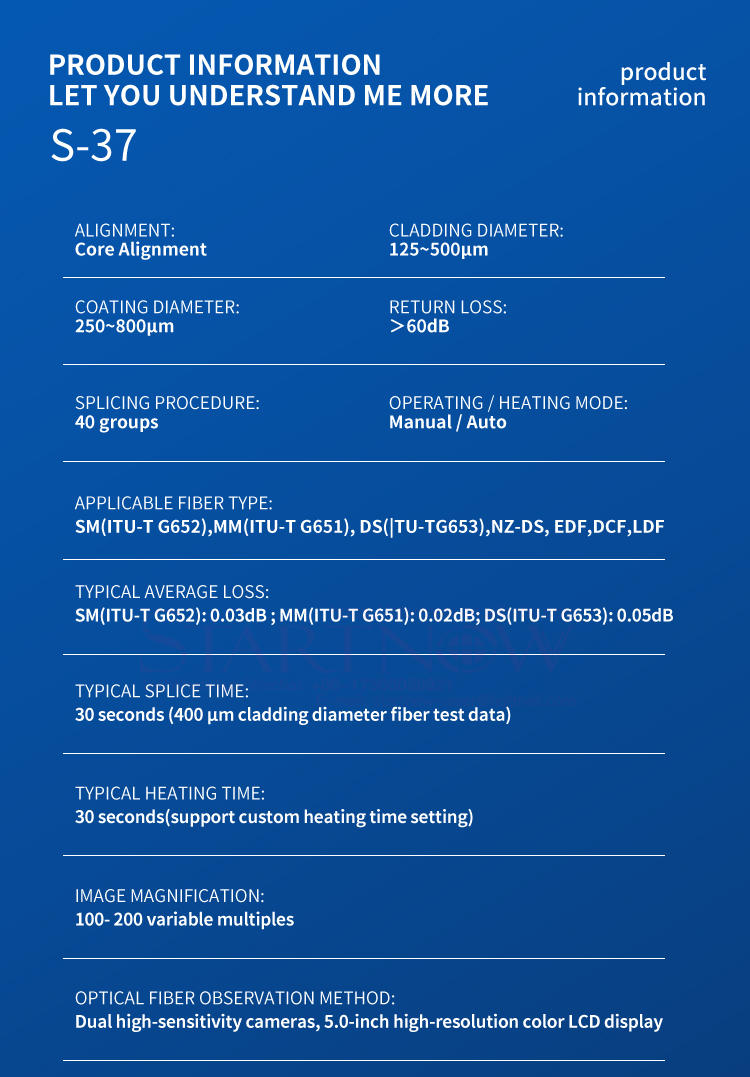

S-37 features:
※Conform to CE/Rohs international standard
※Precise alignment, world standard melt loss
※ Real-time ARC calibration, ARC position is adjustable
※Sturdy body, waterproof, dustproof and shockproof
※Easy maintenance and easy electrode replacement
※USB interface is used for software upgrade and record export
※Suitable for optical fibers with a cladding diameter of 125um~500um
※Support mutual fusion splicing of fibers with different core diameters
※Support 8000/100 sets of fusion records/fusion images

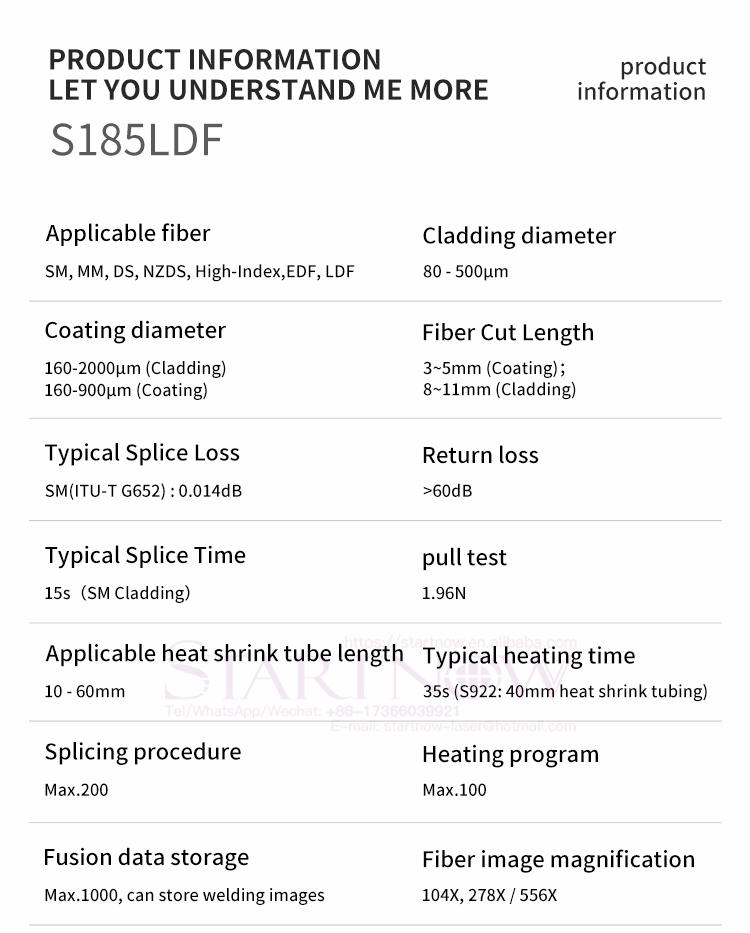

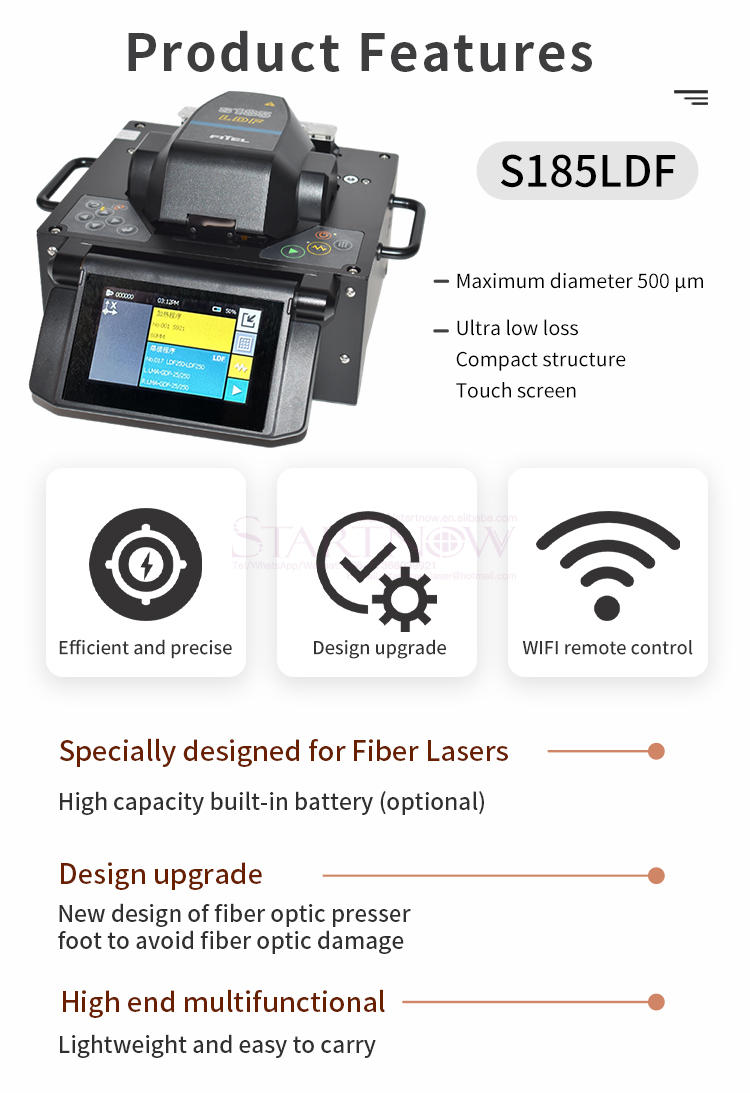

S185LDF Features:
※Low loss, fiber safety, less fiber damage.
※Centering accuracy (S185LDF, 0.03m)
※Optical fiber tilt (S185LDF,0.1°)
※Fiber movement (S185LDF L&R Fibers)
Application fields: fiber laser source, medical treatment, etc.
