Laser Cutting Machine for Sheet Metal Products from IgoldenCNC

Product Details

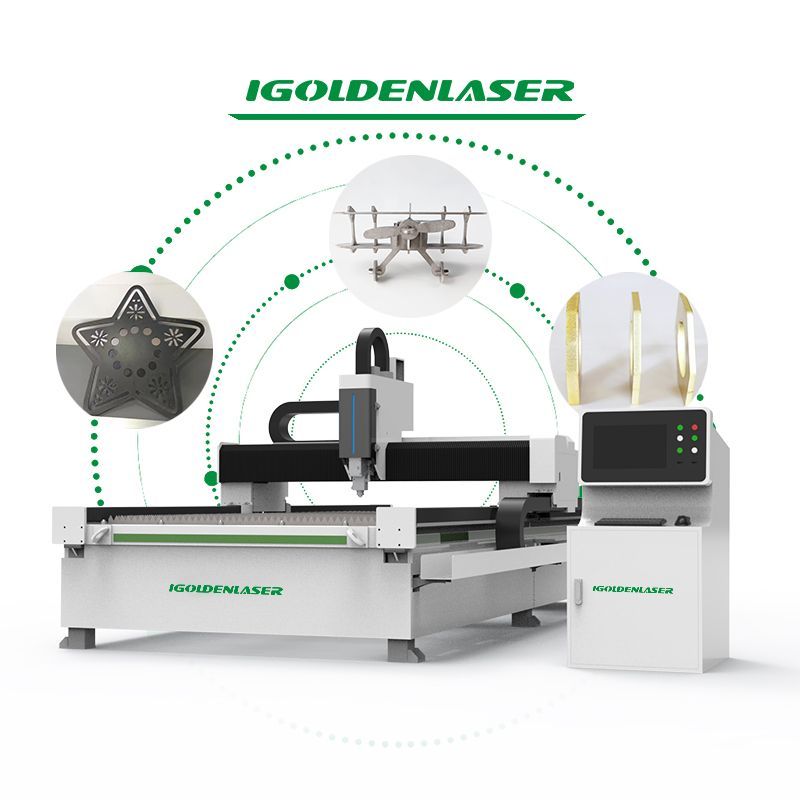

Sheet Metal Laser Cutter

The sheet fiber laser cutting machine is a laser cutting machine specially designed for sheet metal, which uses a fiber laser generator as power. It uses the newly developed fiber laser generator, which can output a high-energy-density laser beam on the surface of the workpiece, melt and vaporize the area irradiated by the laser, and realize high-speed, high-precision perfect automatic cutting.

Most CNC laser cutting machines have a processing range of 0.3 mm to 25 mm, which is suitable for higher power models. The laser cutting machine can cut a variety of materials, including low carbon steel, stainless steel, aluminum, zinc steel, pre-galvanized steel, copper, brass, etc. CNC laser cutting uses various gases to assist the cutting process, including compressed air, nitrogen, and oxygen.

Laser Sheet Metal Cutter Advantages

Using a laser cutter for sheet metal offers numerous benefits:

Precision: Achieve intricate designs with tolerances as tight as ±0.001 inches.
Speed: Faster cutting speeds compared to traditional methods like plasma or waterjet cutting.
Versatility: Suitable for various metals, including stainless steel, aluminum, brass, and copper.
Minimal Waste: Optimized cutting paths reduce material waste.
Automation: Many laser cutters are equipped with CNC (Computer Numerical Control) systems for automated and repeatable operations.
The laser head adopts two-point centering adjustment, and the focusing mechanism is driven by servo motor, which can significantly improve the piercing efficiency.

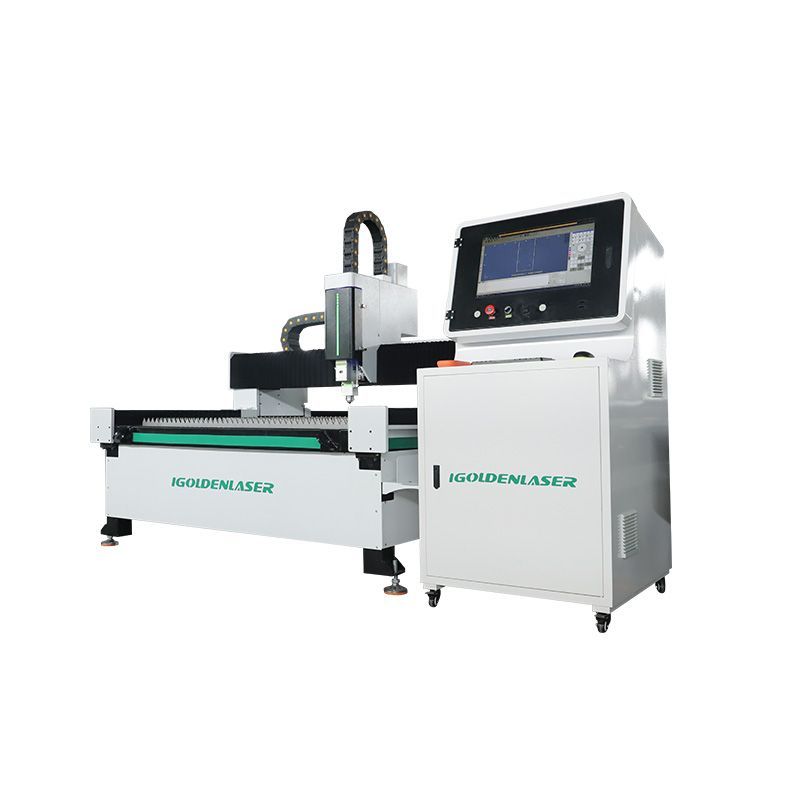

Laser Cutter for Sheet Metal

Technical indicators		parameter
Model		iGR-FH 3015
Working area		3050*1530mm
X axis stroke		1550mm
Y axis stroke		3100mm
Z axis stroke		60-120mm
Accuracy	X, Y, Z axis positioning accuracy	0.03mm
Accuracy	X, Y, Z axis repositioning accuracy	0.02mm
Speed	X, Y axis max. running speed	120m/min
	Z axis max. running speed	80m/min
	X, Y, Z axis max. accelerated speed	0.8G
Power supply	Phase	3
	Nominal voltage	380V
	Frequency	50/60Hz
Machine body	Max. working loading	800kg
	Body weight	4700kg
	Size(LWH)	47002200 2000
Laser power		1000w/ 1500w/ 2000w/ 3000w/ 6000w/12000w
Worktable optional		40002000mm/ 60002000mm/ 6000*2500mm

The maximum power of the machine can reach 12000W, the dynamic performance of the equipment is good, the servo response is fast, the slit is small, and the thermal effect is small. It is a good choice.

Get Price!

IGOLDEN Cutting Head

By optimizing the structural design of the cutting head to extend its service life,

Dual dust protection design, eliminate lens contamination risk, improve user experience.

Intelligent Control System

FANGLING plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.

Heavy-duty Welding Body

Higher tensile strength and dimensional stability, Effectively improve the accuracy of the bed, reduce the processing error of the workpiece.

Max Laser Source

Small weight, light weight, easy integration, high performance, more stable processing; The optical path module has good protection and high safety.

Application of Fiber Laser Cutting Machine

Laser cutting machines can quickly cut alloys, carbon steel, stainless steel, copper, aluminum, gold, silver, and titanium, making them ideal for diverse industries. They are frequently employed in manufacturing billboards, electrical enclosures, fences, doors, windows, and building materials. Additionally, their precision and efficiency make them indispensable for producing automotive panels and components, ensuring high-quality results across various applications.
