High quality lab kneader

Supplier: Nantong Zhenhuan Trade Co., Ltd.
Region: Jiangsu, China
Contact: Mr Franks Cao
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	The lab kneader can be packed in wooden case, and loaded in 20' container;	Angle of tilting trough:	Approx.95°;
Power(W):	1500;	Material of shaft:	stainless steel;
After-sales Service Provided:	Field maintenance and repair service, Video technical support, Field installation, commissioning and training, Online support;	Model Number:	NHZ-5;
Voltage:	380V;	Dimension(LWH):	1280525850mm;
Condition:	new;	Who capacity:	6L;
Revolution of blade:	front/rear 63/43rpm;	Brand Name:	Zhenhuan;
Power of main motor:	1.5KW;	working capacity:	4L;
Certification:	CE;	Port:	Shanghai;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Supply Ability:	15 Set/Sets per Quarter;
Weight:	about 600kg;	Warranty:	1 year from B/L date;
Place of Origin:	Jiangsu China;	Reducer:	BWD1-23-1.5;
Material of blade:	cast stainless steel;	Discharging way:	Tilt trough manual;
Blade type:	Double sigma blades;

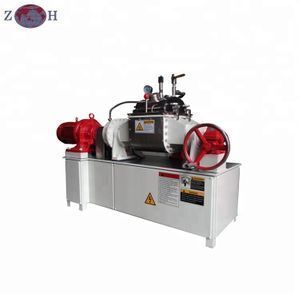

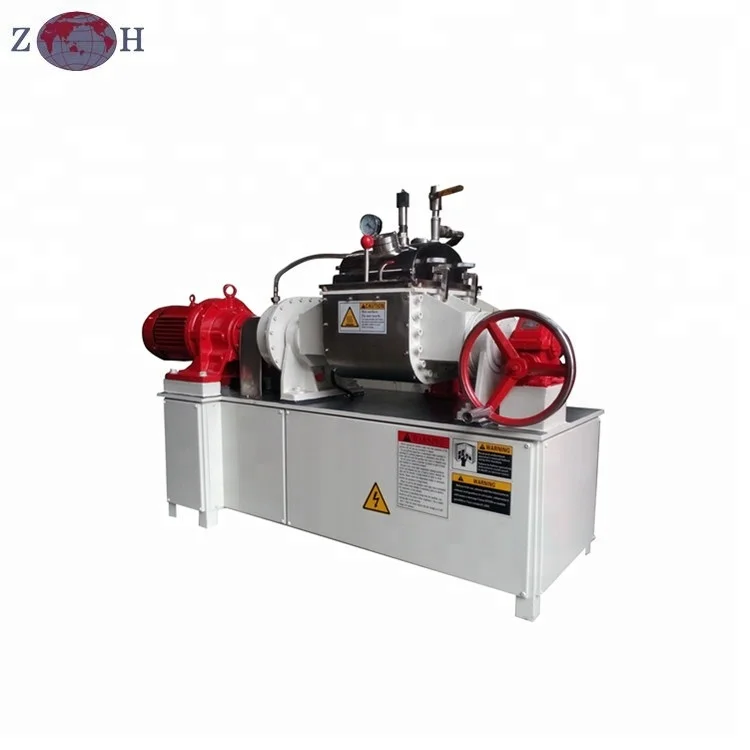

LAB KNEADER NHZ-5

I Description of lab kneader

This model is specially designed for lab (cellulose fabric), easy maintenance, good sealing, no leakage, corrosion resisting and good heating efficiency

Working Principle
Main motor drive two blades to do a reverse direction rotation in the trough through the reducer slowdown. Reverse direction rotation by the blade brings shear stress between the two blades and the blades with trough, reach an effect to mix, knead ,crush and disperse the materials.Discharge the material through tilting trough by hydraulic cylinder.

II Main technical data of lab kneader

No.	Parameters	NHZ-5
1	Whole capacity	6 L
2	Working capacity	4L
3	Power of main motor	1.5kW/AC380V/50Hz
4	Reducer(gear unit)	BWD1-23-1.5
5	Blade type	Double Sigma blades
6	Material of blade	Cast stainless steel
7	Material of shaft	Stainless steel
8	Revolution of blade	front/rear 63/43rpm
9	Distance between blade and trough	Less than 2 mm
10	Distance between blade and trough end	Less than 2 mm
11	Packing of shaft	PTFE
12	Heating way	electric heating 1.5kW or by steam
13	Discharging way	Tilt trough manual
14	Angle of tilting trough	Approx.95°
15	Open lid	manual
16	Seal of lid	viton
17	Limit vacuum	-0.09MPa
18	Water loop vacuum pump	XD-20
19	Speed bleeding air	20m3/h
20	coating	High quality epoxy based paint.
21	Appearance of size( L×W×H )	Approx.1280×525×850

NOTE: We will offer you price referring to your detail request, so please kindly inform us of the material, viscosity, density, etc, and other requirements you prefer, and the special offer will be given.

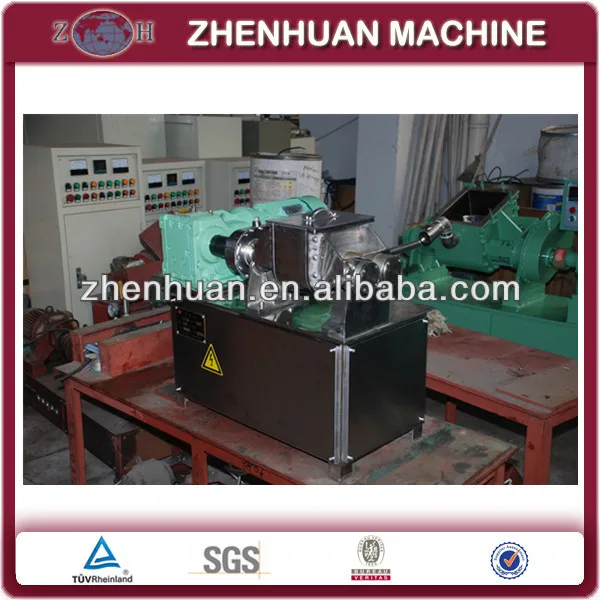

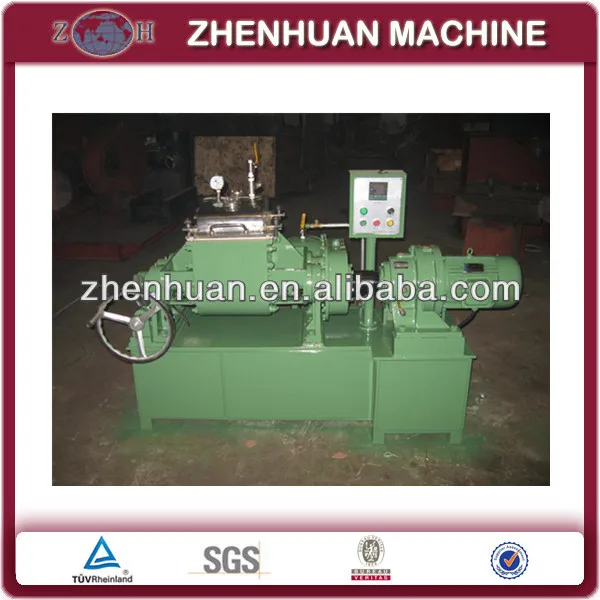

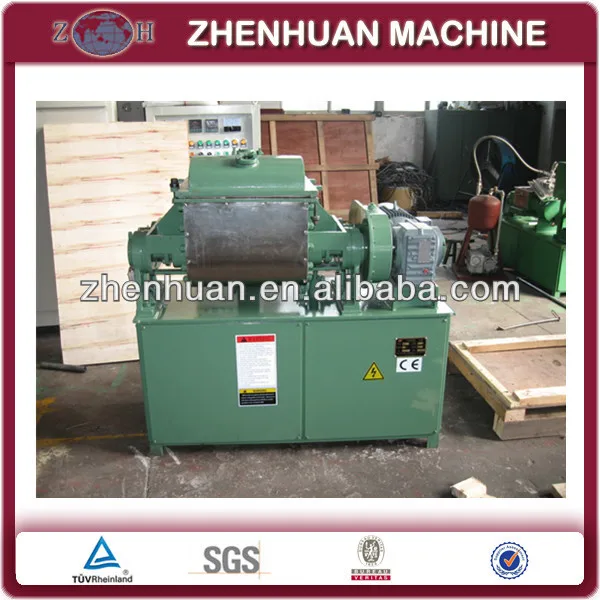

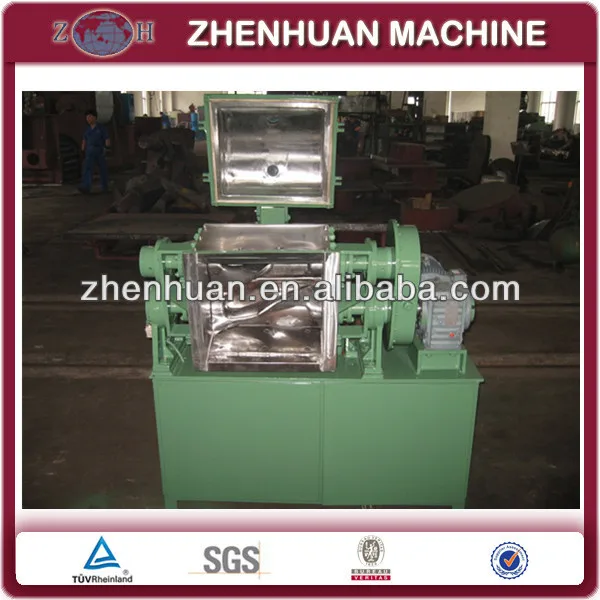

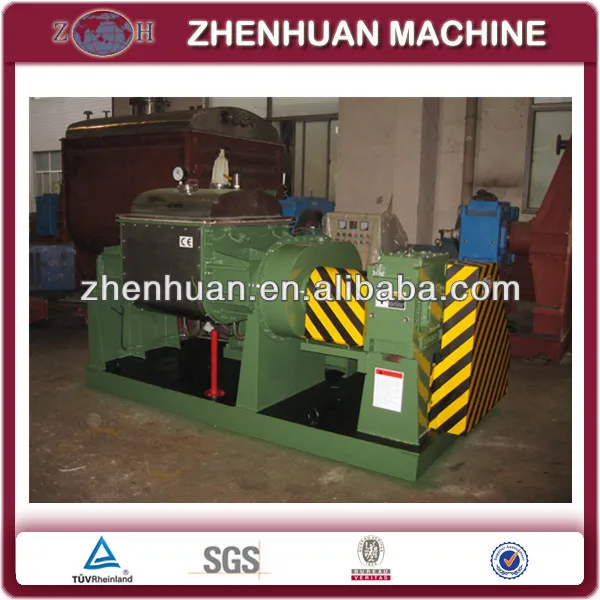

The pictures above are just for your reference.
