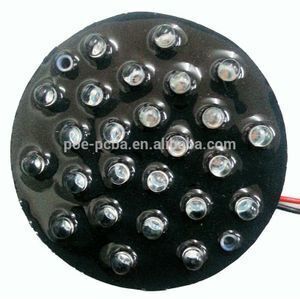

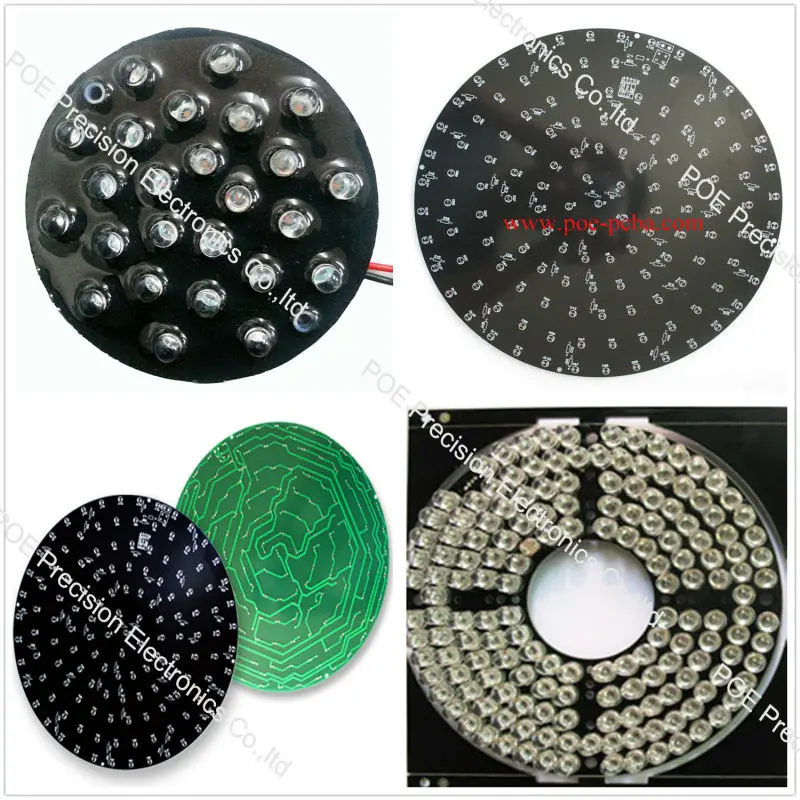

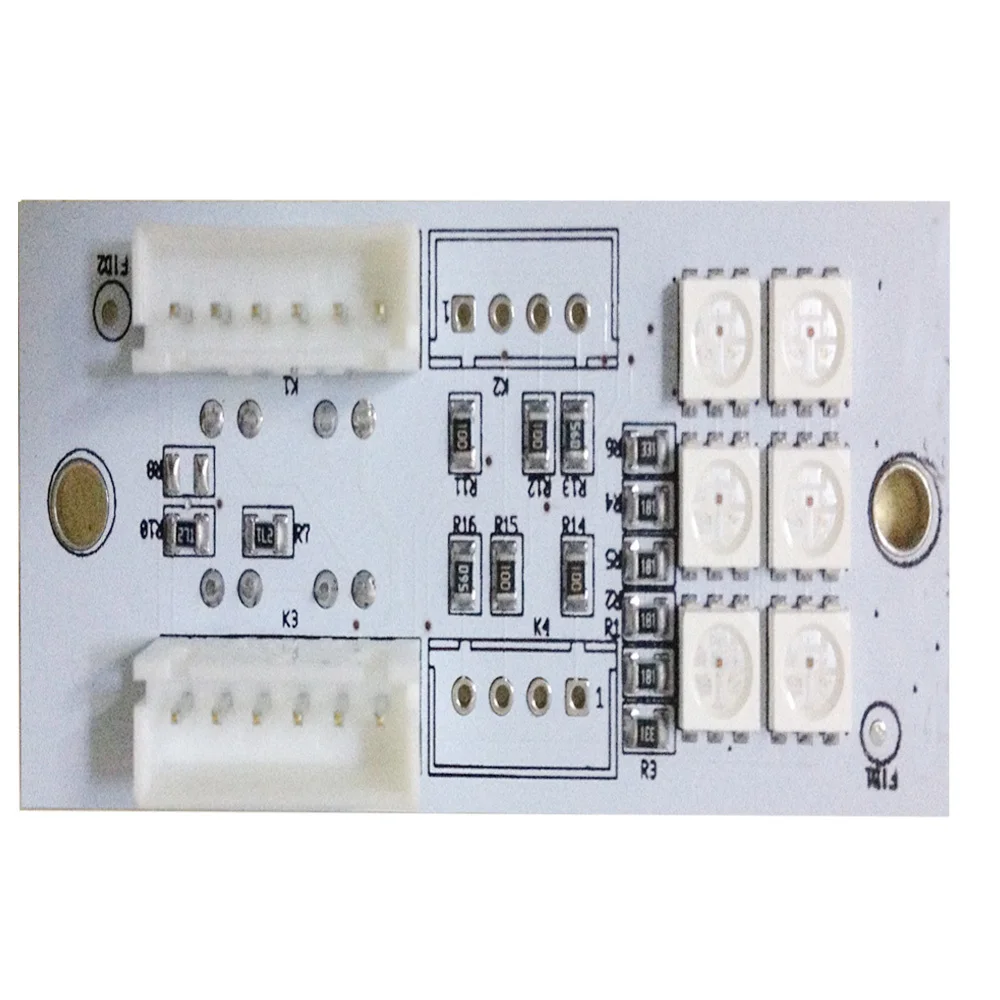

LED Light SMT PCB Board MCPCB Aluminum Circuit Board LED PCB

Product details
Packaging Detail:PCB: Vacuum Packing with Carton Box PCBA: ESD Packing with Carton Box FR4 LED PCB Board Printed Circuit Board LED Circuit Board;Port:Shenzhen,Hongkong;
Application:Electronics Device;Copper Thickness:1 oz;
Board Thickness:1.6 mm;Supply Ability:20000 Square Meter/Square Meters per Month;
Certificate:ROSH. ISO9001. UL;Payment Terms:L/C,T/T,Western Union,Paypal;
PCB Standard:IPC-II Standard;Min. Line Spacing:4 mil;
Min. Line Width:4 mil;Base Material:Aluminum;
Min. Hole Diameter:0.1 mm;Brand Name:POE;
Solder mask color:white;Plugging vias capability:0.2-0.8mm;
Hole tolerance:PTH: +/-3mil NPTH: +/-2mi;Surface Finishing:HASL;
Max copper thickness:6 oz;Product name:Aluminum Circuit Board LED PCB;
Impedance Control Tolerance:±5%;Service:One-stop Service;
Model Number:POE331;

POE has the capability to manufacture pcb ranging from basic single sided boards up to 28 layer multilayers ,and provide one stop turnkey services, including pcb layout, manufacture, assembly, components source and function testing. The superior service we offer our customers is the key to our success and our mission has remained the same since we started business in 1996: to provide high quality, technically advanced products within the customer’s timescales. This commitment, combined with the wealth of experience and expertise we have built up over the years, means we can offer a total solution to our customers PCB requirements – from front end engineering through to in time deliveries.

Manufacture capability

Item

Capability

Base Material

FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon

Layers

1-22

Finised inner/outer copper thickness

1-6OZ

Finished board thickness

0.2-7.0mm

Min hole size

Mechanical hole: 0.15mm

Laser hole: 0.1mm

Plugging vias capability

0.2-0.8mm

Outline profile

Rout/ V-cut/ Bridge/ Stamp hole

Surface treatment

HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP…

Controlled Impedance

+/-5%

Supply Ability

PCB

Layer

Quick Turn/Usual Time

 Mass production

2L

24hours/ 4-5days

8-10days

4L

48hours/ 6-7days

10-12days

6L

72hours/ 7-8days

12-14days

8L

72hours/ 8-10days

 16-18days

10L

96hours/ 12-14days

18-20days

...

...

...

Assembly

Quantity

Usual Time

<20pcs

2days

20-100pcs

3days

100-1000pcs

6days

>1000pcs

Depend on BOM

Production line

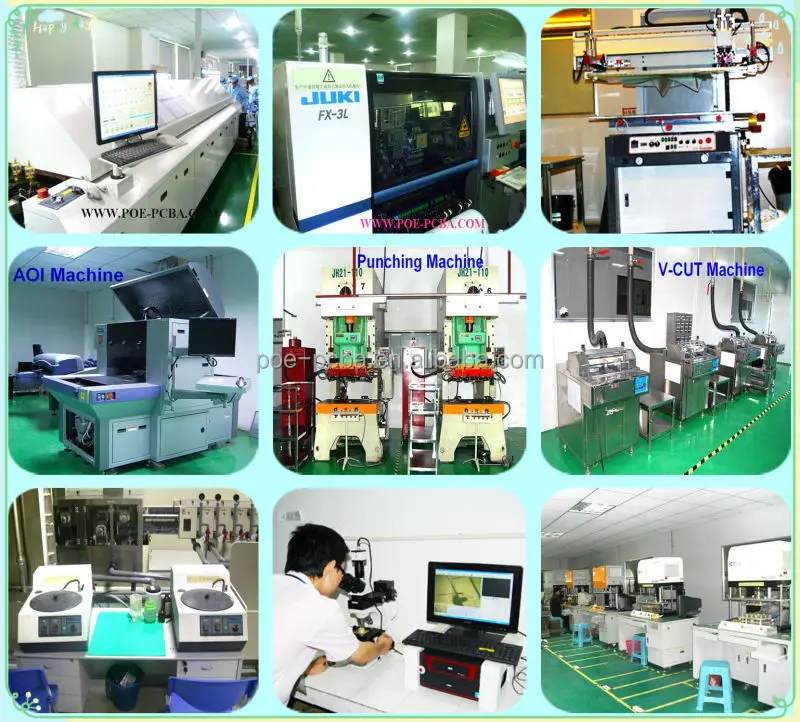

     POE has invested in the best equipment, environment and staff training. We have a production capability for standard and HDI , Rigid, RF and high frequency  PCBs, together with throught hole and min 0201 chips, 0.2mm pitch BGA balls SMD soldering, in small batch, mid volume and high volume quantities.Production showcase

Application fields/Customers

Certification

Payment/Package

Why us?

Quality

IPC-600G classⅡand IPC-6012B classⅡstandards.

ISO9001:2008 Quality Management

Probe flying test and Electrical test

UL certified Rating 94v-0

X-ray Inspection,

Automated Optical Inspection (AOI)

In-circuit Testing (ICT) and Function testing

ROHS compliance.

Capable

POE offers one-stop service from PCB designing, manufacturing, assembling, components soucing,programming to testing.

Confidential and Nondisclosure Agreement

 We protect the Intellectual Property for our customers in the whole process. Our staff of trained professionals are all working under a strict confidentiality contract and keep the business secrets.

Flexibility

Customers-oriented. We forever center on customers’ demands, constantly update and introduce into technology, fully understand customers’ requirements and offer our professional suggestion.
