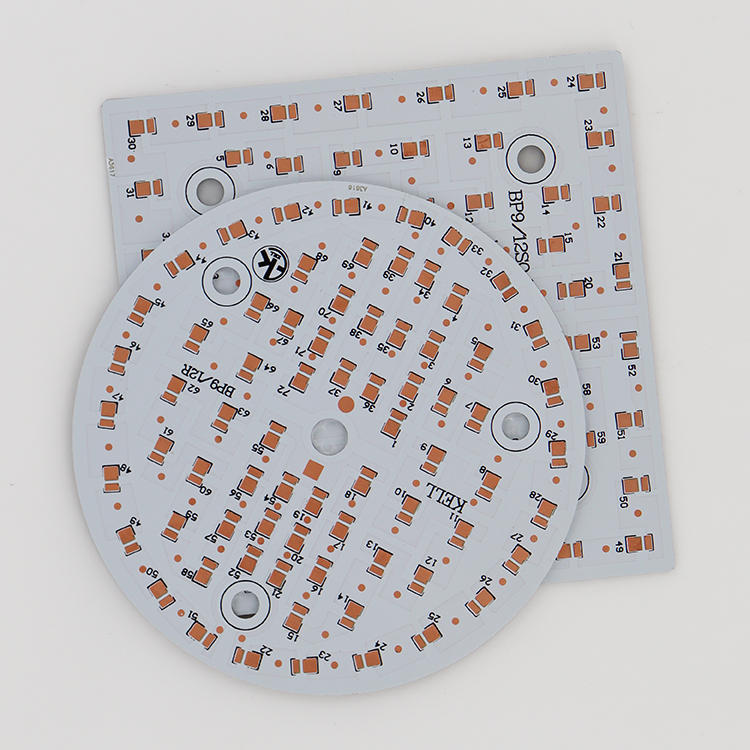

Printed Circuit Board Blank Pcb Round Size Square Size mcpcb Size For 3w 5w 7w 9w 12w 15w 18w Led Bulb

Supplier: Hubei Zhongpei Electronics Technology Co., Ltd.
Region: Hubei, China
Contact: Ms Sukie Tshu
Price: $0.06 / 5 - 9999 pieces
$0.02 / >=10000 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Circuit diagram:	10 series	Material:	Aluminum base
Copper foil thickness:	18um	Substrate:	Aluminum base
Application LEDs:	5050 10 pieces	Copper thickness:	0.5oz, 18um
Packaging Details:	Carton vacuum packed.	Plate thickness:	1.0mm
Supply capacity:	2000 square meters per day	port:	SZ, HK, NB, SH ports

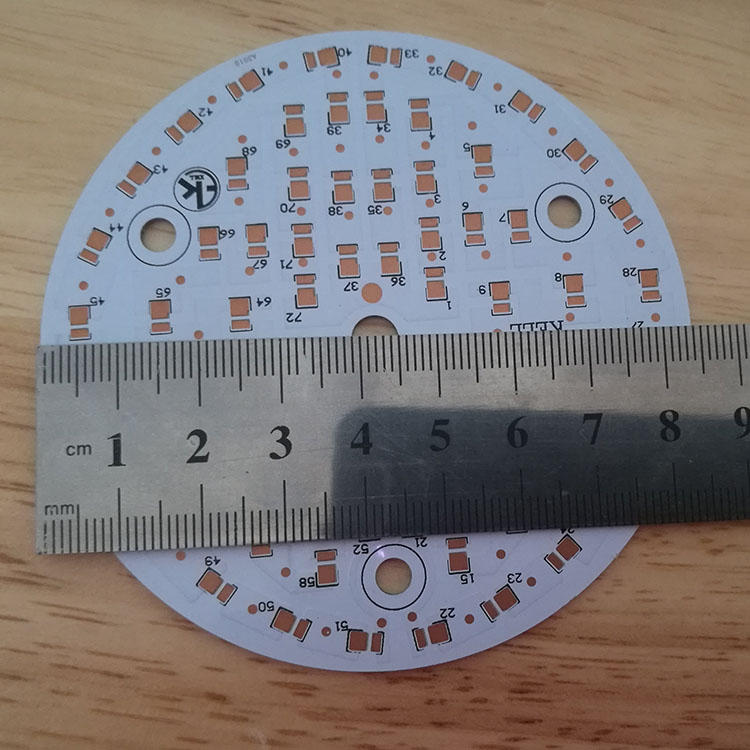

Board Dimensions:	49*49MM	model:	A3783--D1OM

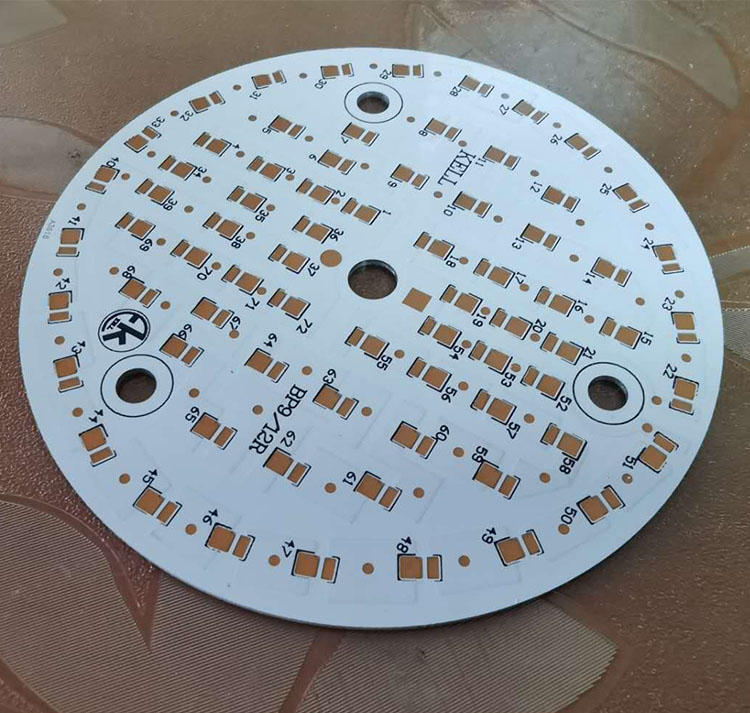

Product shape:	round	Package preview:
Minute line width:	0.2mm	Origin:	Hubei, China
Minute line spacing:	0.2mm	Minute Aperture:	0.25mm
application:	3w 5w 7w 9w 12w 15w 18w LED bulb light	diameter:	49mm
Solder mask color:	white	legend:	silk screen black
type:	single sided printed circuit board	Plate thickness:	1.05mm
brand:	Compi	payment terms:	wire transfer
Surface treatment:	OSP

Product Description

Printed Circuit Board Blank Pcb Round Size Square Size mcpcb Size For 3w 5w 7w 9w 12w 15w 18w Led Bulb

model	A3620-D1OM
plate	1.0mm
copper thickness	30um
PCB Dimensions	53*53mm
panel size	116*328/12
Material usage	88%
Solder mask	Heat resistance soldering
Solder mask color	milky/super white
legend	black silk screen
surface treatment	OSP (organic copper passivation)
Environmental cutting	CNC
test	AOI test, electronic test, eye check, dimension check
use circuit	Suitable for 9W DOB COB bulb light, 20W light bulb lighting
application	Custom led lights, OEM Led lighting, bulb lights.
