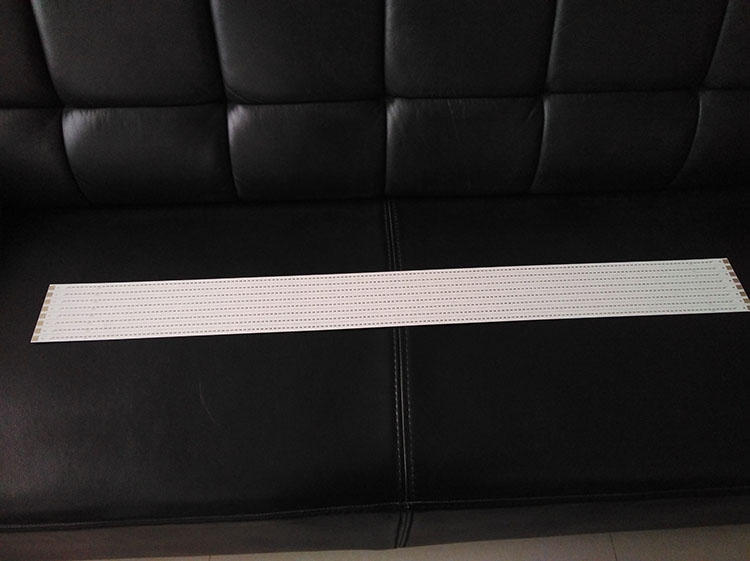

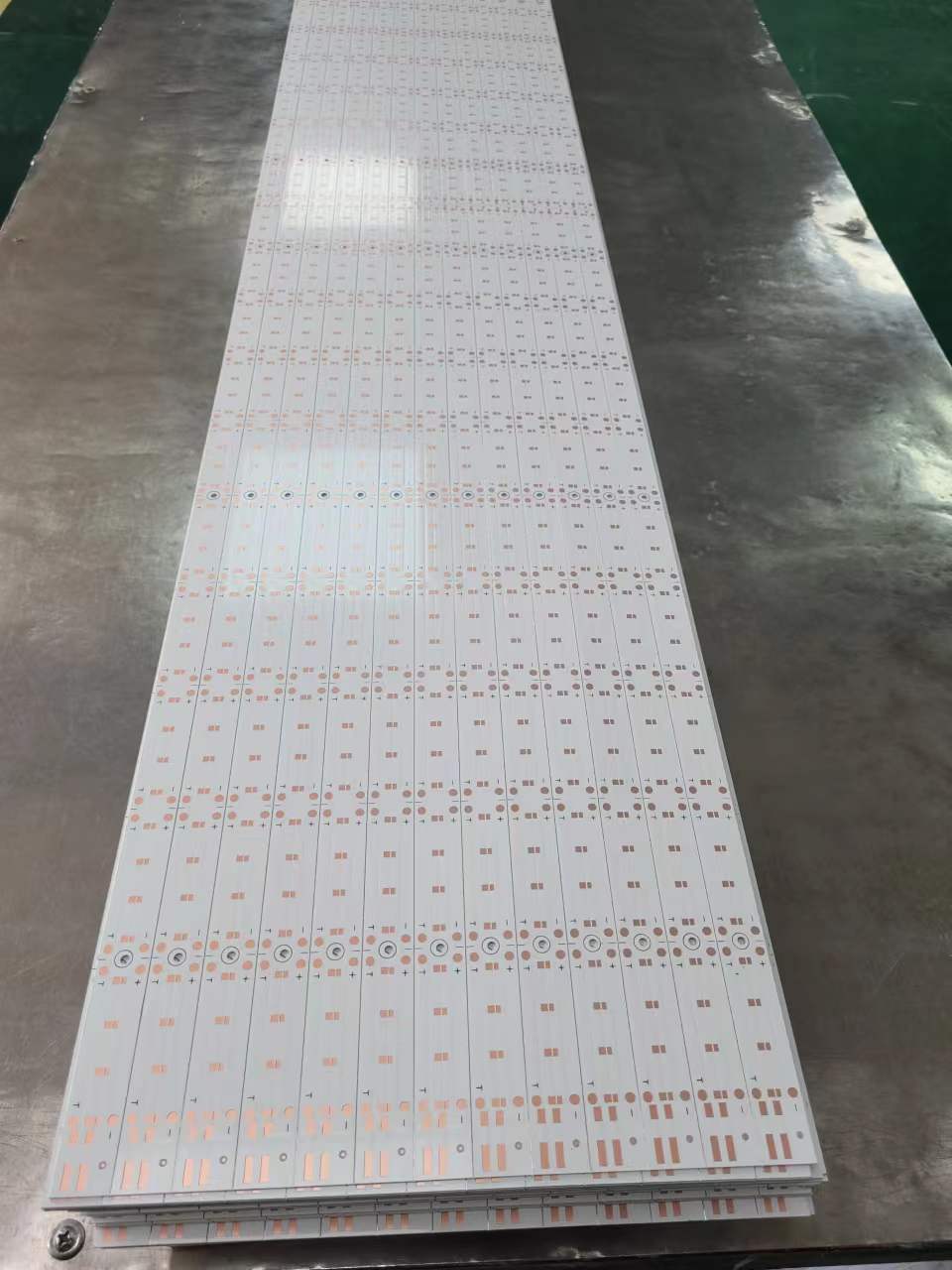

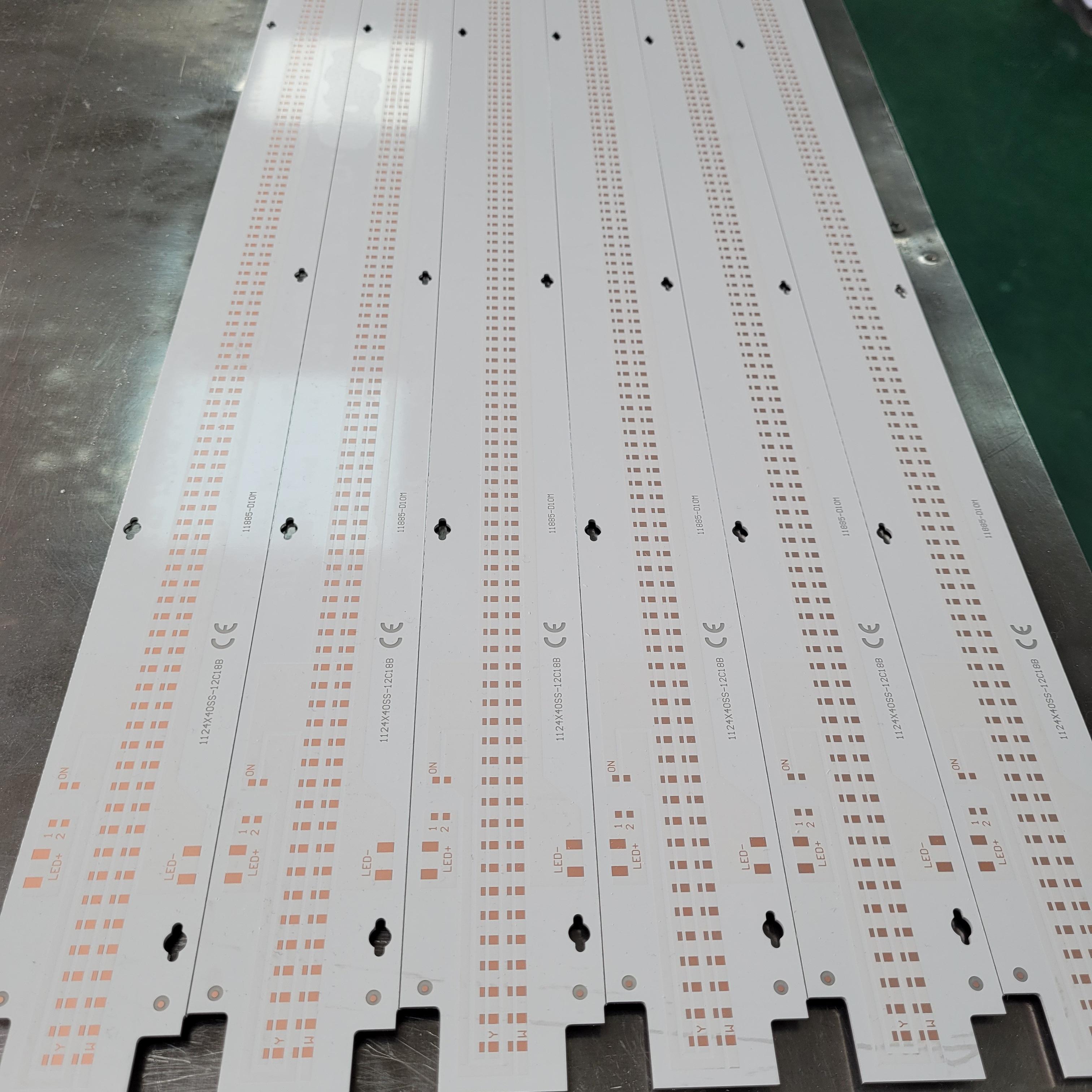

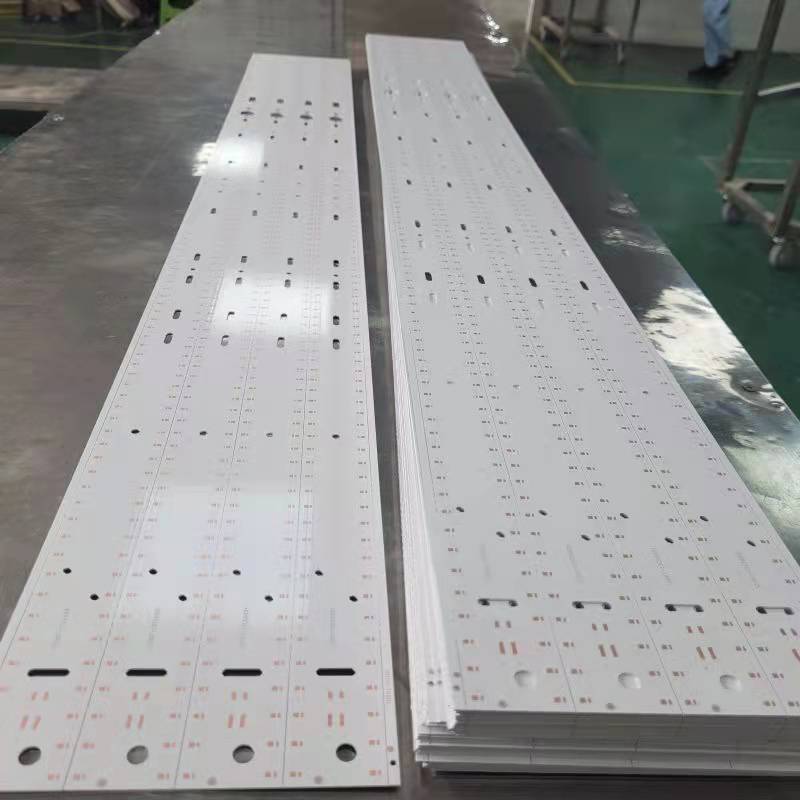

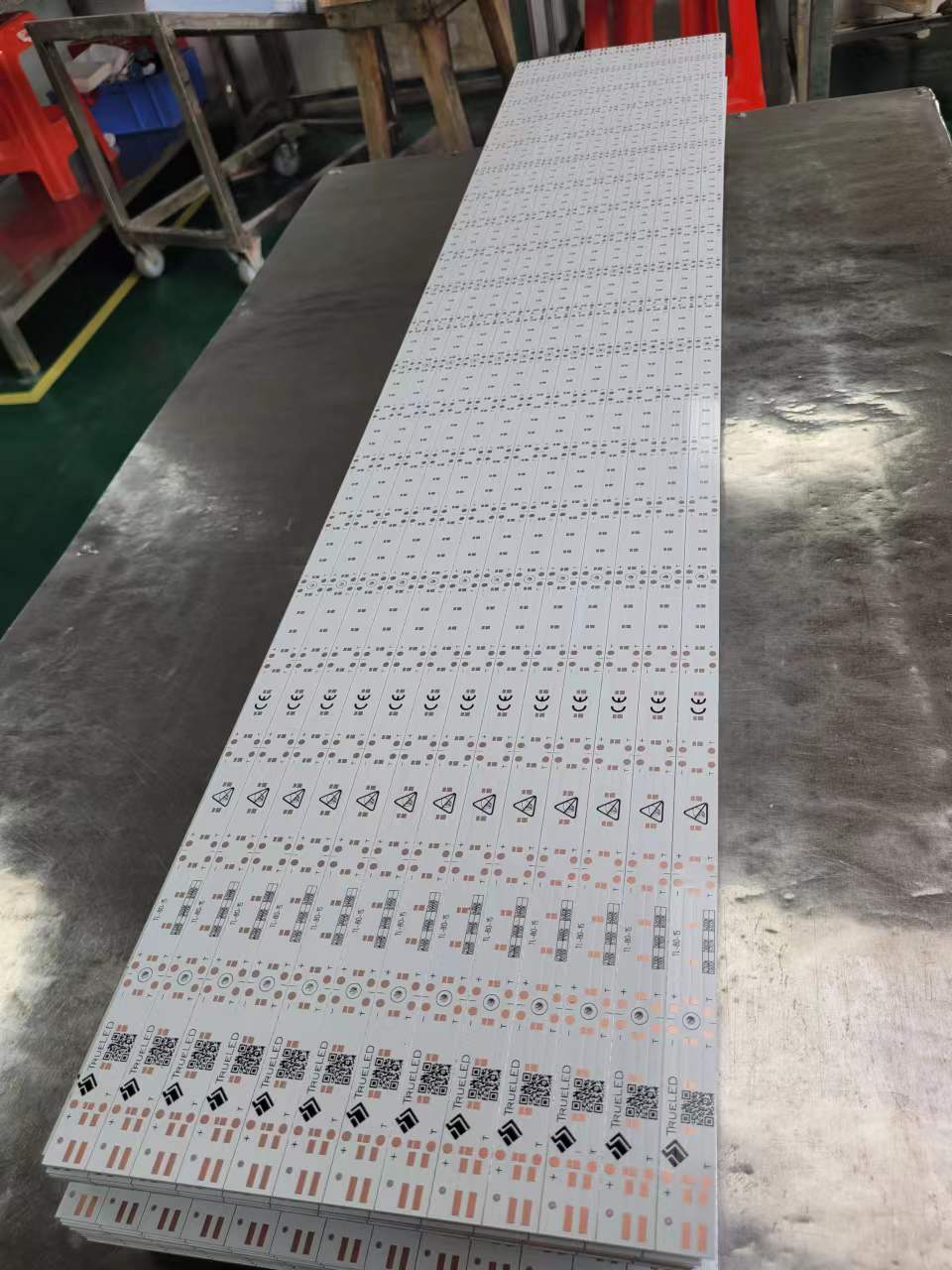

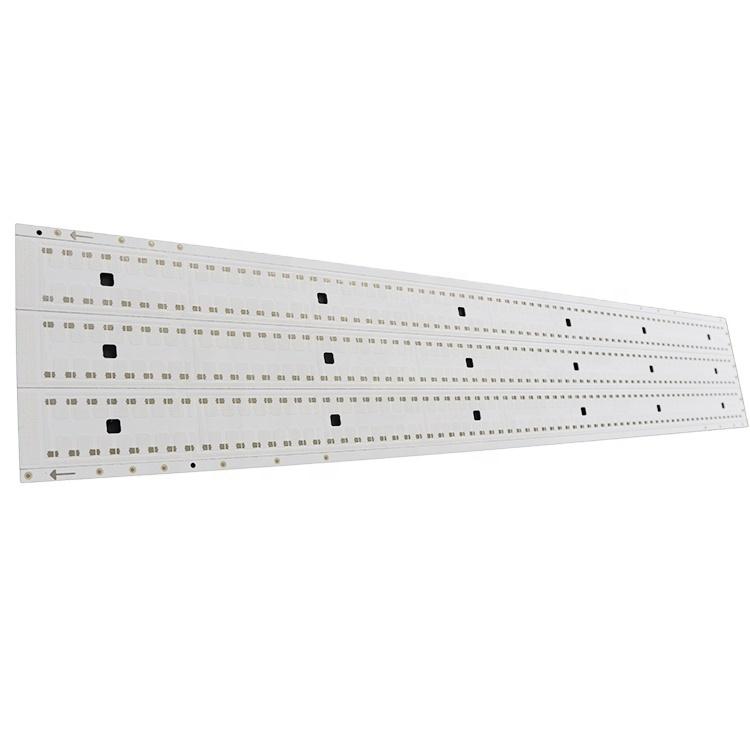

Single-sided PCB board metal core PCB PCB Mcpcb aluminum substrate printed circuit board for linear light
- 6.00 5 - 999 pieces
- 0.02 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Solder mask color: | white | Copper thickness: | 35 microns/1 oz |
| Substrate: | Aluminum base, metal core | minute. Hole size: | 0.6 mm |
| quality level: | IPC class 2 | Origin: | Hubei, China |
| Surface treatment: | OSP, ENIG, lead-free HASL | Plate thickness: | 1.0mm, 1.2mm, 1.5mm |
| minute. line width: | 0.2 mm | Layers: | single layer, single side |
| surface: | Lead-Free HASL (Lead-Free Hot Air Solder Level) | Legend color: | Warm White |
| Matrix: | aluminum | payment terms: | wire transfer |
| Packaging Details: | Inner packing: vacuum packing Outer packing: standard carton | shape: | rectangle |
| brand: | Meter Core PCB | size: | 6*1200mm |
| type: | Metal core PCB | minute. Line spacing: | 0.2mm |
| Copper foil: | 1 oz | Supply capacity: | 2000 square meters per day |
| application: | LED Linear Light, Led Linear Light, T5/T8 LED Light | model: | Metal core PCB |
| Package preview: | Board size: | Custom PCB | |
| port: | NB,WH,Shenzhen Port |
Product Description
Single-sided PCB board metal core PCB PCB Mcpcb aluminum substrate printed circuit board for linear light
Medium training capacity | ||
layers | Single layer PCB, double layer PCB, PCBA | |
Daily output | 2000-4000 square meters per day, 60,000 square meters to 80,000 square meters per month. | |
Material can be processed | FR4, 94V0, aluminum substrate, CEM-1, CEM-3, FR1, 22F, FPC, etc. | |
surface treatment | OSP, HASL lead-free, solder mask | |
plate thickness | 0.5-3.0mm | |
Copper foil thickness | 18-105um, 0.5-3oz | |
product size | Minimum 3*3mm, maximum 500*1500mm | |
minimum aperture | 1.5mm for aluminum substrate, 0.5mm for others | |
Minimum Line Width | 0.2 mm | |
Minimum Solder Bridge | 0.3mm | |
Minimum legend width | 0.1mm | |
Minimum legend height | 0.8mm | |
Minimum V-shaped cutting allowance | 0.1 mm | |
QC | IQC, IPQC, FQC ensure the quality according to IPC 610J, IPS cals 2. | |
certified | UL, ISO9001, ROHS, CQC | |
application | LED bulbs, LED tubes, ceiling lamps, mobile phones, control boards, electronics, custom products, PCB cloning, PCB duplication. | |
