Seplos Apexium RS485 RS45 Adapter to USB RS485 RJ485 Converter with Ethernet CD

Supplier: Docan Technology (shenzhen) Co., Ltd.
Region: Guangdong, China
Contact: Ms Sandy Zou
Price: $20.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

type:	Metal core PCB	Plate thickness:	2.0mm or customized
Continuity rate:	100A 150A 200A	Battery Type:	Lithium iron phosphate battery
model:	Cypros BMS	Voltage:	1V-96V or customized
Single piece packaging size:	20X35X25cm	Work efficiency:	>94% or customized
model:	Cypros BMS	temperature:	40-80 degrees or customized
BMS Ltd:	Compatible with BMS	brand:	Sepulos
Gross weight of single piece:	2.000kg	Package preview:
Balance method:	Dynamic energy transfer or customization	Packaging details:	Use high-hardness customized sponge to strengthen the battery and five-layer dangerous goods export corrugated boxes to ensure free transportation.
Sales unit:	Single product	Place of origin:	China
Voltage difference VS balance current:	300mv-1A; 1V-3A or customized

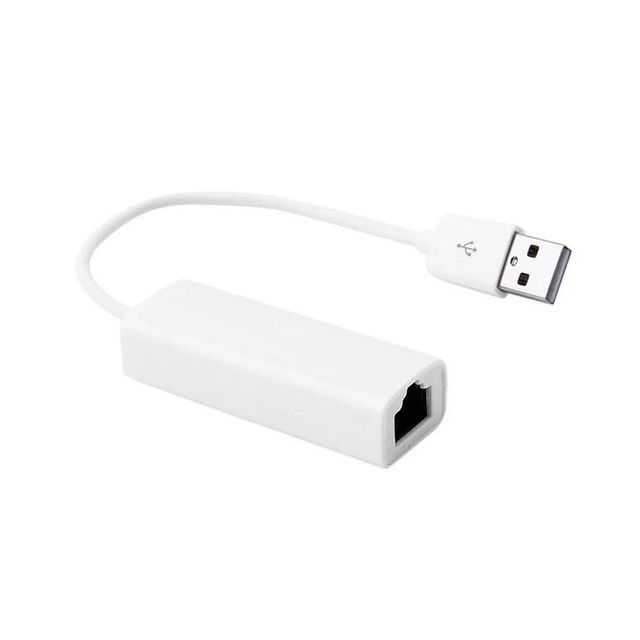

Seplos RS45 to USB adapter RS485 converter RJ485 suitable for PUSUNG-R PUSUNG-S SUTEN and smart BMS

feature:

Connect the battery system to the computer. And read battery information through software.

Suitable for Apexium DIY Kit, SEPLOS PUSUNG-S, PUSUNG-R, SUTEN-W and SEPLOS Smart BMS.

Plug and play design, no wiring required.

Drivers need to be installed before connection.

BMS details if you also need:

Product Description

Battery type and serial number			Lithium Iron Phosphate (16S/15S)	Ternary material (14S/13S)
Continuous charge/discharge current			50A/75A/100A/150A/200A	50A/75A/100A/150A/200A
Protocol			CANBUS (default) or RS485	CANBUS (default) RS485
Custom functions			Heating function, external switch	Heating function, external switch
Operating temperature			-20℃-70℃
precharge			0-3000 milliseconds
current balance	passive balance	150mA (maximum)
energy consumption	Working mode power consumption	<40mA
		Sleep mode power consumption	0 microamps
Capacity protection	Nominal capacity	5-500Ah
		Remaining capacity protection	5%
Short circuit protection	Short circuit protection lock	Output circuit continues to be short-circuited
		Short circuit protection lock time	5 times
		Short circuit protection unlocked	Charger connected
Single cell battery voltage protection	Overvoltage protection	3650 millivolts	4200 millivolts
		Under voltage protection	2700 millivolts	2900 millivolts
voltage protection	Overvoltage protection	57.6V	58V
		Under voltage protection	41.6V	40.6V
Current protection	Overcurrent protection	60A/85A/110/160A/210A
		Overcurrent protection delay	30 milliseconds
Current limiting (charging)	Passive current limiting	10A
Heating function	start	0℃
		stop	10℃

Seplos BMS is compatible with most inverters, as shown in the table below:
