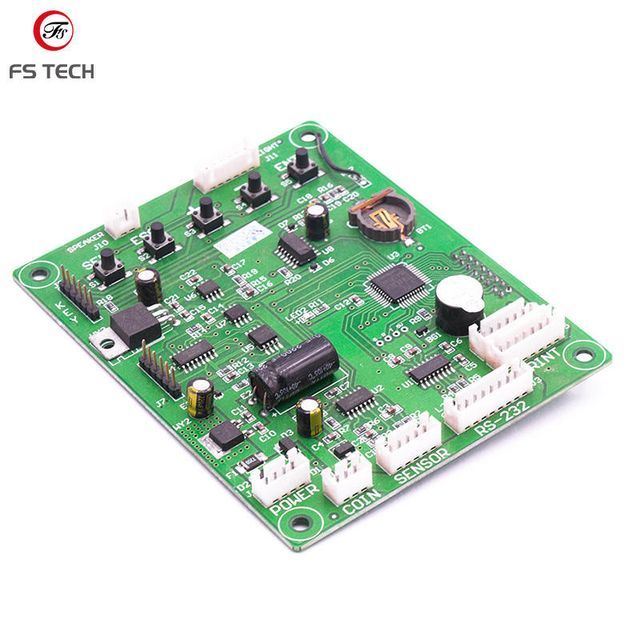

Hot Selling Fr4 Single Sided Green PCB Printed Circuit Board Customized PCBA Assembly Prototype Service OEM ODM Factory
- 5.00 1 - 199 pieces
- 3.00 200 - 4999 pieces
- 1.50 5000 - 9999 pieces
- 0.50 >=10000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Package preview: | PCBA services: | SMD SMT DIP component assembly | |
| minute. Line spacing: | 0.075 mm (3 ml) | brand: | Feisu Technology |
| Copper thickness: | 1 oz - 5 oz / 35 micron - 175 micron | Packaging details: | Anti-static packaging, with carton outside. Vacuum packed, with carton outside. |
| delivery time: | 7-15 days | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal |
| Solder mask color: | Green, black, red, yellow, white, blue, purple, matte green. matte black | Minimum order quantity: | 1 |
| model: | Printed circuit board assembly | Surface treatment: | HASL/OSP/ENIG/IMS/IMT |
| Sample/OEM/ODM: | acceptable | port: | Shenzhen/Hong Kong |
| pack: | Anti-static bag + standard bag | Base material: | FR-4 CEM-1 CEM-4 Rogers Aluminum |
| Plate thickness: | 0.8 mm 1.0 mm 1.2 mm 1.6 mm 2 mm 3 mm | Supply capacity: | 50,000 pieces per week |
| Certificate: | ISO9001/ISO14001/CE/ROHS | application: | electronic product |
| Board size: | custom size | type: | Single sided PCB |
| minute. Line width: | 0.075 mm (3 ml) | product name: | PCB PCBA Assembly Manufacturer |
| Test service: | 100% AOI test/ICT/FCT test/E-test | Place of origin: | China |
| minute. Aperture: | HDI is 0.1 mm (4 mil)/0.15 mm (6 mil) |
PCB PCBA Printed Circuit Board OEM Manufacturer
Product Description
surface mount line | 7 lines | |
capacity | 8 million placements per day | |
Maximum board size | 680*550mm minimum: 0.25"*0.25" | |
Minimum component size | 0201-54 mm² (0.084 in²), long connector, CSP, BGA, QFP | |
speed | 0.15 seconds/chip, 0.7 seconds/QFP | |
wave soldering | PCB maximum width: 450mm | |
Minimum PCB Width: No limit | ||
Component height: Top 120mm/Bottom 15mm | ||
Metal Type: Partial, Whole, Inlaid, Side Steps | ||
Metal material: copper, aluminum | ||
Surface treatment: gold plating, silver plating, tin plating | ||
Air bag rate: less than 20% | ||
Pressure range: 0-50KN | ||
Maximum PCB size: 800*600mm | ||
Assembly type | SMT and through hole | |
Solder type | Water-soluble solder pastes, lead and lead-free | |
file format | Bill of Materials, Gerber files, Pick and Place files (XYRS) | |
Service type | Turnkey, Partial Turnkey or Consignment | |
Component packaging | Cutting tape, loose tube rolls, parts | |
Turn time | 1-15 days | |
test | XRAY detection, AOI test ICT, flying probe, aging, functional test | |
If you have any questions, please feel free to contact us. | ||
