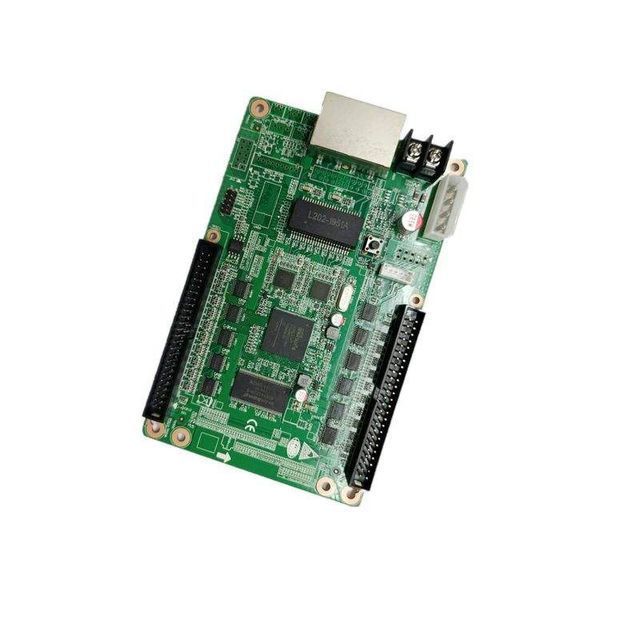

OEM PCB IoT PCB Assembly

Click here to contact

Product details

Minute Aperture:	0.075mm	Profile stamping:	Routing, V-cut, Miter
Copper thickness:	1/2 oz 1 oz 2 oz 3 oz	place of origin; place of origin:	Guangdong, China
Minute line spacing:	0.075mm	Surface treatment:	Lead-free HASL, BGA, OSP, gold flash, gold finger, gold plating
Packaging Details:	Our solar panel packaging: inner packing: vacuum packing + dryer outer packing: carton packing + light bulb packing	model:	WDF-01
brand:	A printed circuit board	Plate thickness:	1.6mm
price advantage:	factory catalog with cheap price	Surface treatment:	HASL, ENIG, hard gold
Certification:	ISO9001-2000, ISO14001, RoHS, lead-free	Supply capacity:	40000 square meters / month solar circuit board
Substrate:	FR4 CEM1 CEM3 High TG	Board Test:	Flying probe test, high stringency 100% visual inspection
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, paypal	port:	Shenzhen, Hong Kong
Key words:	circuit board manufacturer	Minute line width:	0.075mm/0.1mm(3mil/4mil)
type:	PCBAs

Product Description

layers	1 - 28 floors
Maximum processing area	600×1000MM
Minimum plate thickness	2 layers - 0.3MM (12 million)
	4 layers - 0.4MM (16 million)
	6 layers - 0.8MM (32 million)
	8 layers - 1.0MM (40 million)
	10 layers - 1.1MM (44 million)
	12 layers - 1.3MM (52 million)
	14 layers - 1.5MM (59 million)
	16 layers - 160 mm (63 million)
	18 layers - 1.8MM (71 million)
Finished plate thickness tolerance	Thickness≤1.0MM, tolerance: ±0.1MM
Finished plate thickness tolerance	1.0MM≤thickness≤6.5MM, tolerance ±10%
twist and bend	≤ 0.75%, min: 0.5%
TG range	130 - 215°C
Impedance tolerance	± 10%, minimum: ± 5%
Pressure test	Maximum value: 4000V/10MA/60S
surface treatment	HASL, leaded, HASL lead-free
	Flash gold, heavy gold
	sinking silver, sinking tin
	Golden Finger, OSP

Our PCBA production capacity

SMT, PTH, mixed technology

SMT: 2,000,000 solder joints per day

DIP: 300,000 joints per day

Ultra-fine pitch, QFP, BGA, μBGA, CBGA

Advanced SMT Assembly

Automatic insertion of PTH (axial, radial, oblique)

Cleanable, aqueous and lead-free processing

RF Manufacturing Expertise

Peripheral process capability

Pressfit Back and Midplanes

device programming

Automated Conformal Coating

electronic quiz

Universal Tester

Flying Probe Open/Short Tester

high power microscope

Solderability Test Kit

Peel Strength Tester

High Voltage Open and Short Testers

Section Forming Kit with Polisher

If you also need PCB assembly service, can you provide the following information?
1.	Gerber filesBare PCB board
2.	Bill of Materials(Bill of Materials) for assembly
To shorten lead times, please let us know if there are any acceptable replacement components.
3.	Test Guide&Test Fixture, if necessary
4.	programming file&Programming Tools, Necessary
5.	schematic diagram, if necessary
