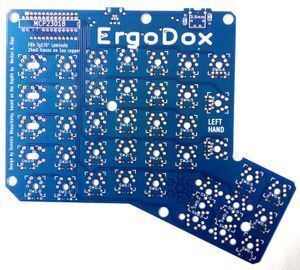

fr4 tg 170 double sided Ergodox pcb printed circuit board manufacturer

Product details
Copper Thickness:0.5oz - 6oz;Brand Name:WDF;
Place of Origin:Guangdong China;Payment Terms:L/C,T/T,Western Union,MoneyGram,PayPal;
Port:Shenzhen;Supply Ability:40000 Square Meter/Square Meters per Month;
Model Number:WDF PCB;Packaging Detail:Inner Packing: Vacuum Package + Dryer Outer Packing: Standard Carton Box + Bulb Package;
Silk Screen Color:White, Black;Certificate:UL, SGS, RoHS, ISO9001-2000, ISO14001;
Base Material:FR4, High TG, Aluminum, Ceramic, Rogers;Min. Hole Size:0.10mm;
Max Panel Size:1000mm*600mm;Surface Finishing:Immersion Gold, Lead Free HASL;
Min. Line Width:0.075mm;Min. Line Spacing:0.075mm;
Board Thickness:0.2mm - 4.0mm;Solder Mask Color:Green, Bule, Red, Black, White, Yellow;
Product Description

Base Material: FR1, 22F, CEM-1, CEM-3, FR4, High TG, Aluminum, Ceramic, Rogers

Board Thicness: 0.20mm-4.0mm

Copper Thickness: 0.5oz-6oz

Surface Finishing: Immersion Gold/Silver/Tin, Gold Finger, OSP, HASL, Lead Free HASL, Gold Planting

Solder Mask Color: Green, Blue, White, Black, Yellow

Silk Screen Color: White, Black

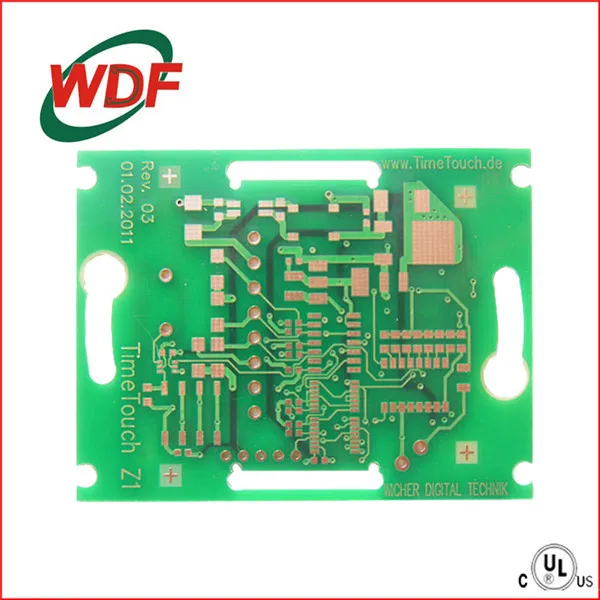

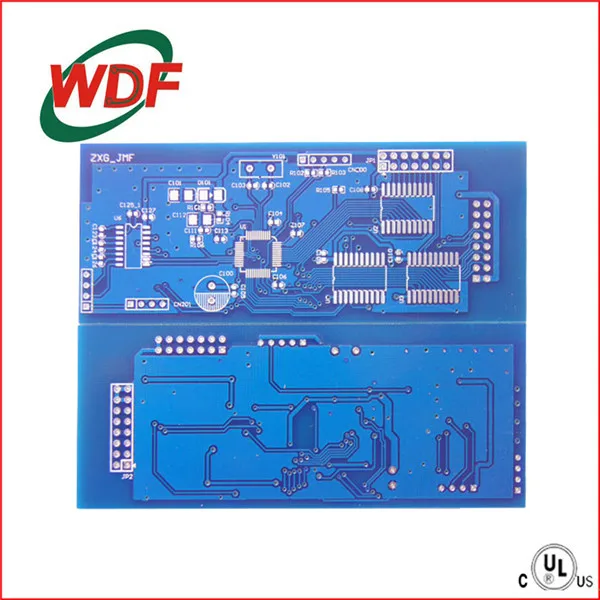

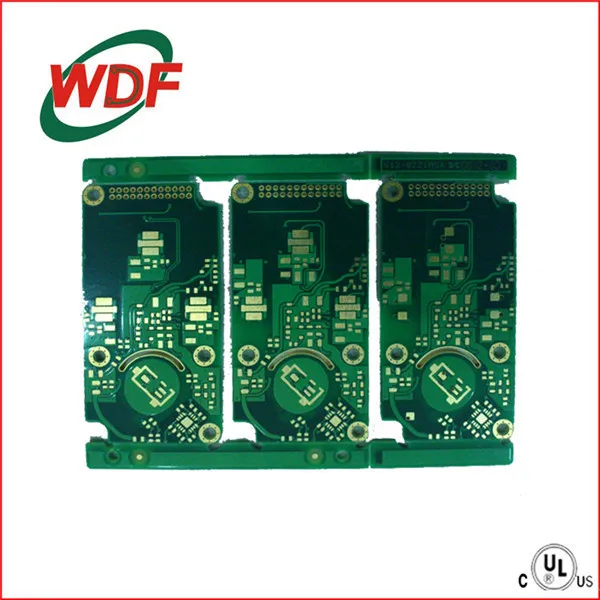

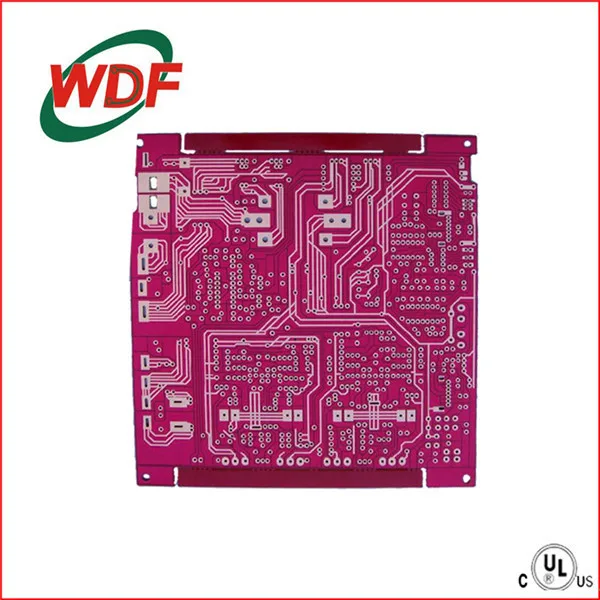

Product Overview


Packaging & Shipping


Inner Packing: Vacuum Package + Dryer

Outer Packing: Standard Carton Box + Bulb Package




Shipping: DHL, UPS, TNT, FedEx and etc.


Our Services

One-stop Service

PCB Prototyping

PCB Mass Production

PCB Clone with sample

PCBA Prototyping

PCBA Mass Production

Electronic Components Sourcing



Company Information

Company Profile


Shenzhen WenDeFeng technology Co., LTD. is a professional design company of printed circuit board or printed circuit board assembly. Founded in 1996 in China mainland, and founded in Hong Kong in the year of 2002 as Wonderful PCB(HK)Limited. By the end of 200, the total company asset reachs nearly RMB100 million.


The workshop area is nearly 20,000 square meters, with more than 700 employees. The monthly output can be 40,000 square meters for 2 - 18 layers pcb with FR4, Aluminum, high TG, halogen-free, ceramic, Rogers and other materials.


The company has passed ISO9001-2000 certification and American UL certification, ISO14001 certification. It is honored with "Shenzhen hi-tech enterprise". And the products are widely used in communication, medical, industrial control, household appliance and etc, which are mainly exported to southeast Asia, Europe and America areas.

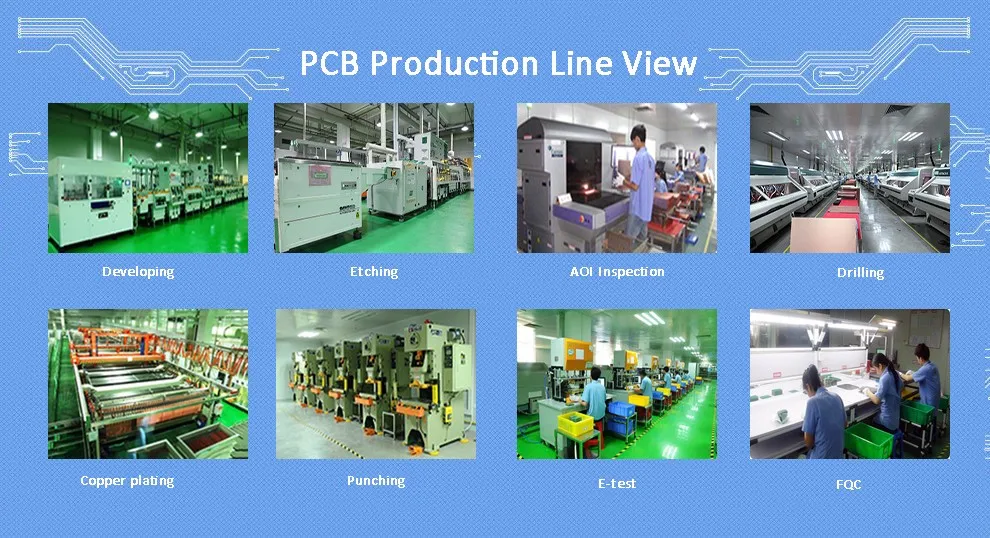

Our Factory





Our Office




Our Exhibition



Our People







Q: What do you need to quote price?

A: If you need pcb, we need your Gerber file and pcb specification; if you need pcb assembly, we need your Gerber file, pcb specification as well as you BOM list.


Q: What are your Payment terms?

A; Generally speaking, our payment term is T/T in advance, but it is negotiable.
