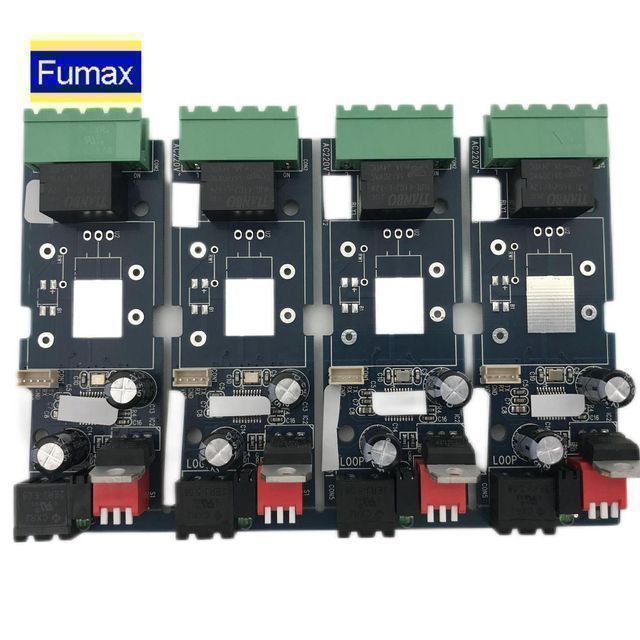

Custom electronics contract manufacturing double sided pcb assembly

Supplier: Shenzhen Fumax Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Jim Chen
Price: $3.00 / 1 - 499 pieces
$0.10 / >=500 pieces
Min. Order: 1 piece

Click here to contact

Product details

Solder mask color:	green. Red. blue. white. Black. Yellow	Package preview:

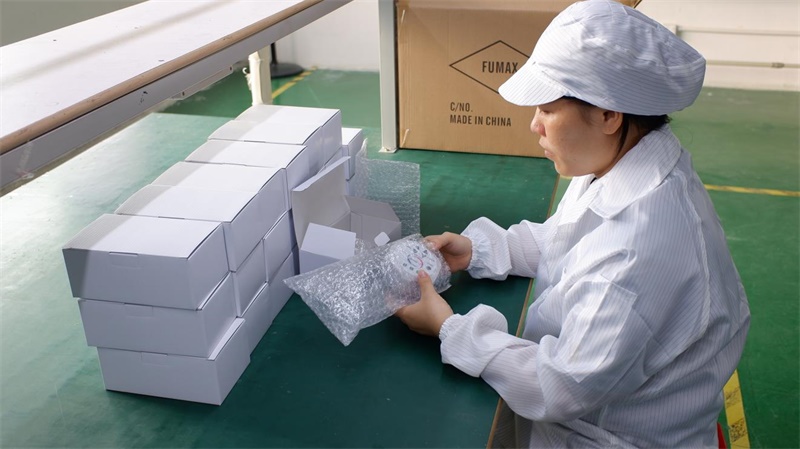

brand:	custom made	Packaging Details:	Carton/vacuum/bubble bag, according to customer requirements
Supply capacity:	2,400,000 pieces per month	standard:	IPC-A-610D
model:	FM-061	size:	546mm X 622mm (maximum)
Minute line spacing:	2 million	Plate thickness:	0.25-3.2mm
Material:	FR1\FR4\CEM1\CEM3\aluminum substrate	Layers:	1-22 floors
place of origin; place of origin:	melon	Minute Hole Size:	0.20mm
Substrate:	custom made	Types of:	double sided printed circuit board
Certificate:	FCC/RoHs/CE/ISO 9001:2008	Surface treatment:	HAL, OSP, immersion silver, others
Copper thickness:	0.5oz-8oz	port:	Shenzhen
Board Dimensions:	custom	Serve:	One-stop turnkey
design:	Customized PCBA Design	Minute line width:	2 million
payment terms:	L/C, Western Union, T/T, MoneyGram	Test service:	AOI X-Ray function test
MOQ:	1

Company capability

PCBA (Printed Circuit Board Assembly)

• Quality Control
• Automatic solder paste printing
• SPI
• Mounter
• Reflow soldering

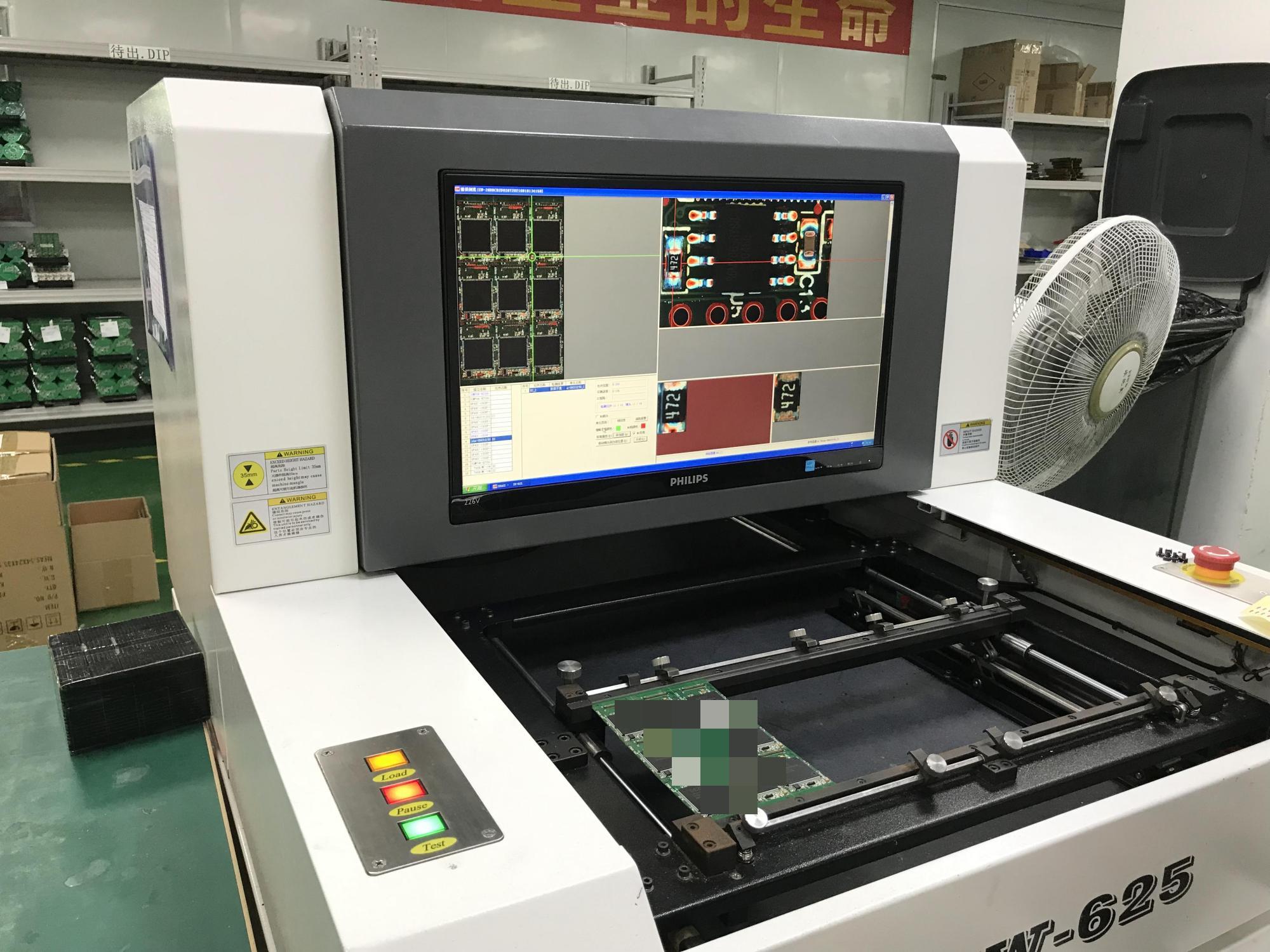

• area of interest

• X-ray (for BGA)
• ICT testing
• DIP through hole
• Wave soldering
• Circuit board cleaning
• Firmware programming

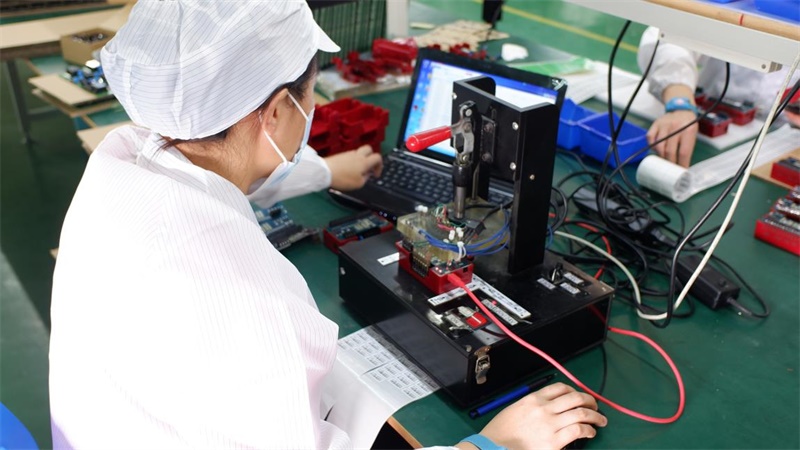

• function test

finished product

Typical product type:

• PCB assembly and wire and cable assembly

• PCB assembly with plastic case

•PCB assembly with metal housing

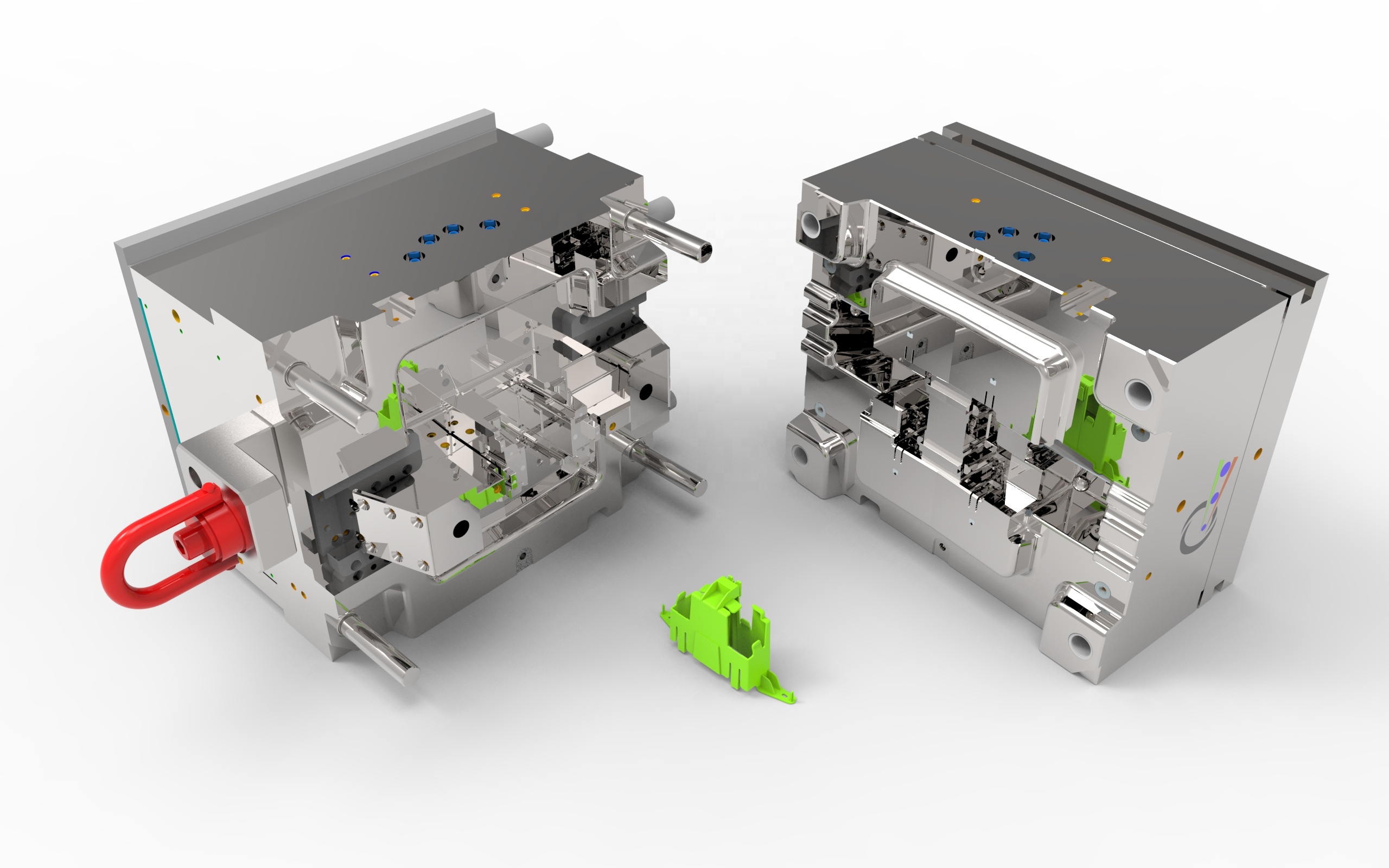

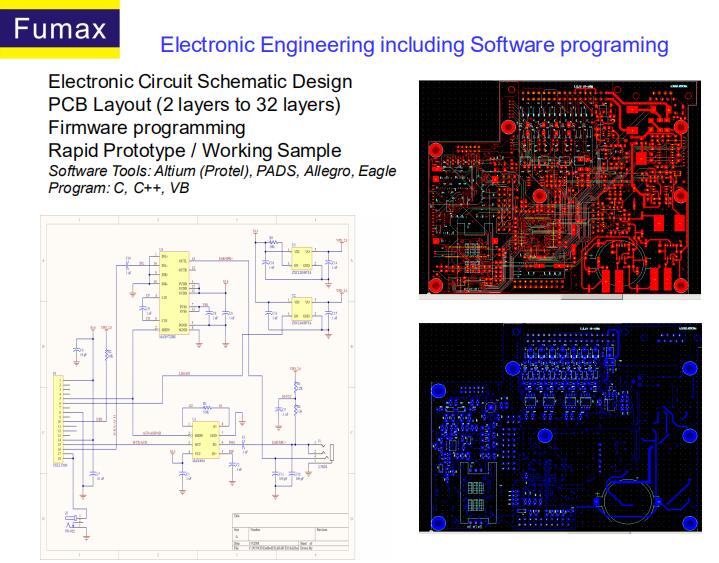

if you have ainitial product design, we can provideElectronic circuit design, PCB layout, plastic/metal mechanical design, mold/tooling design and fabrication.

R & D capabilities

A typical design process will include the following sections:
•industrial design
•electronic design
•firmware encoding
•Mechanical Design
•prototyping
•International Certificate
•From trial run to mass production

our equipment

Equipment List (PCBA)
name	Grade	quantity
wave soldering	Sunset	1

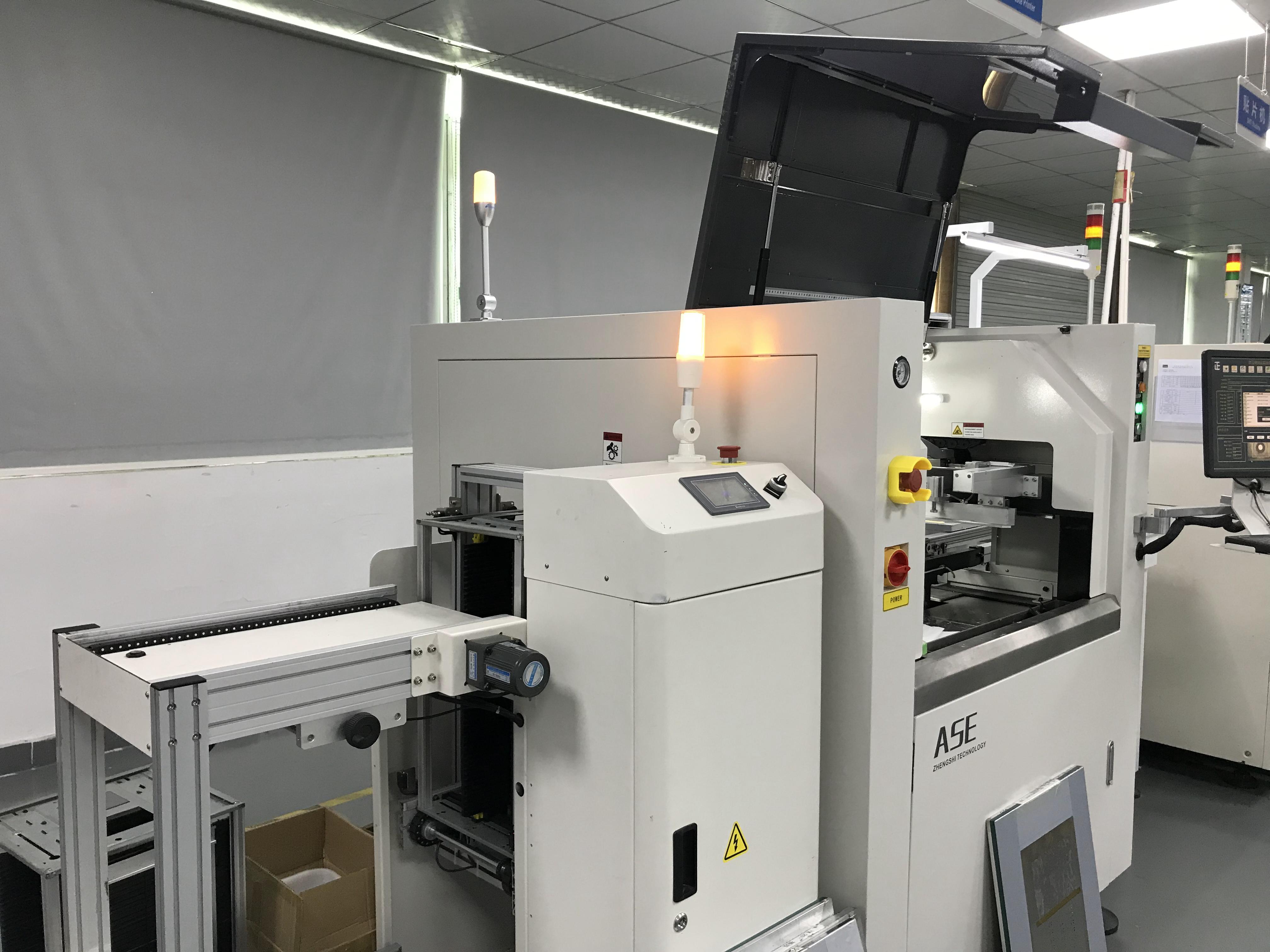

Automatic Solder Paste Printing Machine	Cheng's-ASE	1
Automatic Solder Paste Printing Machine	Automatic Solder Paste Printing Machine	GKG	1

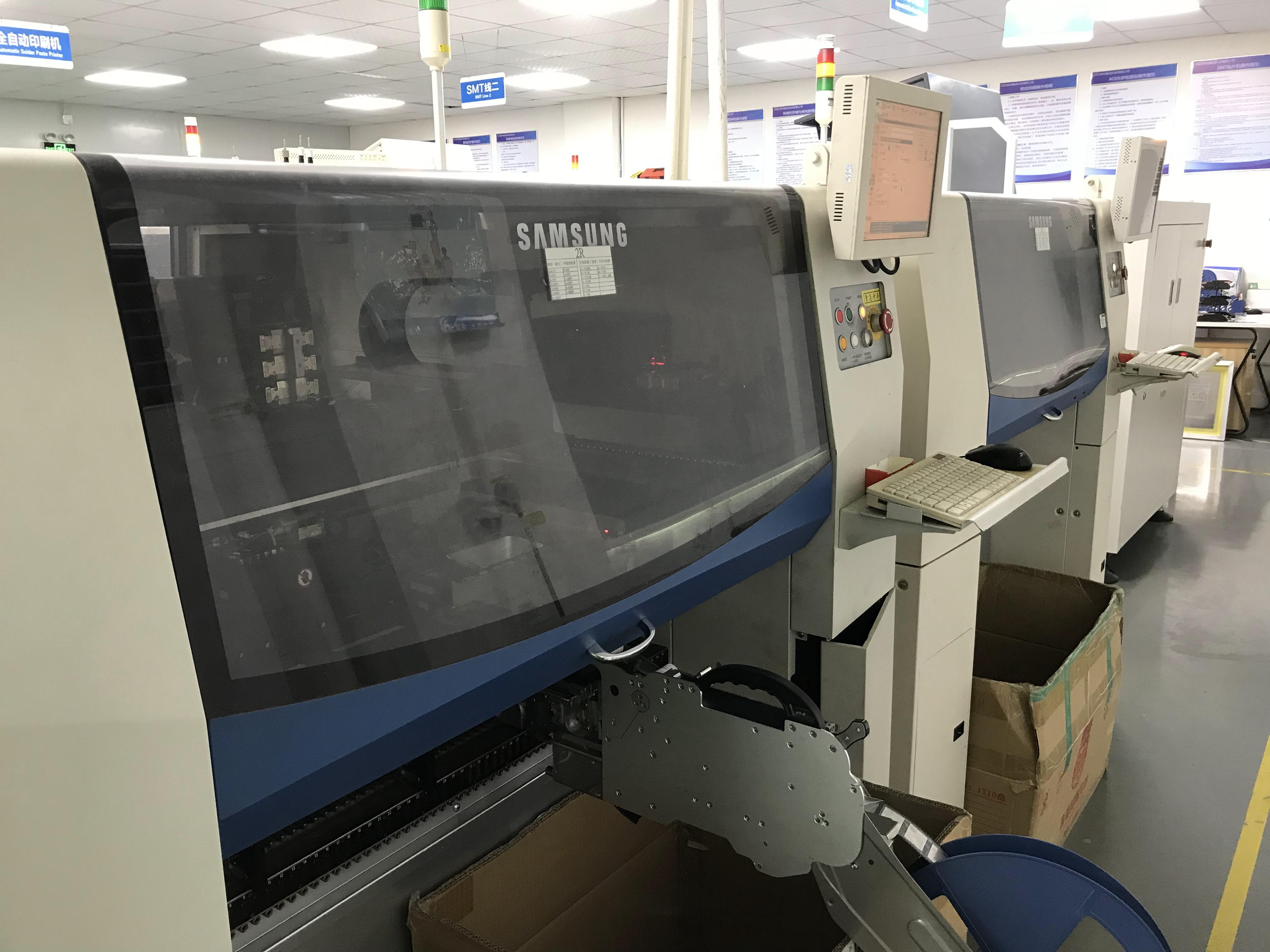

Mounter	Samsung SM411	2

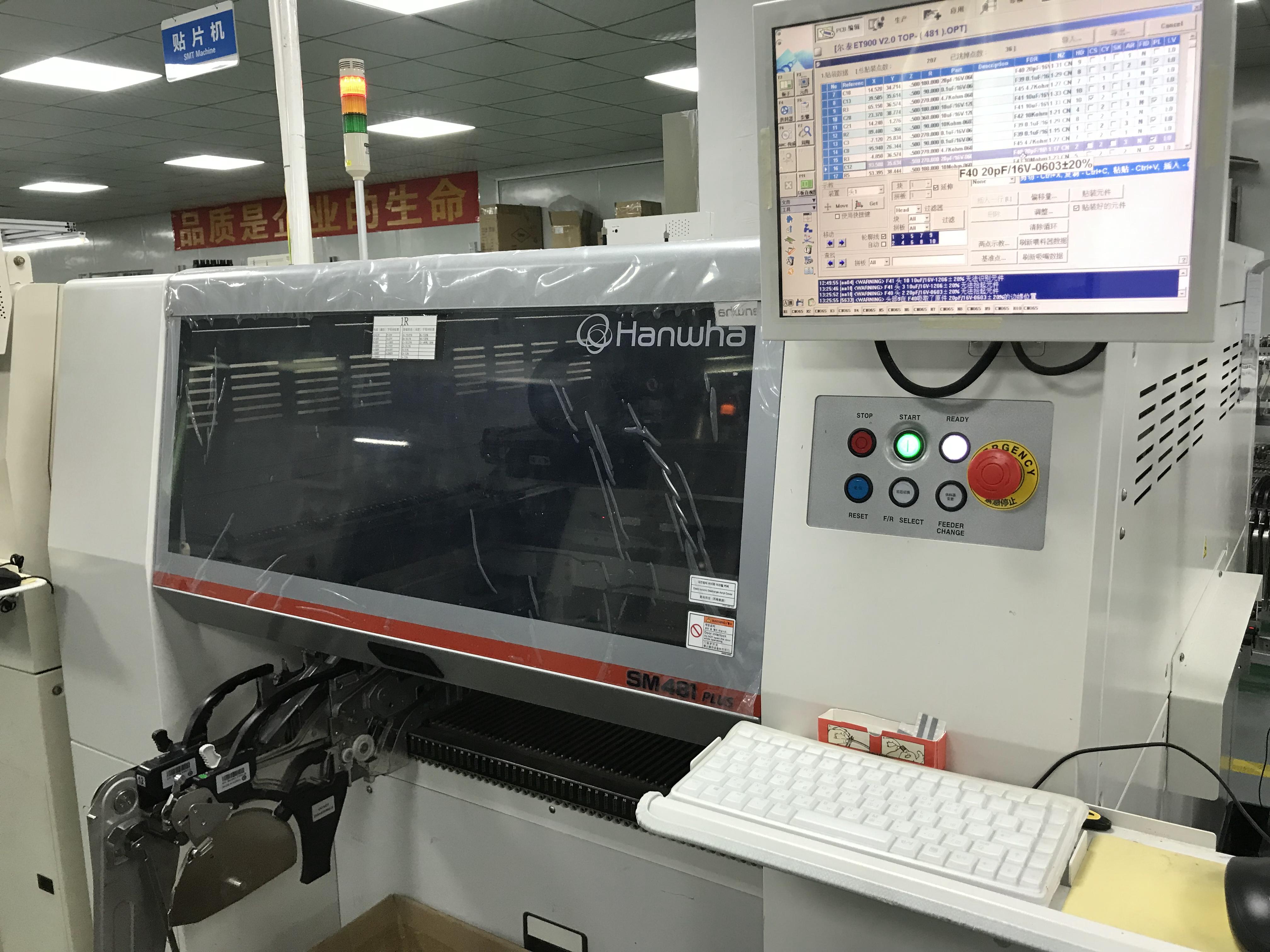

Mounter		Korean SM481 PLUS	1
reflow soldering	JT TEA1000D	1
