IP65 Oil Pressure Sensor Dirty Water Sensor For Liquid Gas And Steam
- 6.50 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Accuracy: | 1%FS; | Housing material: | Brass; |
| Model Number: | WNK83MA; | Output: | 0.5-4.5VDC; |
| Single package size: | 14.5X4.5X8.5 cm; | Mechanical connection: | NPT; |
| Selling Units: | Single item; | Place of Origin: | China; |
| Brand Name: | WNK; | Measured media: | Liquid, gas and steam; |
| Storage temperature: | -40~110°C; | Input: | 4.75-5.25VDC; |
| IP Rate: | IP65; | Single gross weight: | 0.2 KG; |
| Package Type: | standard export carton box for oil pressure sensor ppe pa gf30 or as per your; | Electrical connection: | Cable outlet; |
| Work temperature: | -20~70°C; |
IP65 Oil Pressure Sensor Dirty Water Sensor For Liquid Gas And Steam
Product Description
| Applicable media | Liquid, gas, steam |
| Pressure range | 0-10bar, 0-20bar |
| Cell | Ceramic capacitive pressure sensor |
| Pressure measurement | Gauge pressure, sealing pressure |
| Output | 0.5-4.5VDC |
| Power supply | 4.75-5.25VDC |
| Accuracy(linearity, hysteresis and repeatability) | 1%F.S. |
| Work temperature | -20~70ºC |
| Ambient temp | -40~110ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~70ºC) |
| Temperature drift(full range) | ±0.15% F.S. (-20~70ºC) |
| Electrical connection | Cable outlet |
| Mechanical connection | 1/4NPT |
| Housing material | Brass |

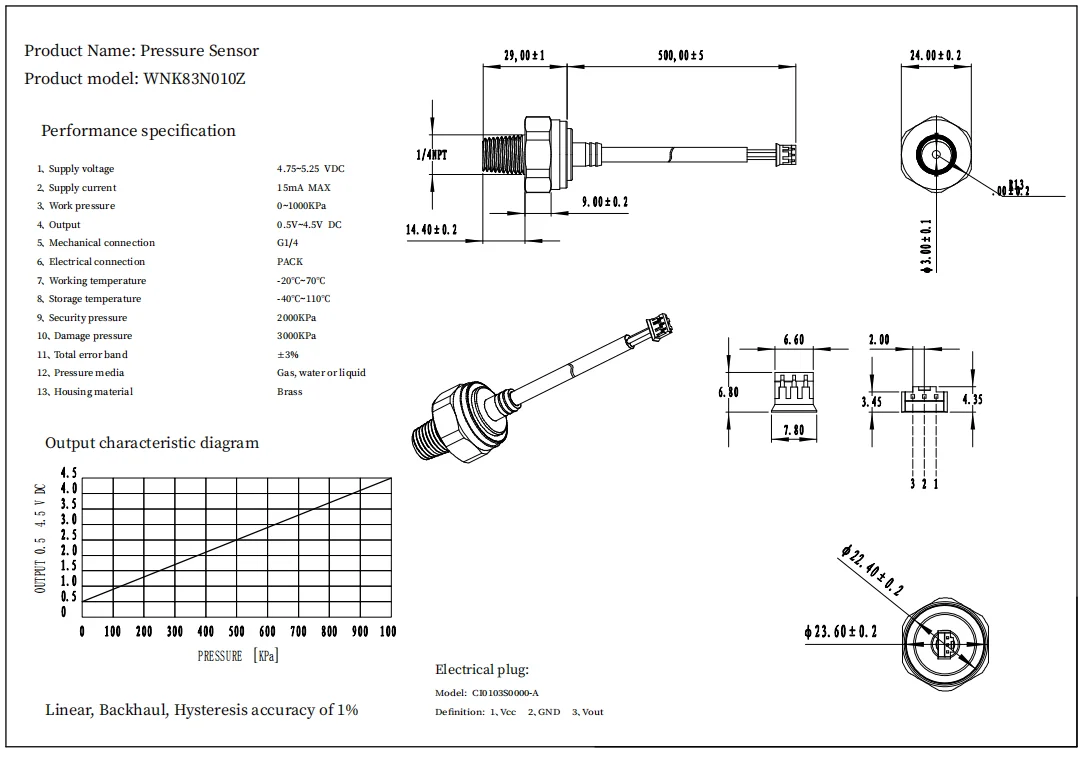

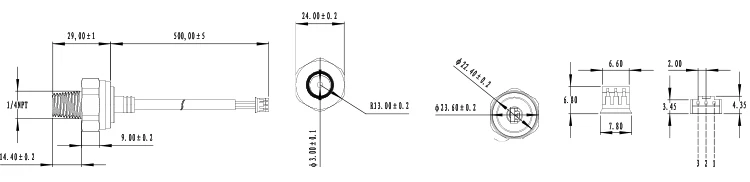

Mechanical Dimension:

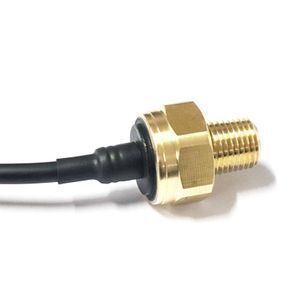

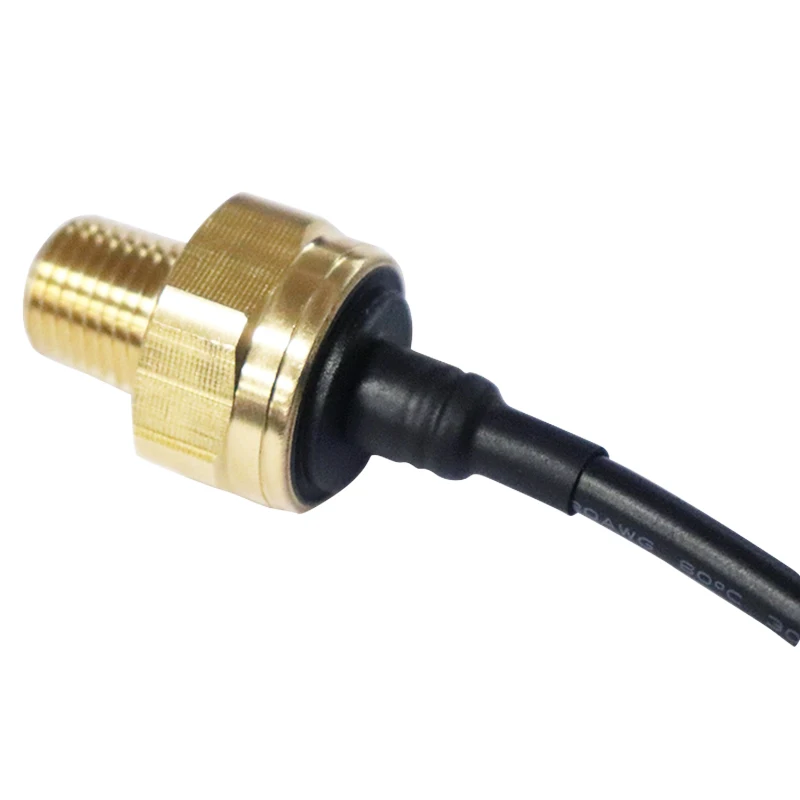

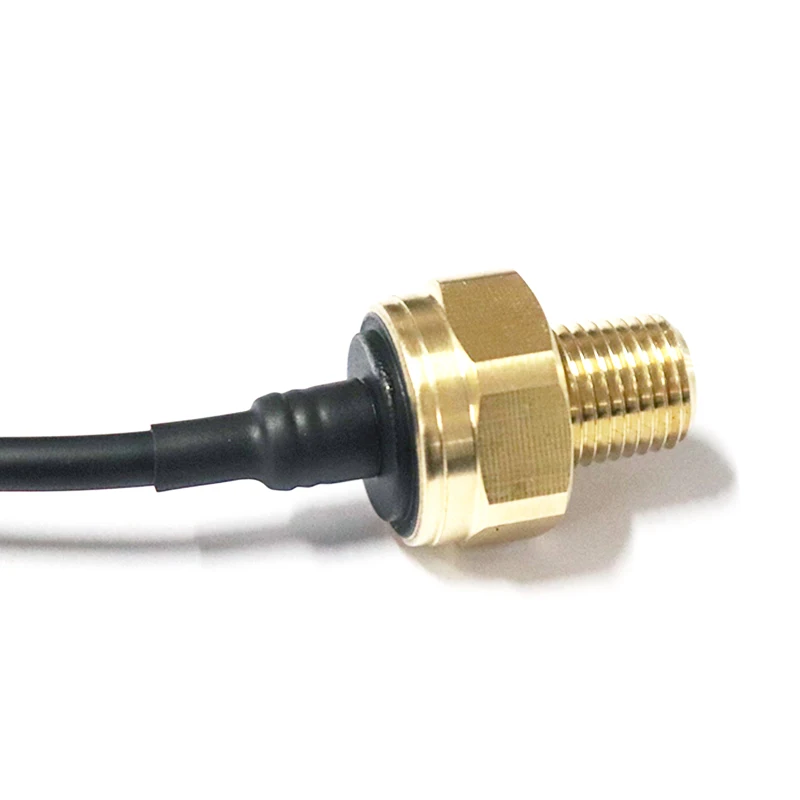

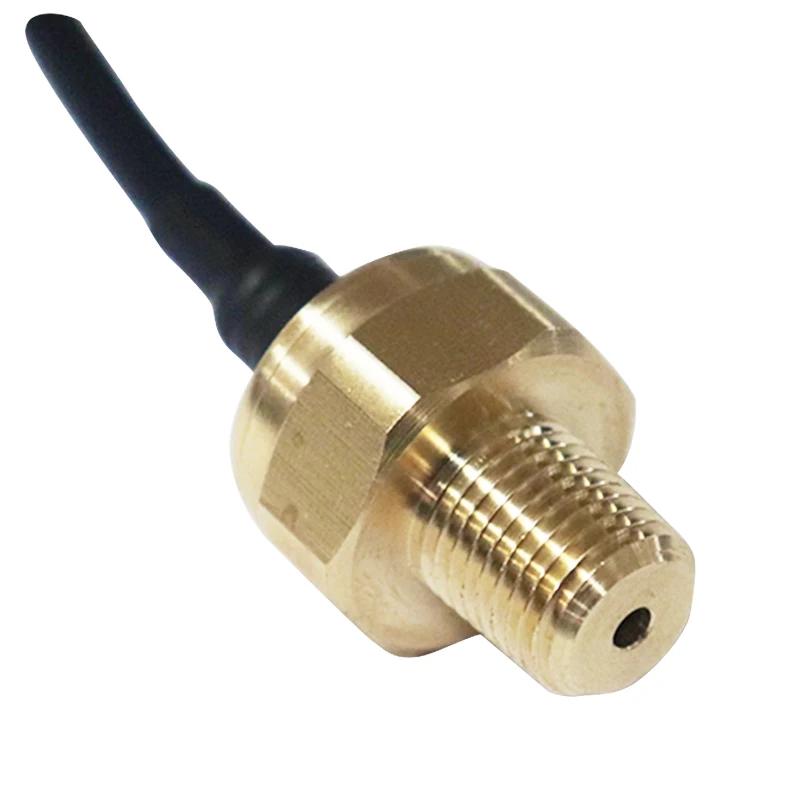

Product pictures:
Packaging & Shipping

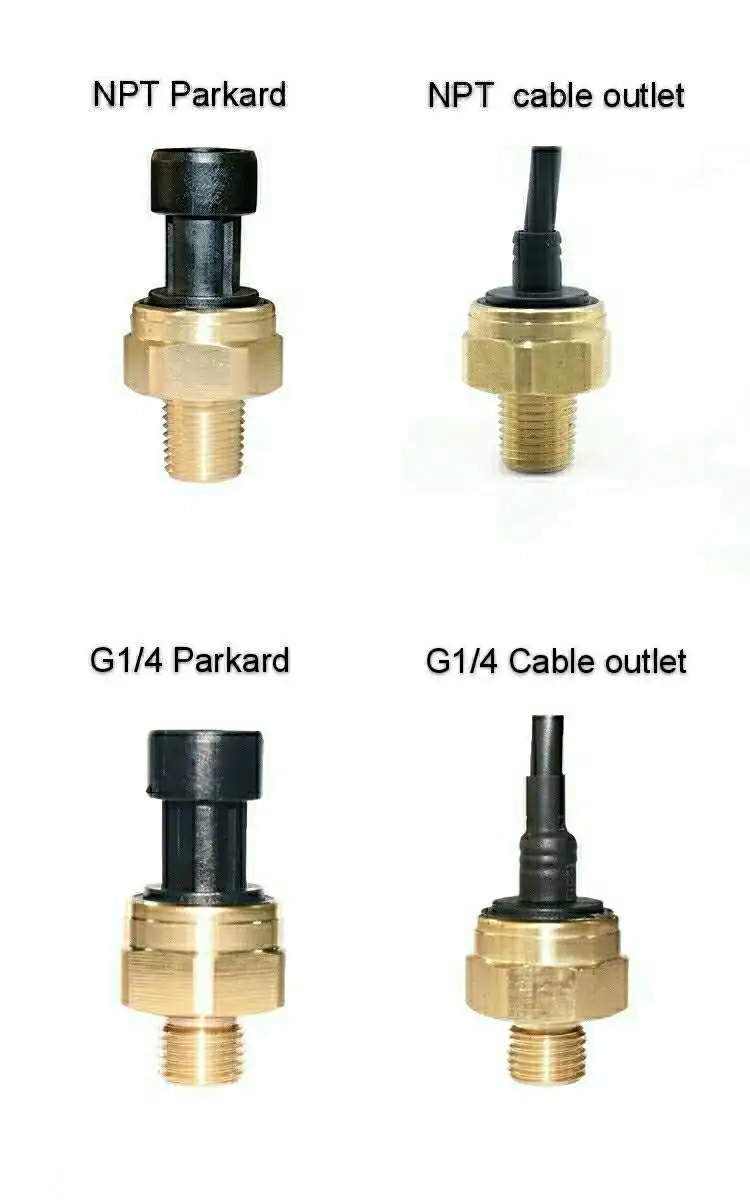

Product Show
Company Information
Exhibition
Certification
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
