Smart OEM pressure sensor/pressure transducer/pressure transmitter
- 10.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Electrical connection: | Packard, M12, DIN43650, Cable; | Model Number: | WNK80mA; |
| Housing material: | 304SST; | Keywords: | pressure transmitter/Pressure sensor; |
| Brand Name: | WNK; | Output signals: | 4~20mA, 1-5V, 0-10V, 0.5V-4.5V, I2C; |
| Supply Ability: | 2000 Set/Sets per Week pressure transmitter; | Measured media: | liquid, gas and steam; |
| Ex-proof: | ExiaII CT4/CT6, ExidIICT6; | Accuracy: | 0.2%F.S, 0.5%F.S; |
| Protection class: | IP65; | Place of Origin: | Anhui China; |
| Port: | Shanghai port; | Payment Terms: | T/T,Western Union,Trade Assurance; |
| Power Supply: | 24VDC/12VDC/5VDC/3.3V; | Packaging Detail: | each product in one inner paper box with protection;; |
| Pressure range: | 0-300KPa~10MPa; |

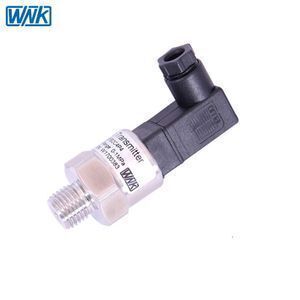

Smart OEM Pressure Sensor/Pressure Transducer/Pressure Transmitter
Product Show

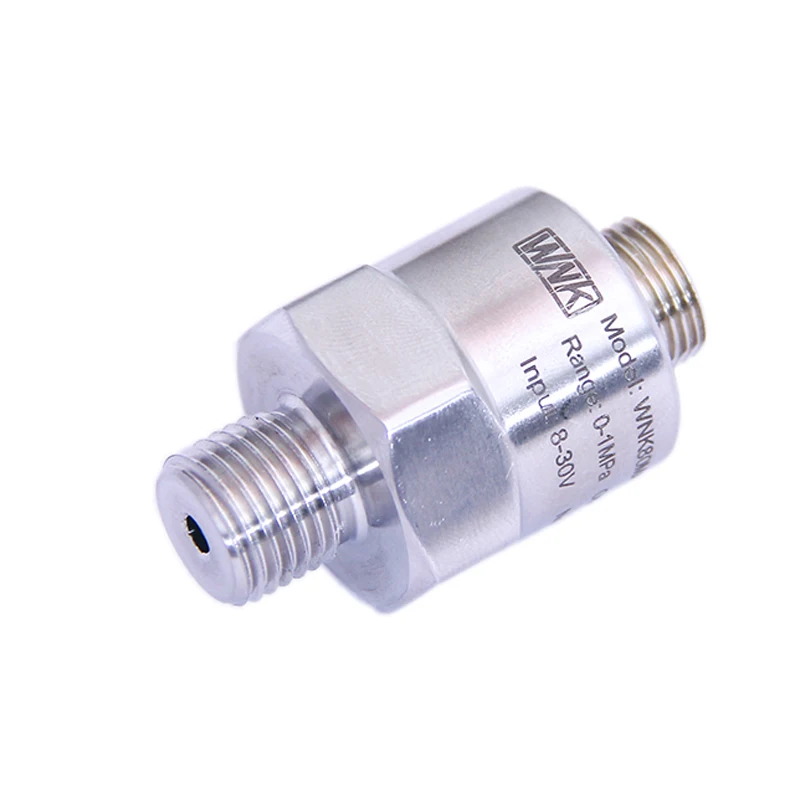

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.
Company Information
Exhibition
Certification
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
