Variable Adjustable Electronic Pressure Switch For Hydraulic Control /Pneumatic

Supplier: Hefei Wnk Smart Technology Co., Ltd.
Region: Anhui, China
Contact: Mr Aaron G
Price: $97.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Application:	Hydraulic, Pneumatic, Pumping, Machine Engineering;	Pressure Type:	gauge, absolute, negative, vacuum;
Supply Ability:	5000 Unit/Units per Month adjustable pressure switch;	Max. Current:	1.0A;
Pressure Range:	-1bar ... 600Bar;	Port:	Shanghai, Ningbo, Shenzhen, Guangzhou, Xiamen, other;
Max. Working Pressure:	600Bar;	Product name:	Electronic Pressure Switch;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Model Number:	WNK-SPS;
Screen Display:	Adjustable OLED;	Accuracy:	<0.5%FS;
Contact output:	NPN, PNP, Relay;	Media:	Gas, Liquid, Steam;
Max. Voltage:	30V DC;	Packaging Detail:	Each piece into individual carton, standard export carton;
Place of Origin:	Anhui China (Mainland);	Brand Name:	WNK;
Power Supply:	24V, 12-30V DC;	Signal output:	0/4...20ma, 0...5/10V, RS485;

Variable Adjustable Electronic Pressure Switch For Hydraulic Control /Pneumatic

Product Description

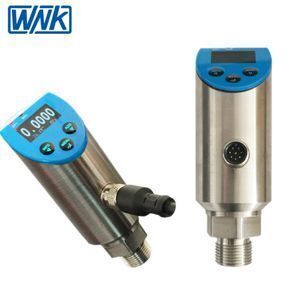

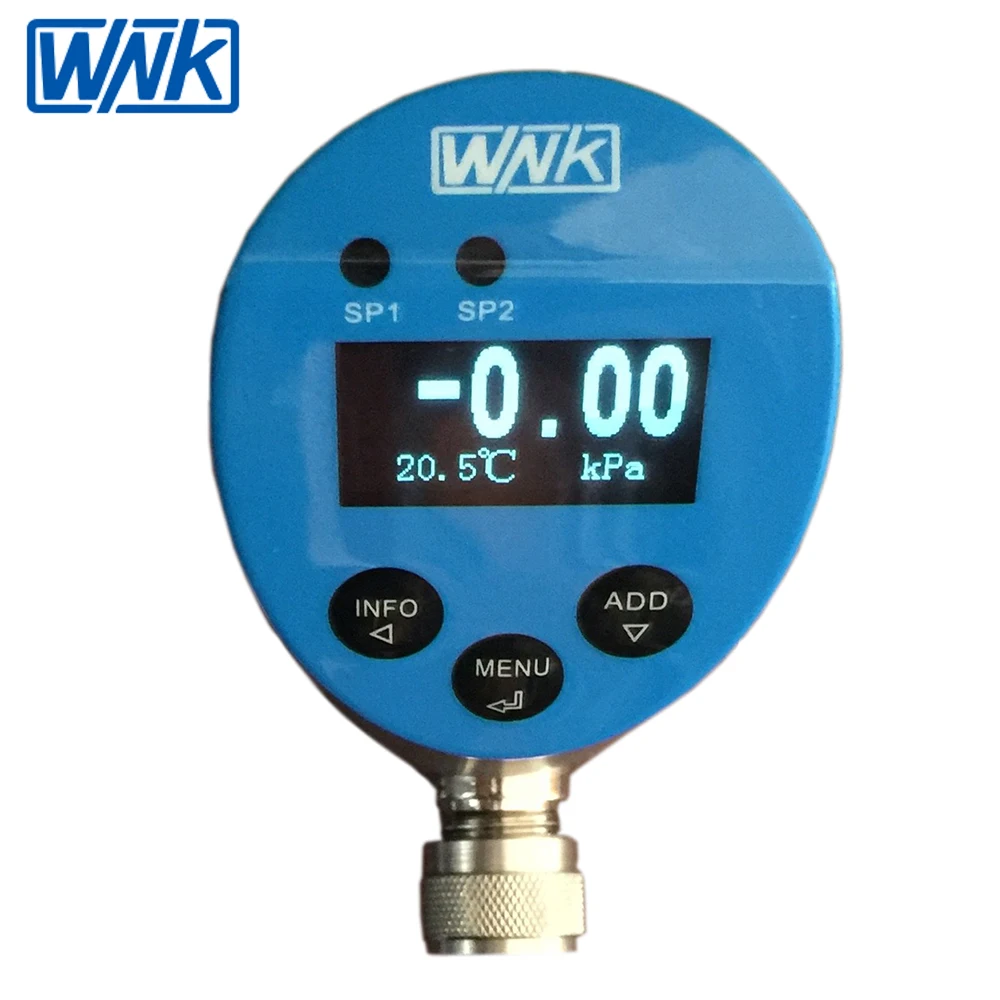

SPS pressure switch is designed for pressure monitoring and measurement in liquid and gaseous media. The SPS is suited for general industrial applications such as in mechanical manufacturing, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.
