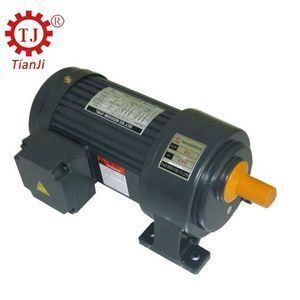

Low noise clutch brake motor,gear motor

Supplier: Dongguan Taiji Speed Reducer Clutch Co., Ltd.
Region: Guangdong, China
Contact: Ms Emily li
Price: $50.00 /set
Min. Order: 1 set

Click here to contact

Product details

Model Number:	TJ-CH;	Supply Ability:	8000 Set/Sets per Month gear motor;
Phase:	Three-phase;	Packaging Detail:	Wooden case or carton,or according to customers' requirements.;
Payment Terms:	T/T,Western Union,Paypal;	Efficiency:	IE 4;
Material:	Aluminium Alloy or Cast Iron;	Input Form:	Direct connection with motor, flange;
Bearing:	NSK bearing & Homemade bearing;	Quality Control System:	ISO9001:2008;
Place of Origin:	Guangdong China;	Output Form:	Solid shaft;
Type:	Asynchronous Motor;	Port:	Shenzhen/Guangzhou/shanghai/Hong kong;
Frequency:	50/60hz;	Color:	Black;
Output Shaft:	18mm,22mm,28mm,32mm,40mm,50mm;	AC Voltage:	110/220/380v ac motor;
Noise Level:	Less Than 60db;	Item:	clutch brake motor;
Brand Name:	Taiji;	Protect Feature:	Drip-proof;
Mounting Position:	Foot mounted, flange mounted;	Certification:	CE;

Low noise clutch brake motor,gear motor

Taiwan Brand-Tianji

Reliable Quality,Reasonable Price and Good Service.

Any email will be replied with 24 hours. Thanks for your time!

Product description

PRODUCT DETAILS

Product description
Taiwan brand TJ-CH horizontal , gear motor (with the brake) commonly known as reduction motor, is a kind of speed gear motor and motor (motor) the integration of the body. This integration body usually can also be called gear motor, usually assembled by the integration after complete supply by a professional gear reduction motor factory.
The geared motor widely used steel industry, machinery industry, or assembled with magnetic powder clutch and brake , etc. Ac gear motor is generally through the motor, internal combustion engines or other high speed running power through the low rpm ac gear motor input shaft of the less number of gear engagement on the output shaft of big gear to achieve the purpose of the slowdown.
The characteristics
1. geared motor combining international technical requirements manufacturing, has very high science and technology level. 2. save the space, reliable and durable, high bear overload ability, the power of up to 95 KW or more. 3. low energy consumption, superior performance and gear motor efficiency is as high as 95% or above .
4. little vibration, low noise, high energy saving, choose high quality steel materials and steel iron box, gear surface have been heat with high frequency. 5. precision machined, ensure positioning accuracy, all these constitute the gear transmission assembly gear reduction motor with all kinds of motor, formed the electromechanical integration, fully guarantee the products use quality characteristics. 6. The motor products of Taiwan brand used series, modular design thought, there is extensive adaptability, this series of products are extremely more motor combination, installation position and structure scheme, can choose according to the actual needs of any speed and structure.

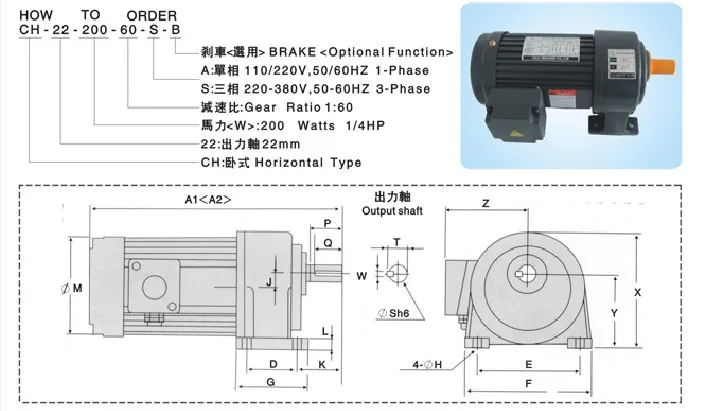

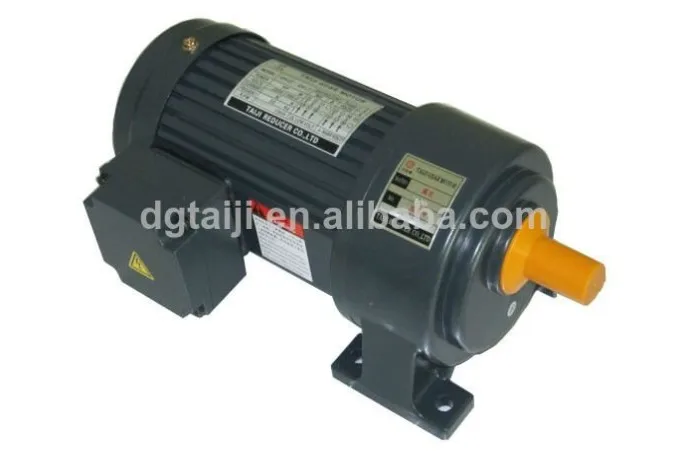

TJ-CH horizontal type gear reducer motor

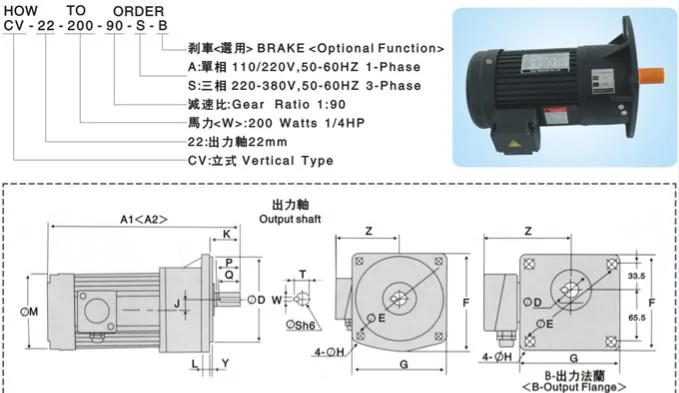

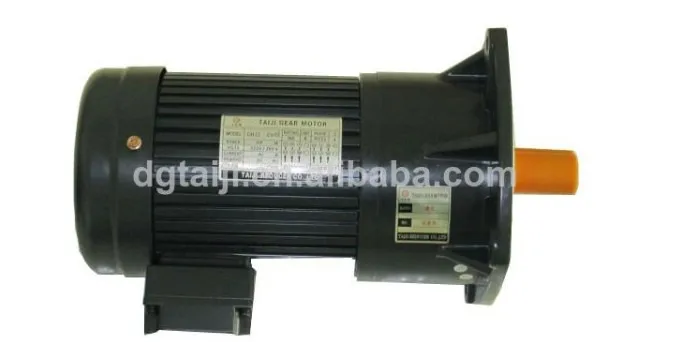

TJ-CV Verticle type ac gear motor

Specifications and Ratings
Category	High Ratio Helical low rpm ac gear motor
Gear Ratio	1/3 ~ 1/1800
Mounting	Horizontal Foot Mount/ Vertical flange Mount
Output Shaft (Ø)	18mm ~50mm
Motor Specification and Rating
Pole	4P
Phase	Single Phase / Three Phase
Output Power	0.75KW ~ 3.7KW (1/10HP ~ 5HP)
Rated Frequency	50Hz / 60Hz
Method of Starting	Full Voltage Direct On Line or Y-Δ Starting

Place	Indoor. The product should be installed on flat and solid foundation
Voltage Regulation	±10%
Frequency Regulation	± 5%
Ambient Temperature	-5°C~40°C
Attitude	Not exceed 1000 Meters
Relative Humidity	Less than 85% RH (Non-Condensation)
Structure
Shell Material	Aluminum Alloy (Adc356), Cast lron (Fc25)
Lubrication	Grease NO.0
Bearing	Grease Pre-Packed Double-Shield Rolling Bearing.
Terminal Box	Larger Size Made by Pressed Steel Which can be Set 900 Apart with
Terminal Box	Conduit Hole Cable Entrance at Left Side View from The Drive End.
Lead Terminal	Solderless Lug Teminal
Painting	Phenolic Rust Proof Plus Lacquer Surface Finished Painting in Blue Color
Bolt Thread	ISO Metric System
