YC YCL single phase motor, single phase motor, 1hp 2hp 3hp 4hp 5.5hp 110/220V AC yl series binary capacitor motor

Supplier: Taizhou Julante Electromechanical Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Angela Ye
Price: $40.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Applicable machinery and equipment:	Drilling rigs, blowers, pumps, etc.	port:	Ningbo/Shanghai
Protection class:	IP54/IP55	responsibility:	S1
payment terms:	L/C, D/P, D/A, T/T, MoneyGram	color:	blue/yellow/red/customized
model:	YL YC Balrog YY	Supply capacity:	10000 pieces per month
efficiency:	other	Origin:	Zhejiang, China
Insulation class:	early / late	Packaging Details:	Single Phase 8024 0.75KW 1HP Carton and Plywood Box
high:	Not more than 1000m	Certification:	CE
Protective function:	fully enclosed	frequency:	50 Hz
Ambient temperature:	-15℃≤0≤40℃	product name:	YC YCL
AC voltage:	110/220 volts	Warranty:	1 year
stage:	Simplex	brand:	Jurant
type:	YCL motor monolithic, induction motor

Product Description

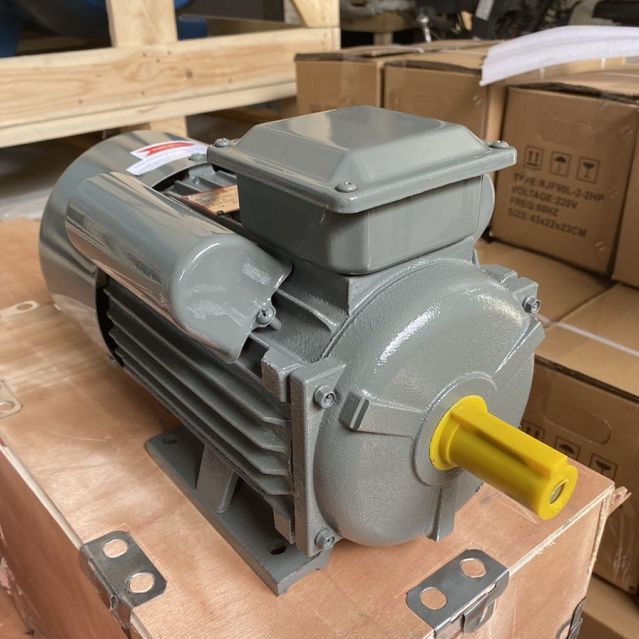

YC YCL single phase motor, single phase motor, 1hp 2hp 3hp 4hp 5.5hp

YC series single-phase double-capacitor asynchronous motors are newly developed by our company and designed and manufactured according to national standards. They have the characteristics of low noise, compact structure, light weight, and convenient maintenance. They are widely used in air compressors, water pumps, fans, refrigerators, medical Apparatus, small machinery, etc., especially suitable for occasions with only single-phase power supply.

ambient temperature	-15℃≤0≤40℃
high	Not more than 1000 meters
Rated voltage	220V±5%
rated frequency	50 Hz
Responsibilities/Levels	continue to operate
insulation level	Grade B/F
degree of protection	IP44/IP54
cooling method	ic0141
