4W AC Synchronous Gear Motor for Electric Christmas Tree

Product details
port:Ningbobrand:gear synchronous motor
Key words:gear synchronous motormodel:gear synchronous motor
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramPackaging Details:Gear synchronous motor carton
stage:SimplexProtective function:Explosion-proof
Origin:Zhejiang, ChinaCertification:CCC, CE, RoHS, VDE
frequency:50/60 HzSupply capacity:100000pcs gear synchronous motor per month
efficiency:browser 2AC voltage:208-230 / 240 volts
type:synchronous motorWarranty:1 year

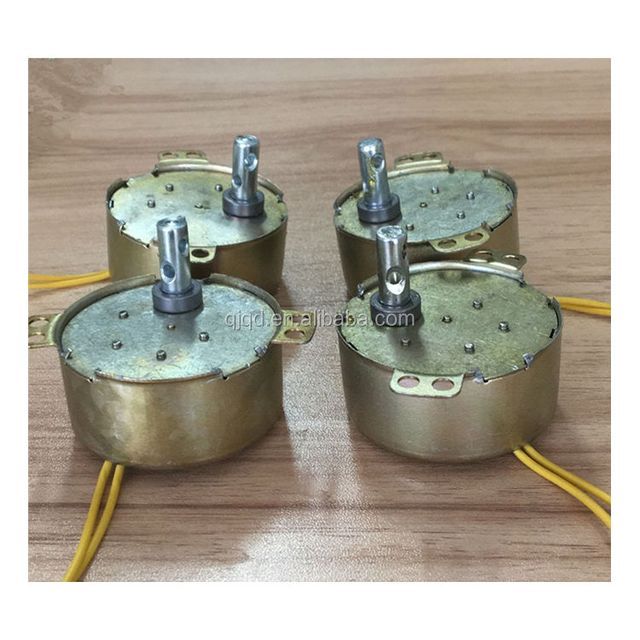

4W AC Gear Synchronous Motor for Electric Christmas Tree

Product Description

1. Typical application:

1) Household appliances: electric fans, air conditioners, turntables for microwave ovens, quartz heaters, dishwashers, can openers, knife sharpeners, washing machines, citrus juicers, juicers, etc.

2) Indoor and outdoor electric decorations: rotating electric tables, stage curtains, tape recorder turn lights, decorative lights, fiber optic turn lights, Christmas trees, rotating electric advertisements and shelves, etc.

3) Motors: automatic vending machines, automatic electrical instruments, rotating TV antennas, etc.

4) Technological equipment: rotating electric models, electric curtains, etc.

5) Medical equipment: mixers, pumps, etc.

6) Industrial fields: electric bus meters, etc.

2. Features:

1) Stable speed

2) Long life

3) High torque

4) High efficiency

5) Low noise

6) Low vibration

7) The direction of rotation can be arbitrary, directional (CW or CCW) or reversible (controlled by wiring)

8) Wire lead-out or terminal lead-out can be used

3. Electrical specification:

1) Rated voltage: AC 12V, 24V, 48V, 110V, 220V

2) Nominal frequency: 50/60 Hz

3) Rated power consumption: 3.5 ± 0.5 W

4) Current consumption: 30 ± 5 mA

5) Withstanding voltage: 1500 VAC / 1Min

6) Insulation resistance: over 100 MΩ at 500 VDC

7) Insulation class E

4. Mechanical specifications:

1) Direction of rotation: single clockwise, single counterclockwise and free direction

2) Output speed: 0.1 ~ 60 rpm

3) Working torque: 1.5kg-cm ~ 20 kg-cm

5. General specifications:

1) Operating temperature range: -10~+60°C

2) Temperature rise range: 60K MAX

3) Life expectancy: about 10,000 hours under normal load torque and normal operation

4) Net weight: 150 grams

5) Leads: UL compliant, specific lengths or connectors available

6) Working noise: about 40 decibels at a maximum distance of 30 cm

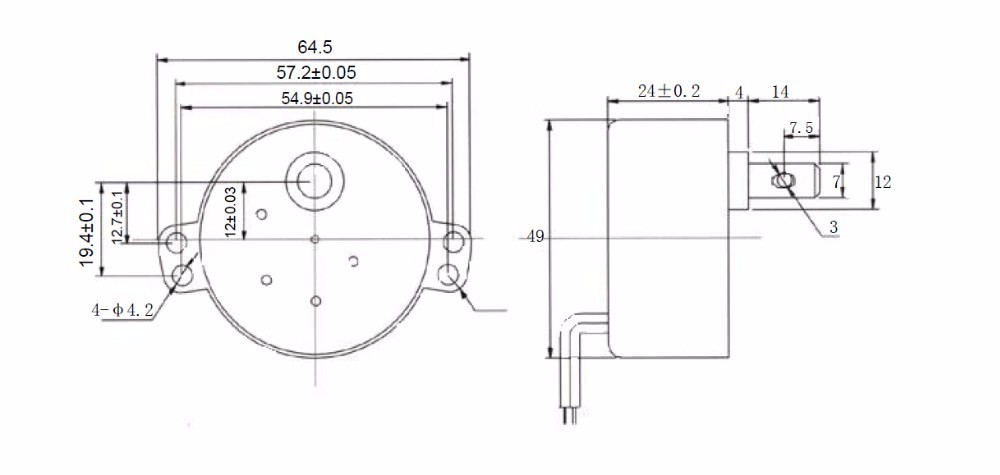

7) Dimensions: diameter: φ49.0 mm, height: 18.5mm, 21mm, 24 mm

8) Packing: 120pcs/carton, 380 x 280 x 320mm, 15kg



Rated voltage

AC 12V, 24V, 48V, 100V, 120V, 230V

Dielectric strength

1500VAC/1 minute

energy consumption

≤4W

noise

<40dB

Input Current

<25mA

Coil temperature rise

≤60K

rated frequency

50/60 Hz

insulation level

Second

speed

0.1, 1, 2, 3, 4, 5, 10, 15, 60 rpm

insulation power

1500 V/1 minute

Running torque

1.5 kg-cm~ 20 kg-cm

turn around

CW, CCW or Free

Insulation resistance

>100MΩ







Other specifications:
Rated voltage: 12, 24, 100, 110~120, 200~240VAC
Power frequency: 50/60Hz
Input power: 4W
Number of poles: 8-16P
Rotor speed: 500/600RPM
Speed: 1-60RPM
Stall torque: 500gm-cm ~ 20Kg-cm
Rotation: clockwise, counterclockwise, free
Working temperature: -10℃~60℃
Dielectric strength: AC 1500V-1Min
Insulation class: F class
Wire: 1007/1015 x AWG22 x 200mm





Packaging and Shipping

Packing details: carton
Delivery Details: Geared synchronous motors are shipped 30 days after payment.
