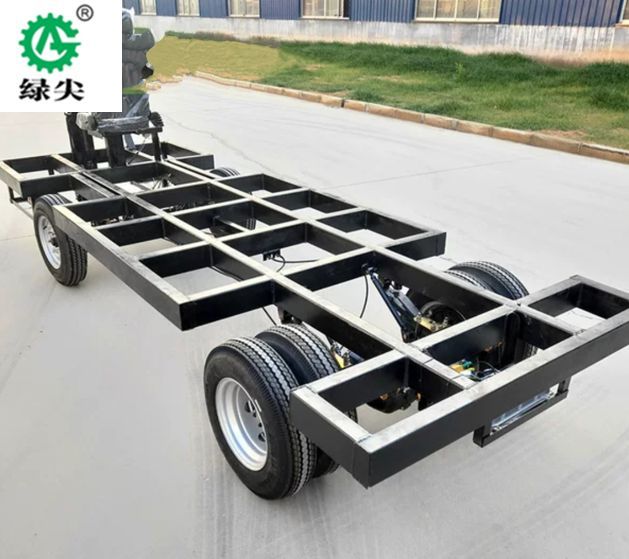

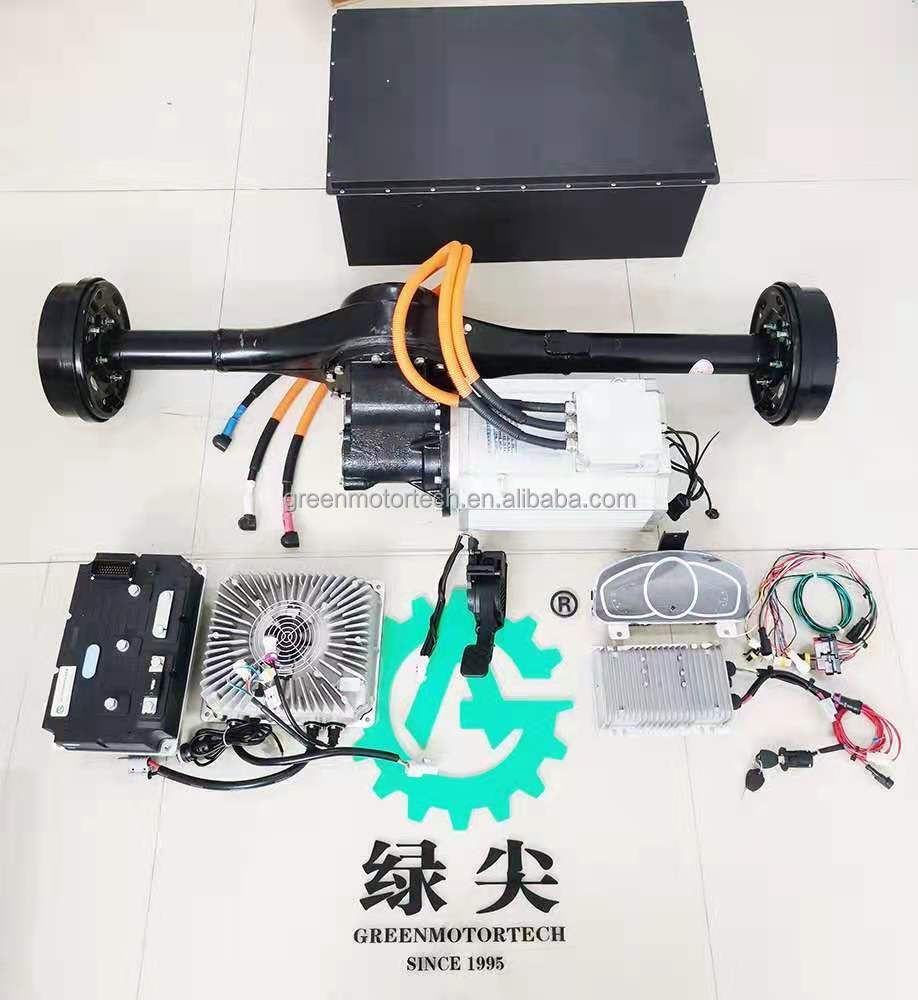

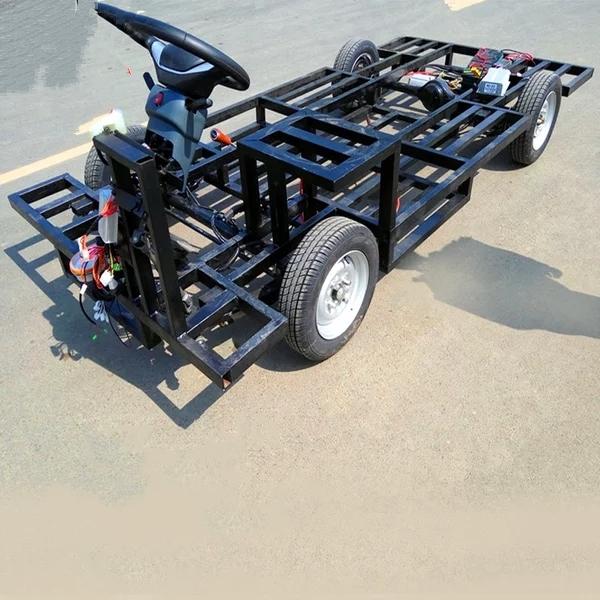

High-quality electric vehicle frame, motor, controller, battery, old car conversion kit

Supplier: Foshan Shunde Green Motor Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Esta ZHONG
Price: $800.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

type:	induction motor	strength:	3KW ~20KW
Shaft length:	custom made	stage:	three phase
Peak torque:	210 Nm	scope:	200 kilometers
Packaging Details:	wooden box	product name:	electric drive system
Protection class:	IP65	brand:	GMT
Package preview:		payment terms:	wire transfer
Battery Type:	Lithium iron phosphate	brake:	drum brake
Origin:	Guangdong, China	cooling method:	air/water
Protective function:	anti-drip	Maximum speed:	120km/h
model:	3~20KW	AC voltage:	36V~114V
Warranty:	1 year

Product Description

product name

Drive axle

Drive axle introduction

The transaxle is a fundamental and critical component in the electric vehicle assembly process. High-quality transaxle with low noise
Affordable loadouts will keep you safe and enhance your driving experience.

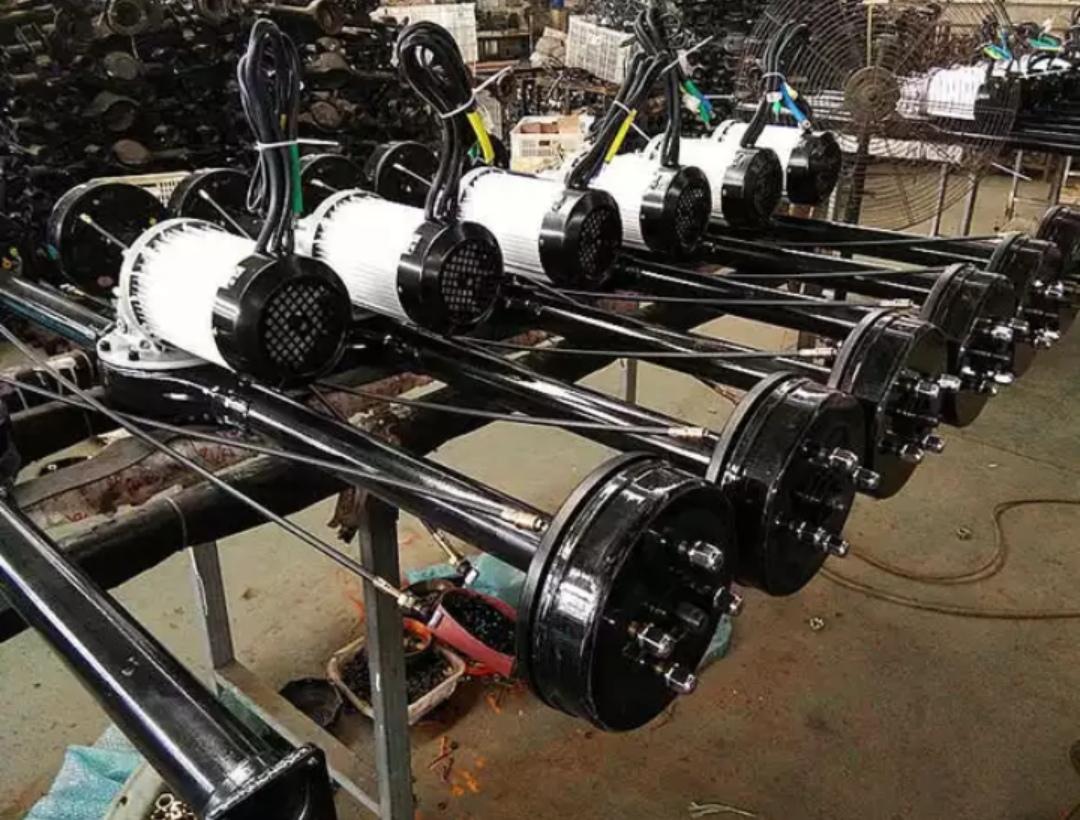

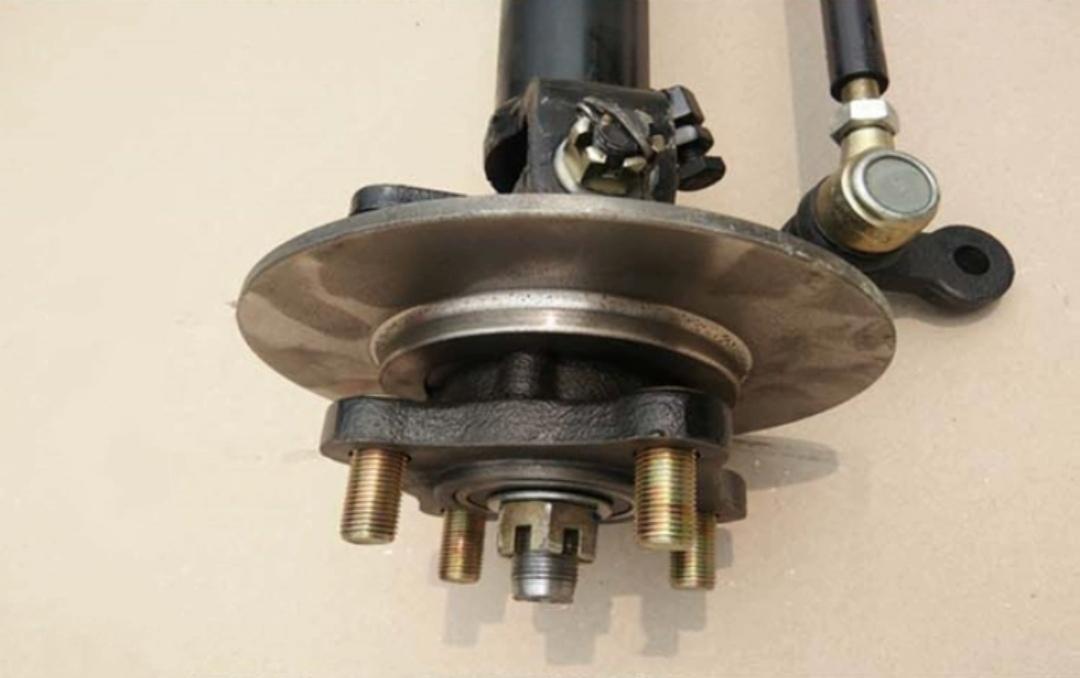

Let's take this axle as an example to share more knowledge about the transaxle. It is designed with two hubs, custom PCD size,
Specify the gear reduction ratio and integrate with our motors.

When we turned it on, we saw it run smoothly with very little noise.

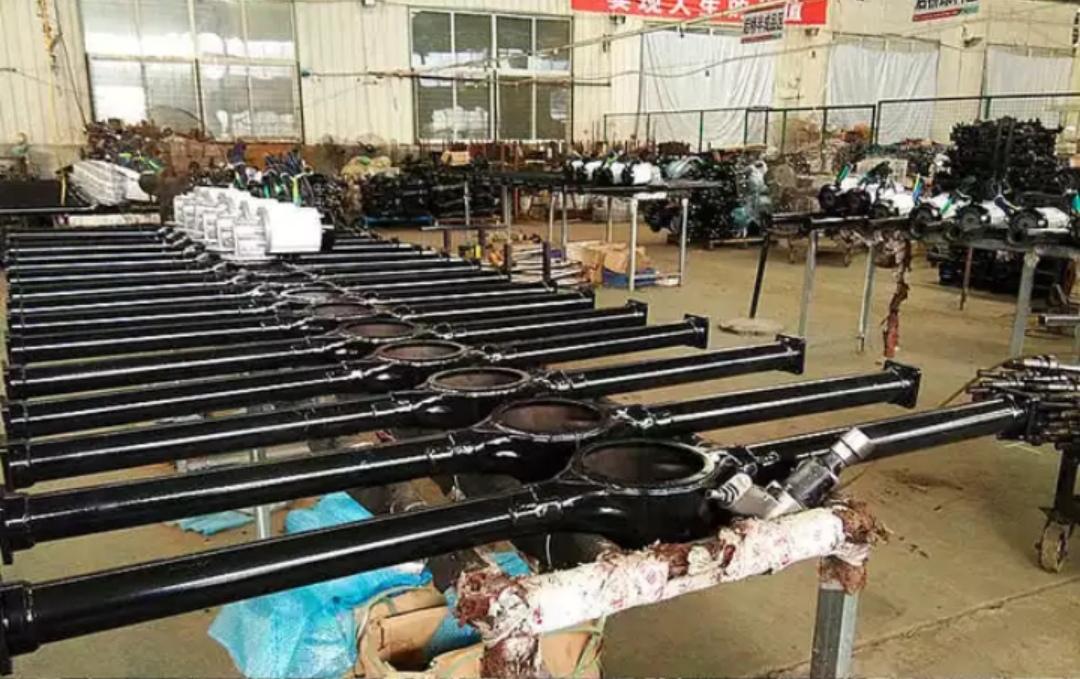

We design rear axle axle loads from 300kg to 5000kg, they are widely used in golf carts, cars, mini buses and trucks

with different loading purposes.

Proper maintenance will greatly increase the life of your axle. Just add gear oil every 3000 miles. you
Should drive the car to a 30-degree slope and unscrew the oil plug at the bottom of the gearbox? , drain the residual oil first,
Then tighten with Xx screws... and add about 0.7L of gear oil to the top of the gearbox.

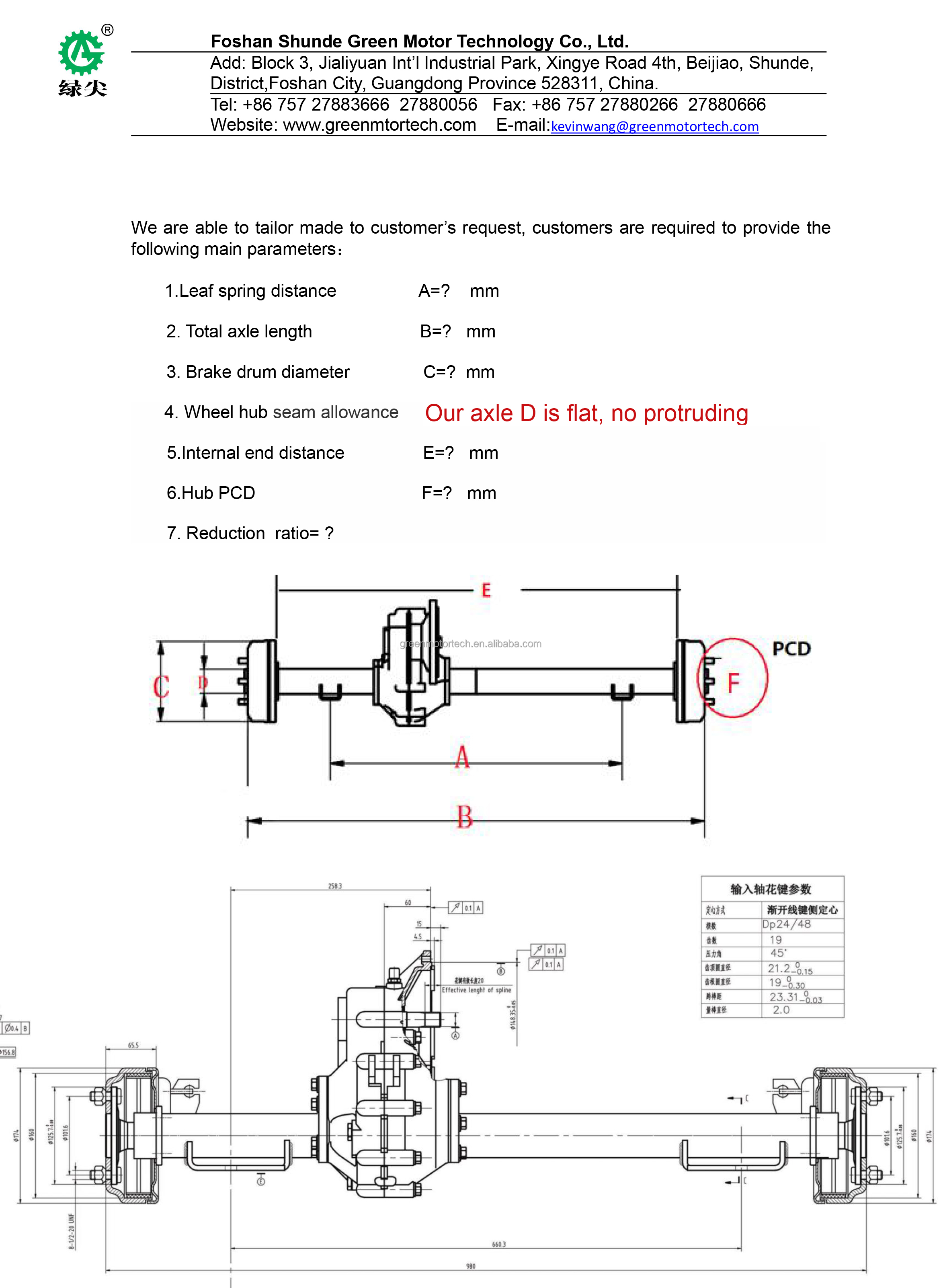

Dear customer, when you order a transaxle from us, please pay attention to the following parameters, we will design the drawing according to the received parameters. This includes,

1. The total length of the required axle; 2. The distance of the leaf spring; 3. The axle load requirements and dimensions of the brake drum; 4. The seam allowance at the connection between the hub and the motor. 5. Inner end distance; 6. Hub PCD size connected to the wheel. 7. Gearbox with reduction ratio, our gear ratio varies from 6 to 25.
