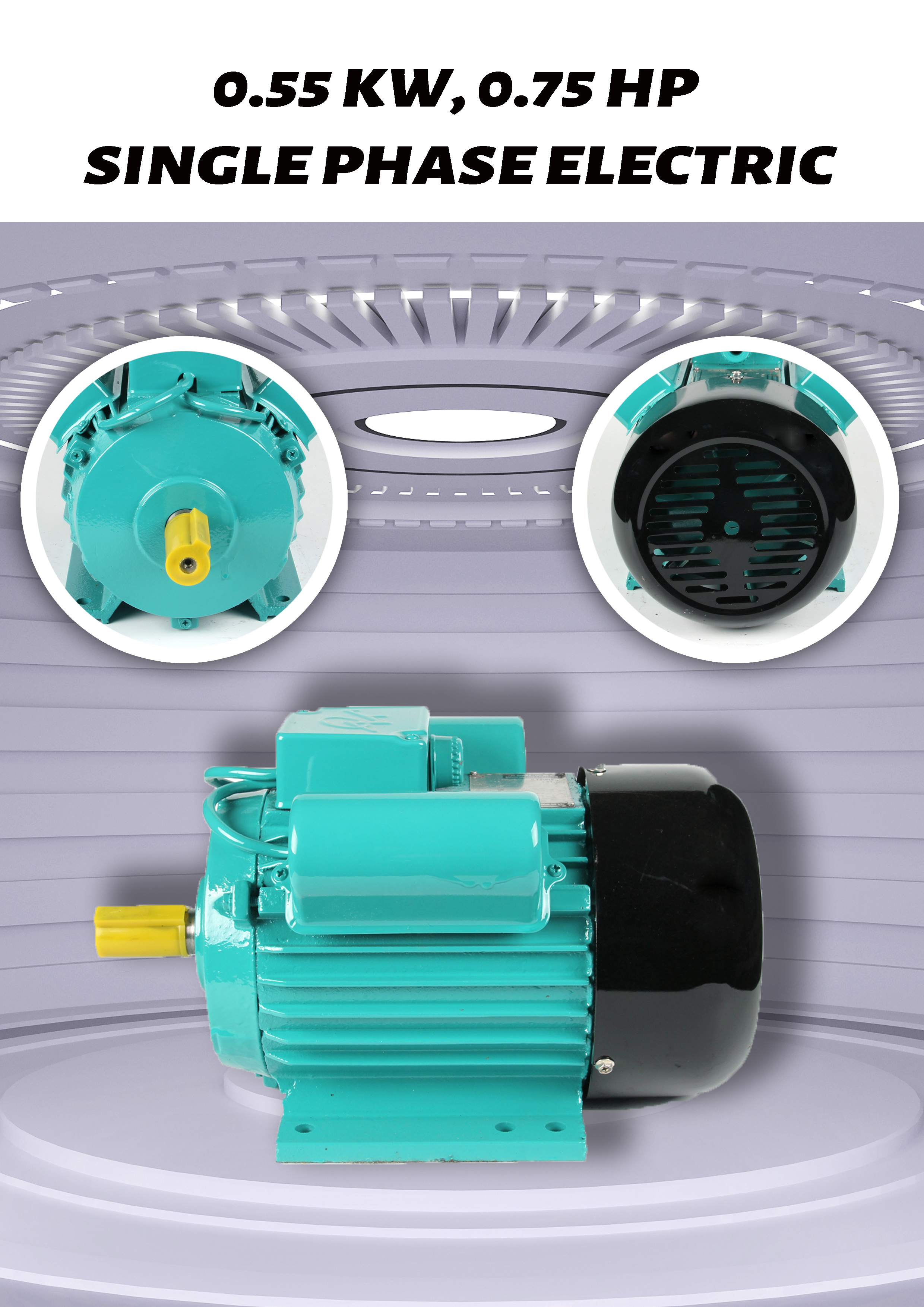

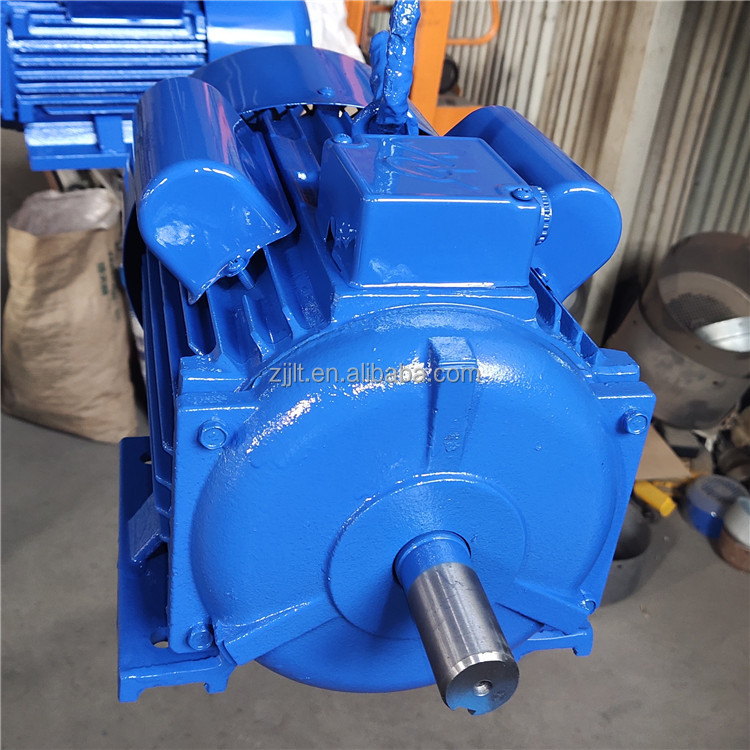

YL Single Phase 1HP 1.5HP 2HP 3HP 4HP 5.5HP 90W 120W 180W 250W 370W 550W 750W 3KW 4KW Induction Single Phase AC Motor

Supplier: Taizhou Julante Electromechanical Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Angela Ye
Price: $65.00 / 2 - 9 pieces
$56.00 / 10 - 99 pieces
$25.00 / >=100 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Rated voltage:	220v, 240v AC, 110v 50hz, 110v 60hz	type:	induction motor
payment terms:	L/C, T/T	Responsibility/Rating:	S1 continuous operation
Certification:	ce	Origin:	Zhejiang, China
frequency:	50/60 Hz	model:	YL series
color:	custom made	AC voltage:	Single phase 220V
Insulation class:	f	Ambient temperature:	15-40
Protective function:	fully enclosed	efficiency:	browser 1
Package preview:		Supply capacity:	5000 pieces per month
stage:	Simplex	brand:	Hurant
Processing:	Yes	Warranty:	3 months - 1 year
cooling method:	ICO141	port:	Ningbo/Shanghai
Packaging Details:	220v AC single phase 2hp motor packed in carton or plywood box	Protection class:	IP54, IP55
high:	Not more than 1000 meters

Product Description

Series Heavy Duty Single Phase Capacitor Start Induction Motors YC series motors are Totally Enclosed Fan Cooled (TEFC) heavy duty single phase induction motors. The installation dimensions are in full compliance with IEC standards. Motors with a rated output of 3HP and below use capacitors to start, and motors with 4HP and above use capacitors to start and run. YC series motors integrate modern design and high-quality materials. They have the characteristics of elegant appearance, excellent performance, and convenient maintenance. They have the advantages of large starting torque, stable rotation, low temperature rise, low noise, and good overload performance. YC series motors are suitable for driving small drilling machines and water pumps, especially for family workshops with only single-phase power supply.

Operating conditions:
Ambient temperature:	-15℃≤0≤40℃
manner:	Not more than 1000 meters
Rated voltage:	220V±5%
Rated frequency:	50Hz/60Hz
Insulation class:	Class B
Protection class:	Continuous (S1)
Responsibility/Rating:	IP44
Cooling type:	IC0141
If you want to know more, please consult me
