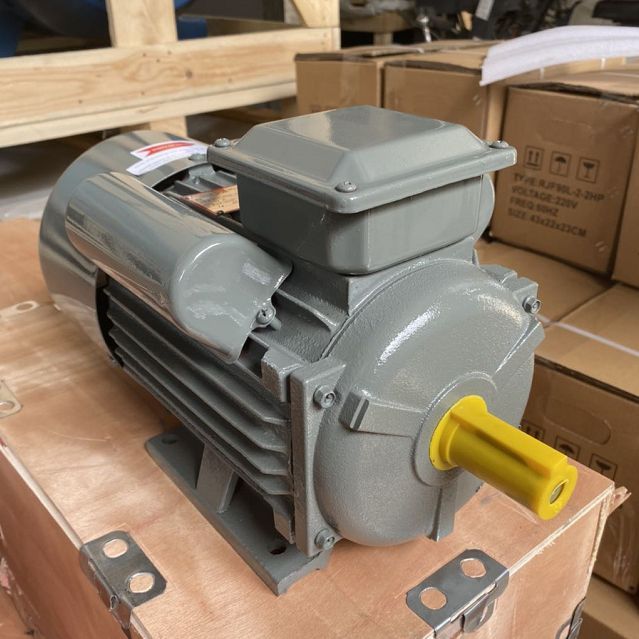

YCL single-phase motor 1HP 2HP 3HP 5HP 10HP 110/220V, 220-440V motor monofasico, single-phase motor

Supplier: Taizhou Julante Electromechanical Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Angela Ye
Price: $40.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

AC voltage:	110/220 volts	stage:	Simplex
model:	YCL single phase motor	Protection level:	IP54/IP55
efficiency:	other	Packaging details:	Cartons with pallets and plywood boxes
high:	Not more than 1000m	Applicable machinery and equipment:	Drilling rigs, blowers, pumps, etc.
frequency:	60 Hz	Ambient temperature:	-15℃≤0≤40℃
Supply capacity:	10,000 pieces per month	Package preview:
Protective function:	Fully enclosed	Certification:	CCC, CE, ISO9001-2008
responsibility:	S1	Cooling type:	IC0141
Warranty:	1 year	product name:	YCL single-phase motor 1HP 2HP 3HP 5HP 10HP monofasico
payment terms:	L/C, D/A, D/A, wire transfer	port:	Ningbo/Shanghai
type:	YC YCL, induction motor	color:	blue/yellow/red/customized
brand:	Jurant	Insulation level:	morning/evening
Place of origin:	Zhejiang, China

Product Description

YCL single-phase motor 1HP 2HP 3HP 5HP 10HP 110/220V, 220-440V motor monofasico, single-phase motor

YC series single-phase double-capacitor asynchronous motor is newly developed by our company and designed and manufactured according to national standards. It has the characteristics of low noise, compact structure, light weight and easy maintenance. It is widely used in air compressors, water pumps, fans, refrigerators, medical Equipment, small machinery, etc., especially suitable for occasions with only single-phase power supply.

ambient temperature	-15℃≤0≤40℃
high	Not more than 1000 meters
Rated voltage	220V±5%
Rated frequency	50 Hz
Responsibilities/Levels	continue to operate
Insulation level	Class B/F
Protection level	IP44/IP54
cooling method	ic0141
