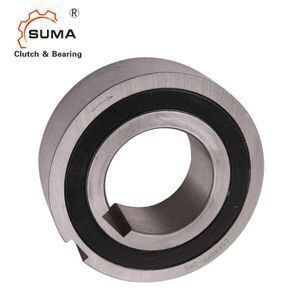

One Way Sprag Clutch Bearings CSK Series as Overrunning Clutch and Backstop clutch

Product details
Product name:CSK Sprag bearing;Type:sprag;
Port:Shanghai,Nningbo;Package:single box or as your requirments;
Model Number:CSK;Packaging Detail:Single Box or as your requirments for CSK Sprag bearing;
Supply Ability:50000 Piece/Pieces per Month;Seals Type:sealed;
Stock:rich;Place of Origin:Jiangsu China;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Application:Industrial machines;
Precision Rating:P0;Brand Name:SUMA or OEM;
Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Printing Shops,Construction works ,Energy & Mining;Material:GCr15;
OEM:ACCEPT;Quality:OEM Service;
Type:Sprag Type;Port:Shanghai;

 One Way Sprag Clutch Bearings CSK Series as Overrunning Clutch and Backstop clutch from China Manufacturer

Product Description

Description of One Way Sprag Clutch Bearings CSK Series as Overrunning Clutch and Backstop clutch

CSK series one way freewheels are sprag freewheels with bearing support and ball bearing proper-ties. The freewheels are supplied grease-filled for normal operating conditions.
The freewheel is built into the customer housing. This makes compact, space-saving fitting solutions possible.
The freewheels CSK series are used as:
Backstops
Overrunning Clutches
Indexing Freewheels



Nominal torques up to 325 Nm. The torque is transmitted on the inner ring and/or on the outer ring by press fit or keyway connection. Bores up to 40 mm.

The following series are available:



SeriesTorque transmission on2RS-seals
Outer ring byInner ring by
KeywayPress fitKeywayPress fit
CSK YES YES
CSK...2RS YES YESYES
CSK...P YESYES
CSK...P 2RS YESYES YES
CSK...PPYES YES
CSK...PP 2RSYES YES YES





Parameter sheet of One Way Sprag Clutch Bearings CSK Series as Overrunning Clutch and Backstop clutch from China Manufacturer





+
TypeSizeBearing series Bearing loadsWeightDrag torque
dynamicstatic
CSK (KK)d TKN1)N maxDLCC0 TR
[mm][Nm][min-1][mm][mm][kN][kN][kg][Ncm]
8*2.5150002293.280.860.0150.5
1262019.31000032106.12.770.040.7
15620217840035117.43.420.060.9
17620330735040127.93.80.071.1
20620450600047149.44.460.111.3
256205855200521510.75.460.142
3062061384200621611.76.450.214.4
3562071753600721712.67.280.35.8
403253000802215.5412.250.57
CSK..2RS8** 2.5150002293.280.860.0150.8
129.31000032146.12.770.053
15 17840035167.43.420.074
17 30735040177.93.80.095.6
20 50600047199.44.460.1456
25 855200522010.75.460.1756
30 1384200622111.76.450.277.5
35 1753600722212.67.280.48.2
403253000802715.5412.250.610





+
Type  Size Bearing series              Bearing loadsWeight  Drag torque
dynamicstatic
dTKN1)nmaxDLbtCC0TR
[mm][Nm][min-1][mm][mm][mm][mm][kN][kN][kg][Ncm]
CSK..P 1262019.3100003210  6.12.770.040.7
1562021784003511  7.43.420.060.9
1762033073504012  7.93.80.071.1
2062045060004714  9.44.460.111.3
2562058552005215  10.75.460.142
30620613842006216  11.76.450.214.4
35620717536007217  12.67.280.35.8
4032530008022  15.5412.250.57
CSK..PP 156202178400351120.67.43.420.060.9
1762033073504012217.93.80.071.1
206204506000471431.59.44.460.111.3
25620585520052156210.75.460.142
306206138420062166211.76.450.214.4
3562071753600721782.512.67.280.35.8
403253000802210315.5412.250.57
CSK..P-2RS       129.3100003214  6.12.770.053
151784003516  7.43.420.074
173073504017  7.93.80.095.6
205060004719  9.44.460.1456
258552005220  10.75.460.1756
3013842006221  11.76.450.277.5
3517536007222  12.67.280.48.2
4032530008027  15.5412.250.610



Mounting Example

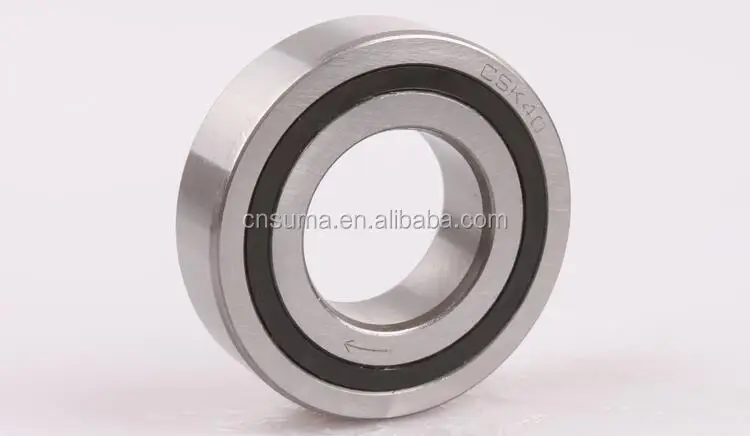

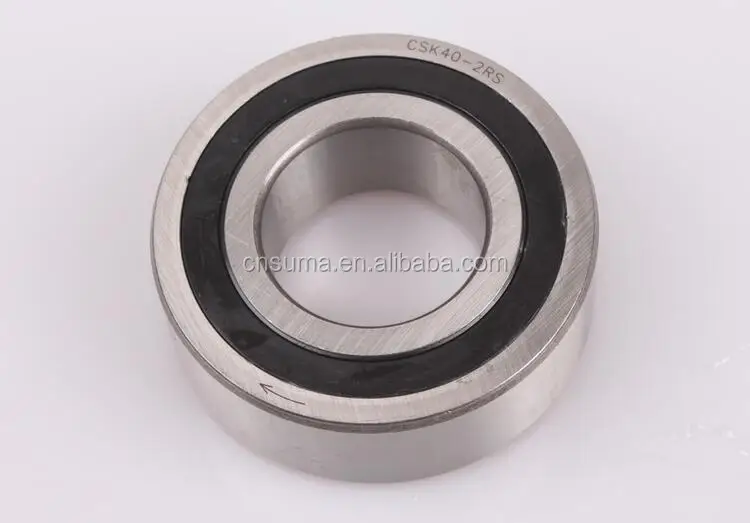

Images

Certifications

Company Information

Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and needle roller bearing with high technology

Production and Test

Cooperative Relation

FAQ

Q: How do you pack the goods?

  •  Total less than 25 KG :  Each in white box + 19*18*9cm box + 29*28*19CM carton box
  •  Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A:  It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  •    Small items: In stock.
  •     Medium Items: 10-15 Days
  •     Big items: 20-25 Days
