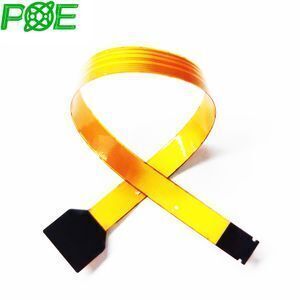

China Manufacturer FPC quick turn flexible circuit board electronic factory

Supplier: Shenzhen POE Precision Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Vicky Liang
Price: $0.10 /piece
Min. Order: 1 piece

Click here to contact

Product details

Base Material:	Polyimide;	Board Thickness:	1.6 mm;
Plugging Vias Capability:	0.2-0.8mm;	PCB Standard:	IPC-II Standard;
Min. Line Spacing:	4 mil;	Min. Line Width:	4 mil;
Port:	Shenzhen,Hongkong;	Testing:	E-Testing;
Impedence Control Tolerance:	±5%;	Certificate:	ISO,UL, SGS and ROHS;
Min. Hole Diameter:	0.2mm;	Copper Thickness:	1 oz;
Model Number:	POE-000123;	Surface Finishing:	HASL;
Layer:	1-2;	Supply Ability:	5000 Square Meter/Square Meters per Week;
Inner package:	Vacuum package;	Packaging Detail:	Vaccum package for bare PCB and ESD package for PCBA aasemble with POE box Package High frequency fr4 94v-0 pcb/custom made electronic circuit board;
Place of Origin:	China;	Product name:	FPC quick turn flexible circuit board electronic factory;
Brand Name:	poe;	Shipping:	DHL UPS TNT Fedex;
Payment Terms:	L/C,T/T,Western Union,Paypal;

Our Company

Our company is an OEM manufacturer that focus on PCB&PCBA manufacturing over 20 years.We have the capability to manufacture pcb ranging from basic single sided boards up to 28 layer multilayers ,and provide one stop turnkey services, including pcb layout, manufacture, assembly, components source , function testing services and so on.We started business in 1996 and always provide high quality,technically advanced products within the customer’s timescales so that we can provide the best electronic services for you.This commitment, combined with the wealth of experience and expertise we have built up over the years, means we can offer a total solution to our customers PCB requirements – from front end engineering through to in time deliveries.

Exhibitions 2019

Our Service

· PCB Production Service. (FR-4,HI-TG,Aluminum,FPC,TEFLON,CEM-1 )

· PCB FPC design Service.

· PCB Assembly Service. (SMT, BGA, DIP)

· IC program with HEX file.

· PCBA Housing assembly serivce.

· PCBA Final Functional Testing.

· PCB PCBA Copy Service.

· Electronic Components Purchasing & BOM List Purchasing Services.

· PCB SMT Stencil. (Laser cut & Etching)

· Cable assembly

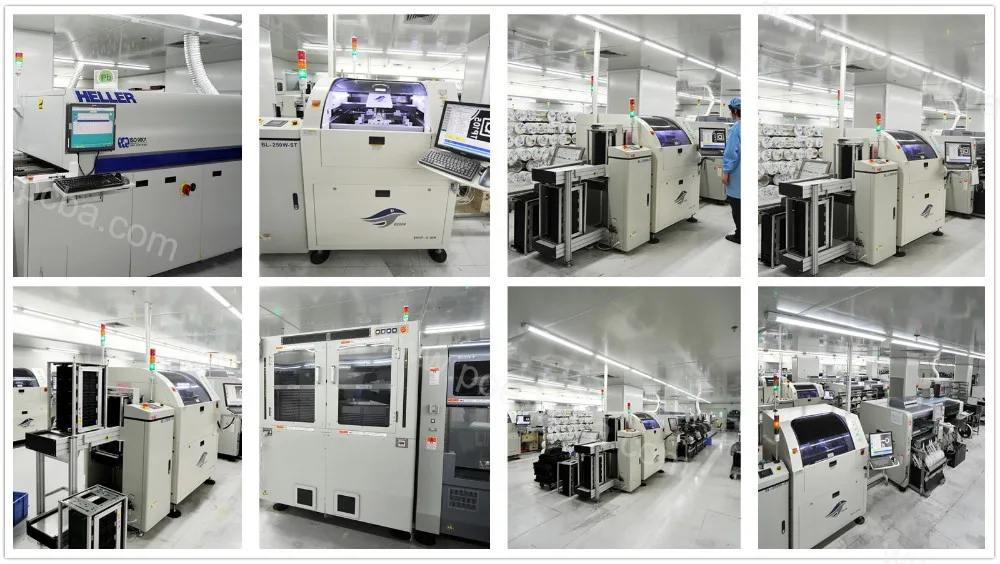

Equipments

POE has invested in the best equipment, environment and staff training. We have a production capability for standard and HDI , Rigid, RF and high frequency PCBs, together with throught hole and min 0201 chips, 0.2mm pitch BGA balls SMD soldering, in small batch, mid volume and high volume quantities.

POE Production Capability

Item	Capability
Base Material	FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon
Layers	1-28
Finised inner/outer copper thickness	1-6OZ
Finished board thickness	0.2-7.0mm
Min hole size	Mechanical hole: 0.15mm Laser hole: 0.1mm
Controlled Impedance	+/-5%
Plugging vias capability	0.2-0.8mm
Outline profile	Rout/ V-cut/ Bridge/ Stamp hole
Surface treatment	HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP…

Our equipments
1.Drilling workshop	4 drilling bits of drilling machine: 4 sets 2 drilling bits of drilling machine: 2 sets
2. photo plotting workshop	Israel “ORBOTECH” Photo Plotters
3.AOI	AOI machine
4.IPQC	“OXFORD” CMI 700 Copper Thickness Tester
5.Impedance test	USA “Tektronix” DSA 8200 Impedance Tester
6.Outline workshop	CNC routing machine: 7 sets angle-cutting machine V-cut machine
7.Testing Workshop	Surpass X-600: 2sets WTD FT-2808: 5sets WTD HV300: 1set
8.X-ray	X-ray machine

Delivery Time

Prototype		Mass productions (above 30 m2)
quick turn	usual time	Mass productions (above 30 m2)
24 hours	3-4 days	8-10 days
48 hours	5-6 days	10-12 days
72 hours	6-8 days	12-14 days
72 hours	8-10 days	16-18 days
96 hours	12-12 days	18-20 days
......	......	......

Application Fields/Customers

Package and Shipping

Inside Package: Vacuum package, Outer package: Carton box

Shipping:Depends on Customer's require, POE offfer economical fast forwarder

FAQ

Q1.What is needed for PCB PCBA quotation?
A: PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA: PCB information, BOM, (Testing documents...)

Q2. What file formats do you accept for PCB PCBA production?
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)

Q3. Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.

Q4. MOQ?
A: There is no MOQ in POE.We are able to handle Small as well as large volume production with flexibility.

Q5.Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
