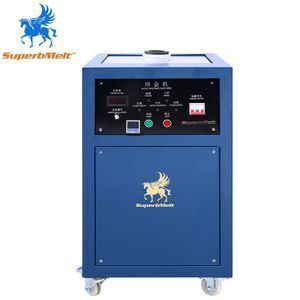

Portable Gold Induction Melting Machine

Supplier: Longgang Superb Electromachinery Co., Ltd.
Region: Guangdong, China
Contact: Mr Kelvin Lin
Price: $1200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Cooling:	Water chiller or tap water;	After-sales Service Provided:	Field maintenance and repair service;
Port:	Shenzhen;	Dimension(LWH):	530x530x900 mm;
Packaging Detail:	Plywood box;	Max temperature:	1800 Degree;
Melting time:	1.5 - 5 min;	Payment Terms:	L/C,T/T,Paypal;
Place of Origin:	Guangdong China;	Warranty:	1 Year;
Voltage:	220V/3-phase 380V;	Brand Name:	Superb;
Condition:	New;	Metal capacity:	1-10 kg;
Duty cycle:	100%;	Chamber model:	Crucible;
Weight:	18kg/55kg;	Working time:	24 hours;
Application:	Platinum , gold, karat gold and silver;	Technical support:	Technical support;
Type:	Induction Furnace;	Supply Ability:	200 Set/Sets per Month;
Certification:	CE Certificate;	Usage:	Melting Furnace;
Power(W):	3.5 kw/3.8 kw/15kw;	System:	IGBT;

This gold melting machine kit is mainly designed to melt small quantity of gold form 1-12kg.

Integrated design, easy installation, convenient to move.
A built-in water pump of SPB-H5/H8 for better cooling.

Max temperature: 1800℃.

It is also suitable to melt other precious metal like silver, copper, aluminum and their alloys.

One furnace can achieve a variety of metal melting

Comparing with resistance heating and propane melting, this gold melting machine adopts IGBT induction technology to improve melting efficiency dramatically.

Reduce the loss of precious metal, safe work, save operation cost

Convenient operation, equipped with various alarm functions.

Ensure the safety of machines and operators

Top-speed melting could be achieved within 4 minutes, 100% duty cycle, 24hours continuous working greatly improves the efficiency of production.
Extremely speedy melting within 2 mins per batch of SPB-H1/H2 gold melting furnace

Enhanced monitoring and diagnostics system, guaranteed machine’s high stability, reliability, and security.

What upgrades have we made to the H5 and H8?

More models available for your choice

Model number	SPB-H1	SPB-H2	SPB-H5	SPB-H8
Power source	Single phase 220V±10%, 50/60Hz	Single phase 220V±10%, 50/60Hz	Three phase 380V±10%, 50/60Hz	Three phase 380V±10%, 50/60Hz
Power	3.5 kw	3.8 kw	15 kw	25 kw
Applicable metal	Gold, Silver, Copper, Brass, Bronze, and their alloys	Gold, Silver, Copper, Brass, Bronze, and their alloys	Gold, Silver, Copper, Brass, Bronze, and their alloys	Gold, Silver, Copper, Brass, Bronze, and their alloys
Melting time	2 minutes	2 minutes	4 minutes	4 minutes
Max capacity	24K Gold: 1.2 kg 18K Gold: 1.0 kg 925 Silver: 0.6 kg	24K Gold: 2.6 kg 18K Gold: 2.0 kg 925 Silver: 1.2 kg	24K Gold: 7.0 kg 18K Gold: 5.0 kg 925 Silver: 1.5-3.0 kg	24K Gold: 8.5-9.6 kg 18K Gold: 7.0-8.0 kg 925 Silver: 3.0-4.0 kg
Max temperature	1600℃	1600℃	1800℃	1800℃
Temperature control k-type	Optional	Optional	Optional	Optional
Dimension	320280550mm	340380680mm	530530900mm	6805001180mm
Weight	20 kg	25 kg	72 kg	92 kg
Heating technology	Induction heating	Induction heating	IGBT Induction heating	IGBT Induction heating
Water pump	Optional	Optional	Equipped	Equipped

Why choose us

There are many patented products are certified by CE, SGS. Our company also passed ISO 9001:2015 quality management system and authorzied with AAA credit enterprise by government. All of them further verify our top quality for your business safety.
