Mini vacuum induction casting machine for jewelry

Supplier: Longgang Superb Electromachinery Co., Ltd.
Region: Guangdong, China
Contact: Mr Kelvin Lin
Price: $9000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power:	4.5kw;	Weight:	100kg;
Voltage:	Three phase 380 V;	Payment Terms:	L/C,T/T;
Condition:	New;	Power(W):	4.5kw;
Packaging Detail:	Plywood box;	Metal capacity:	150g;
After-sales Service Provided:	Field maintenance and repair service;	Certification:	ISO9001:2000;
Port:	Shenzhen;	Supply Ability:	200 Set/Sets per Month;
Gas Pressure:	Max. 3.5 MPa;	Melting Method:	Induction Heating;
Cooling:	Water chiller or tap water;	Technical support:	Technical support;
Brand Name:	SuperbMelt;	Application:	Gold, karat gold,silver,Platinum and copper;
Ultimate vacuum:	-0.1 MPa;	Control System:	PLC;
Melting time:	2 min;	Dimension(LWH):	customized;
Place of Origin:	Guangdong China;	Warranty:	1 Year;

Jewelry vacuum casting machine is customized to melt and cast 1-150 g jewelry gold, platinum, silver and other precious metal.

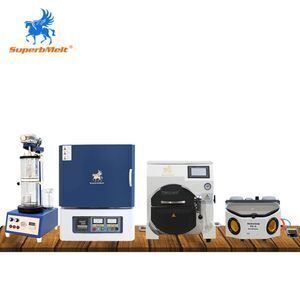

SuperbMelt jewelry casting kits are designed of small quantities of jewelry casting, jewelry sample making, dental, and some precious metal DIY casting;

What are the advantages of our machines in comparison with traditional methods?

Advantages of SuperbMelt mini vacuum jewelry casting kits

1. The machine uses a quartz crucible, which can cast most of every metal at a maximum temperature of 2600 degrees, including gold, silver, platinum, palladium, etc.

2. The jewelry melting and casting is under vacuum with argon pressure to protect your precious jewelry from oxidation. It achieves high density, high compactness, with almost porosity-free and reaches basically non-shrinkage cavity casting.

3. Compact design, small size. Perfectly suited for small jewelry castings and small jewelry series

4. With PLC control system, makes the casting process more intelligent. The accuracy of the temperature control is accurate ±2°C.

5. With various alarm system, the machine will stop working immediately to protect it if any error occurred.

6. Built-in vacuum pump, compared to other machines on the market, those are external, more savings in the extra cost of vacuum pumps, less space.

7. Automatic casting, including the automatic flip of the casting room. Oblique crucible and gypsum mold, when the melting is completed, the casting chamber will automatically rotate, so that the metal liquid automatically into the gypsum mold. This process is fully automated, requires no man-made operation, cost savings and manpower savings.

8. 4.5 kW induction generator for quickly reaching the melting temperature.

Casting process of small quantity jewelry casting

Parameters for vacuum casting machine

Mini jewelry casting machine parameter

Model	SPB-MVC150
Power Requirement	220V
Power Consumption	4.5kw
Maximum Temperature	2600 ℃
Melting Method	Induction Heating
Capacity	150g Gold
Application	Gold, silver, platinum, palladium, steel, copper
Control System	PLC
Melting Time	5-6mins
Gas Pressure	Max. 3.5 MPa
Pressurized Atmosphere	Argon
Ultimate vacuum	-0.1 MPa
Type of Crucibles	Quartz crucible
Cooling System	Water cooling
vacuum pump	built-in
automatic vacuum function	Y
Flip function	Automatic flip and vacuum casting

Mini vacuum investment powder mixer parameter

Model	SPB-MIPM1
Power source	220V
Power	350w
Dimension	540510390mm
Weight	18kg

Mini wax burnout furnace parameter

Model	SPB-MWF1
Power source	220V
Power	5kw
Chamber size	300200120mm
Max Temperature	1200 ℃
Weight	60kg

Why choose us

There are many patented products are certified by CE, SGS. Our company also passed ISO 9001:2015 quality management system and authorzied with AAA credit enterprise by government. All of them further verify our top quality for your business safety.
