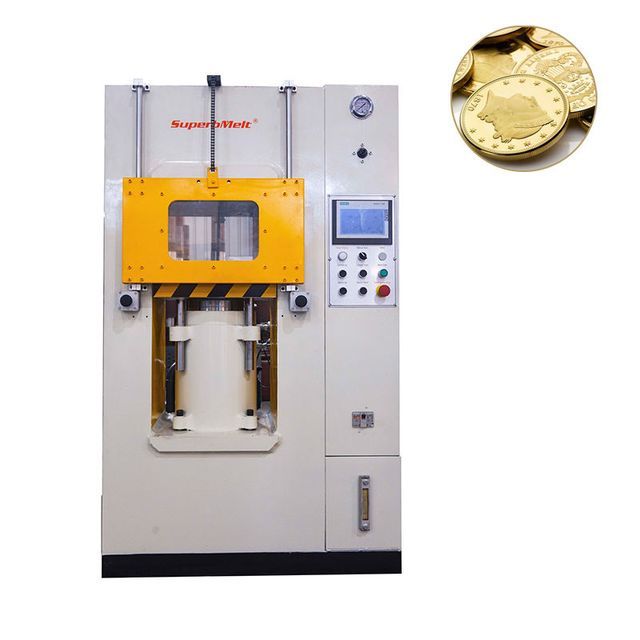

SuperbMelt Souvenir Making LOGO Stamping Coin Minting Machine Hydraulic Machine Coin Slot Machine

Supplier: Longgang Superb Electromachinery Co., Ltd.
Region: Guangdong, China
Contact: Mr Kelvin Lin
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	ISO9001:2000, EU certification	Weight (kg):	1900
weight:	210-250kg	technical support:	technical support
Supply capacity:	200 sets per month	Warranty:	1 year
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	brand:	super melt
Main selling points:	easy to operate	Maximum temperature:	1600℃
Melting time:	3-5 minutes	Marketing Type:	New product
temperature control:	by PID	Applicable industries:	Minting, metalworking
Core component warranty:	18 months	Dimensions (LWH):	custom made
Applicable metal:	Gold, silver, copper, brass, bronze and their alloys	Core components:	PLC, motor, water pump
Origin:	Guangdong, China	Showroom location:	India
Package preview:		Metal capacity:	2-6kg
Health status:	new	Type of machine:	One-stop solution provider
Voltage:	220V/three-phase 380V, 220V/three-phase 380V	strength:	custom made
port:	Shenzhen	Mechanical test report:	if
Video shipment inspection:	if	Packaging Details:	Plywood boxes
cool down:	chiller or tap water

Product Description

SPB-100TS

SPB-300TS

SPB-500TS

thing			unit	SPB-100TS	SPB-300TS	SPB-500TS
Rated Capacity			Ton	100	300	500
maximum. System pressure			MPa	25	twenty four	25
Mobile workbench travel			mm	110	150	150
Activity table height			mm	800	940	850
open height			mm	310	400	450
Table travel speed	near	mm/s	160	210	215
Table travel speed		return	mm/s	145	210	200
Mobile table size	Inter-column LR	mm	430	560	600
Mobile table size		FB rim	mm	430	560	560
Dimensions	revolver	mm	980	1260	1480
		face book	mm	1150	1340	1520
		h	mm	1930	2340	2300
Motor Power			kilowatt	11	16	twenty three
weight (approximately)			Kilogram	1500	3620	6700

Simple and safe to use

Parameters and speed can be adjusted on the touch screen, easy to operate.

Ensure safety and easy to know the error, easy to do after-sales service. Due to the automatic alarm and automatic troubleshooting system.

energy saving effect

Although the machine offers high power, it has a compact design. This makes it ideal for small and work spaces with an inexpensive investment. Its compact design may also make it ideal for remote operations and learning
process.

increase productivity

The product relies on servo-hydraulic control, which makes it highly productive. With this machine, your company's productivity will increase by at least 40% compared to CNC stamping machines, which means you will be far ahead of your competitors.

Features

* Servo motor drive system
This product has a servo motor drive system which is perfect for the different speeds and pressures required when pressing gold and silver coins. This feature also ensures smooth machine operation and noise control. Stability is due to the fact that it uses well-known hydraulic components highly optimized for various environments and applications.

* PLC control system
This is an innovative system that gives the machine high reliability because it makes the operation more convenient. This is a feature that traditional hydraulic systems lack and therefore makes this machine worth the investment.

*Simple functionality
The product, while taking care of complex duties, does not rely on highly complex functions to get the job done. Hydraulic coin presses come from experienced manufacturers who understand the importance of user experience, so they keep the functionality as simple and straightforward as possible.

* Compact design
Although the machine offers high power, it has a compact design. This makes it ideal for small and work spaces with an inexpensive investment. Its compact design may also make it ideal for remote operations and learning processes. For example, SuperbMelt utilizes its compactness to perform various types of production requiring both low and high speed applications.

application

1. This hydraulic coin press with a steel body, hydraulically operated, is specially designed for minting gold and silver coins, as well as medals and gold bars. It uses enough force to crush 150 tons of metal. It's best described as an upstroke stamping machine, offering RAM travel speeds and having an extra hydraulic cylinder for the return stroke. This means that by choosing this product, you will save energy and thus reduce your electricity bill.

2. The machine allows you to cast gold and silver metals and bars at a reasonable speed to meet market demands. It is equipped with a hydraulic power pack consisting of a plunger pump, safety valve, electronic control panel panel operated directional control valve and standard hydraulic accessories. For the most suitable features to meet your expectations, consider purchasing this product from a reputable manufacturer such as SuperbMelt.

Provide mature gold and silver casting lines

We will focus more on how to make gold and silver coins with the help of a press.
SuperbMelt has always been at the forefront when it comes to creating coins using the best technology. The machine is powerful enough to operate without special skills. Before you invest in this machine, it is vital to consider speaking with one of our dealers so we can help you understand the core features of the machine and how you can benefit from it. Even if you need to know something every now and then, it doesn't take a lot of time to get it done.

Our advantage

About SuperbMelt

1.Superb is a professional manufacturer and exporter of first-class precious metal melting, casting and forming equipment, which are used in the fields of precious metals, rapid prototyping, jewelry and art sculpture.

2. Our mission is to create the most innovative jewelry casting equipment
Manufactured in precious metals for maximum reliability and guaranteed best quality for your daily operations.

3. As a leading precious metal melting and casting solutions provider, providing timely technical support to our manufacturers is an important part of our service. With a strong technical support team of qualified and well-trained (in China) local technicians, we are dedicated to solving any problems you may encounter.

customer photo

Advancing an industry that is struggling with common sense means collaboration, dedication and a workforce built on shared values. Today, we are proud to be a major distributor of melting, casting and forming machinery in more than 30 countries.
