500KG green sand mixer muller foundry clay sand mixer Products from Qingdao bestech machinery

Product Details

Foundry Sand Mixer Machine Description

Batch type green sand Mixer are with modern requirements of sand preparation with increased rotary speed and adjustable pressure which creates best condition for all types of sand.

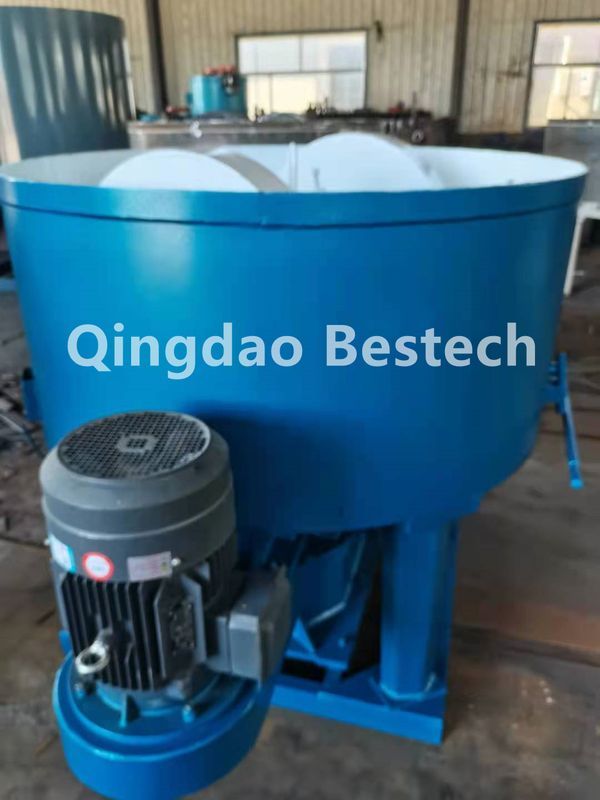

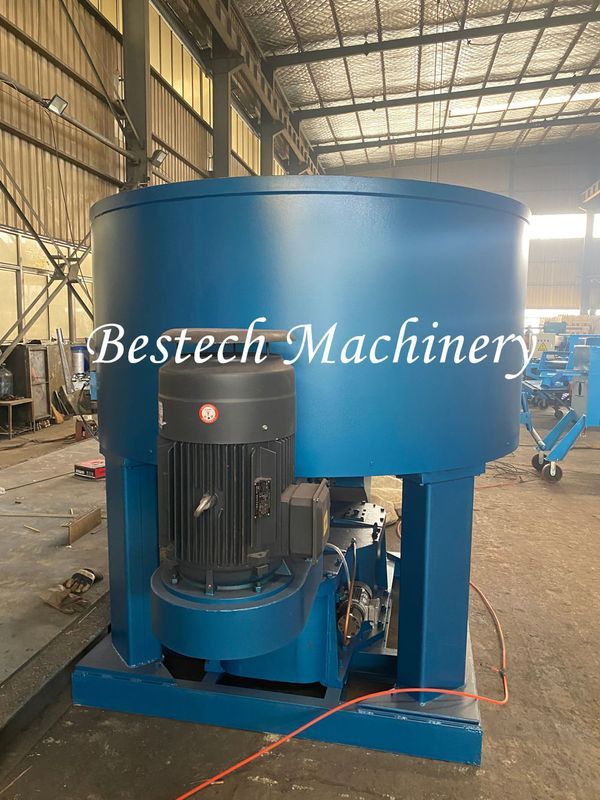

500kg Foundry Green Sand Mixer Machine Sand Mill

Batch type green sand mixer are of sturdy construction and easy to maintain. The adaptation of a successful procedure to modern requirement of sand preparation at increased rotary speed and adjustable pressure. The possibility of adjustment of the sand mixer pressure creates one of the best conditions for all type of sand. sand mixer pan is protected with wear resisting replaceable bottom plates and the side wall within the zone of the scrappers.

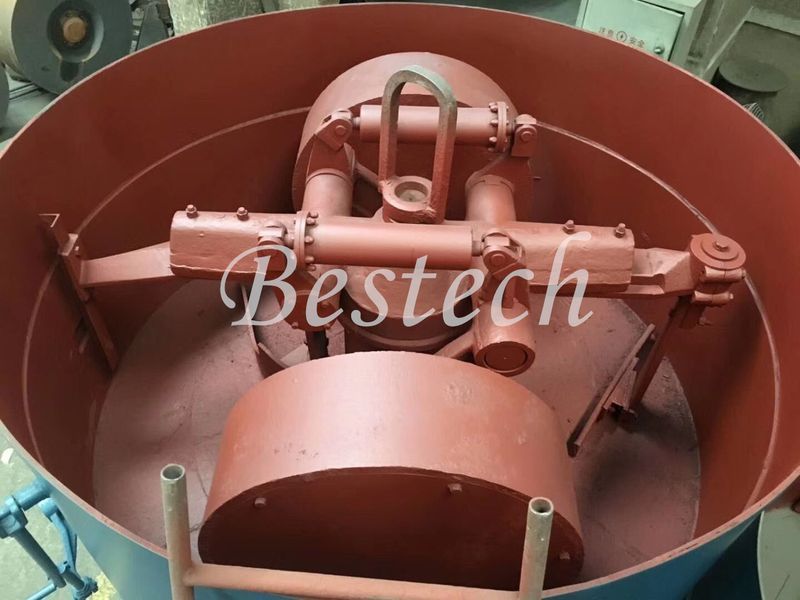

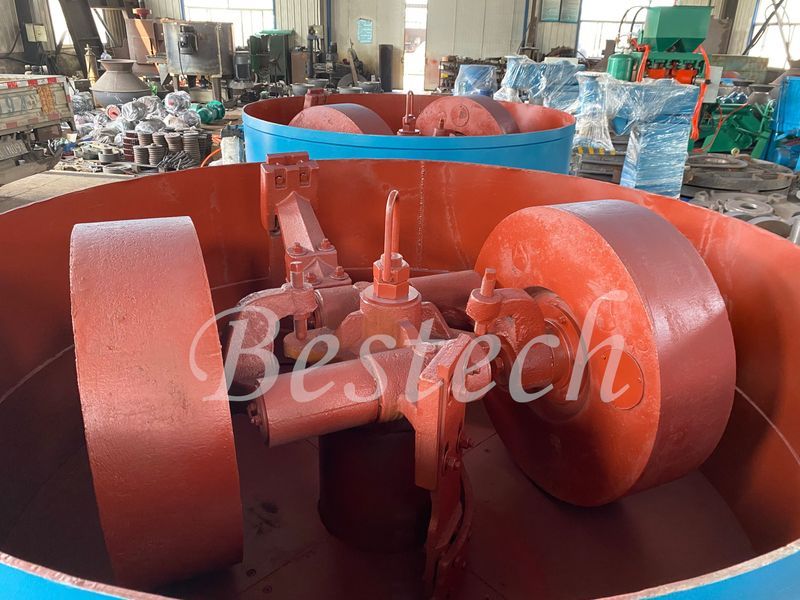

The scrappers of batch type green sand mixer are brazed with tungsten carbide tips. Crib fabricated from MS plates, are reinforced at the top and bottom to prevent any disturbance while machine is working.The crib is bolted to the pan base and is of detachable type for maintenance purpose. Special housing assembly ensures no leakage of sand and water from the pan.
Foundry Sand Mixer Machine Technical Parameter

Type	Plate diameter(mm)	Plus the material(kg/s)	Productivity (t/h)	Motor power(kw)	Spindle speed(rpm)	Single wheel pressure(N)	ApproximateWeight(kg)
S1105	500	20	0.1-0.2	1.5	35	0-10	80
S1106	600	40	0.3-0.5	2.2	35	0-10	100
S1108	800	80	0.8-1.2	3	35	0-60	350
S1110	1000	110	1.5-2.5	4	35	0-1100	900
S111A	1230	150	2-4	5.5	41	0-1100	1020
S1112	1225	150	3-5	4-6	35	0-1100	1237
S1113	1400	260	4-7	5-6	35	0-1200	1400
S1115	1500	350	5-6	11	25	0-1200	1900
S1116	1600	400	6-7	11	25	0-1200	2000
S114C	1820	500	7-8	15	25	0-5000	2600
S114D	1820	500	7-8	15	25	0-5000	2600
S1118C	1800	650	15	22	36	0-6000	5000
S1120J	2000	800	15-18	22	34	0-8000	5000
S1120D	2000	900	20	37	34	0-9000	6500
S1122	2200	1300	25	37	34	0-9000	7800
S1124	2400	1500	30	45	34	0-9000	8000

Packing and Shipping

FAQ
Q: How many days do you need to produce this foundry green sand mixer machine?
A: It depends on the size of the machine. Usually 15-25days for shot blasting machine and sand casting machine.45days for production line equipments.

Q: How to control your quality ?
A: First of all, we have professional technical team to design the machine. And we have strict production system, the quality inspection department will check the quality regularly.

For the smaller machine we will install the machine at our workshop to make sure it can work well.

For the bigger machine, we will install the machine for our customers until it can work well

Q: What's your machine quality guarantee?
A: Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.

Q: Can you instal the machine overseas?How long will it take?
A: YES, we have rich-experienced install team to instal the machine for our customers worldwide.
